Configure System Information
100
M4100 Series Managed Switch
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

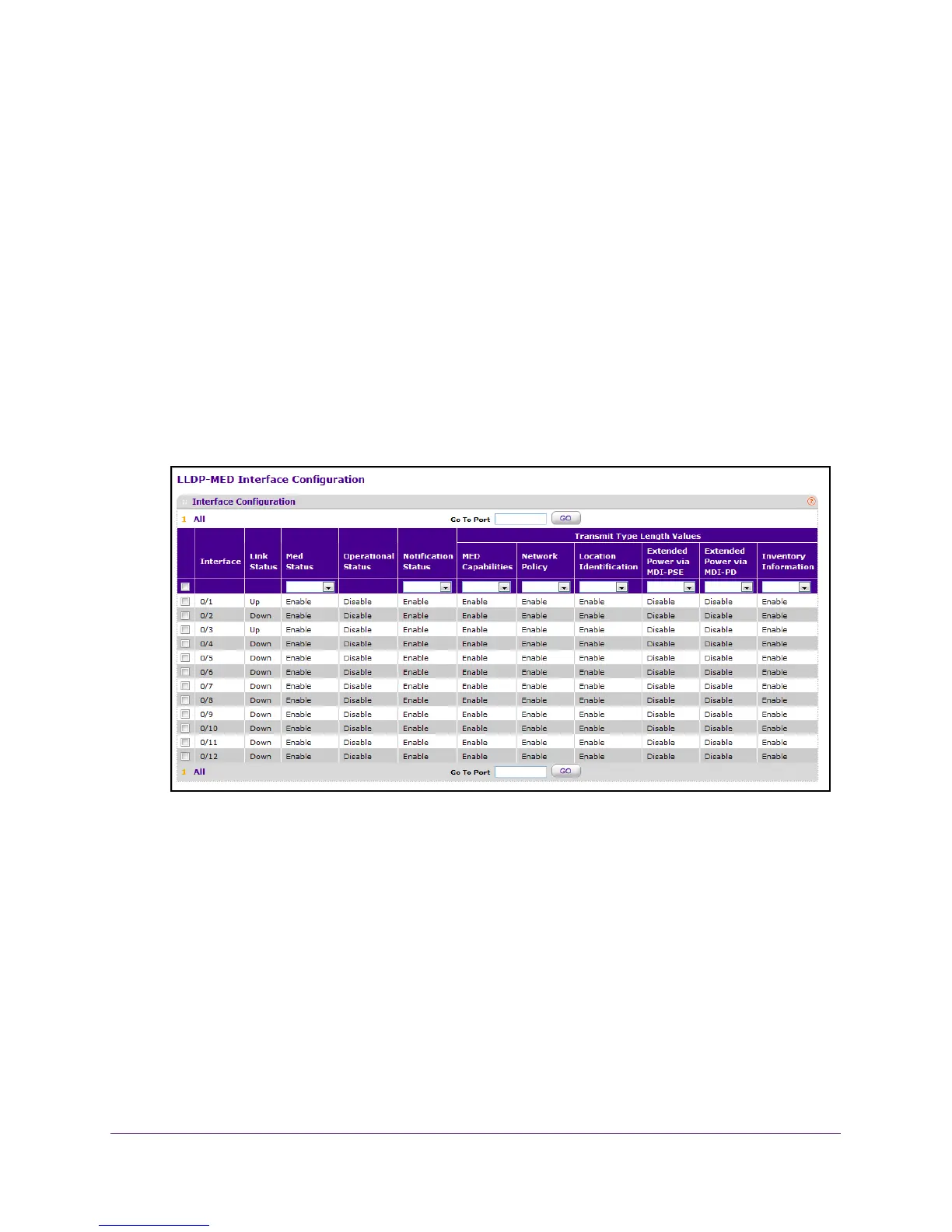

7. Select System
LLDP LLDP-MED Interface Configuration.
The screen displays the link status (whether the port is up or down) and the operational
status (whether LLDP-MED TLVs are transmitted or not on this interface).
8. Use Go To Port to enter the port in unit/slot/port format and click the Go button.
The entry corresponding to the specified port is selected.
9. Use Interface to specify the list of ports on which LLDP-MED - 802.1AB can be configured.
10. Use MED Status to specify whether LLDP-MED mode is enabled or disabled on this
interface.
11. Use Notification Status to specify the LLDP-MED topology notification mode of the
interface.
12. Use T
ransmit Type Length Values to specify which optional type length values (TLVs) in
the LLDP-MED are transmitted in the LLDP PDUs frames for the selected interface.
