NETGEAR M4100 Series User Manual

Configure Switching Information
144
M4100 Series Managed Switch
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Switching >

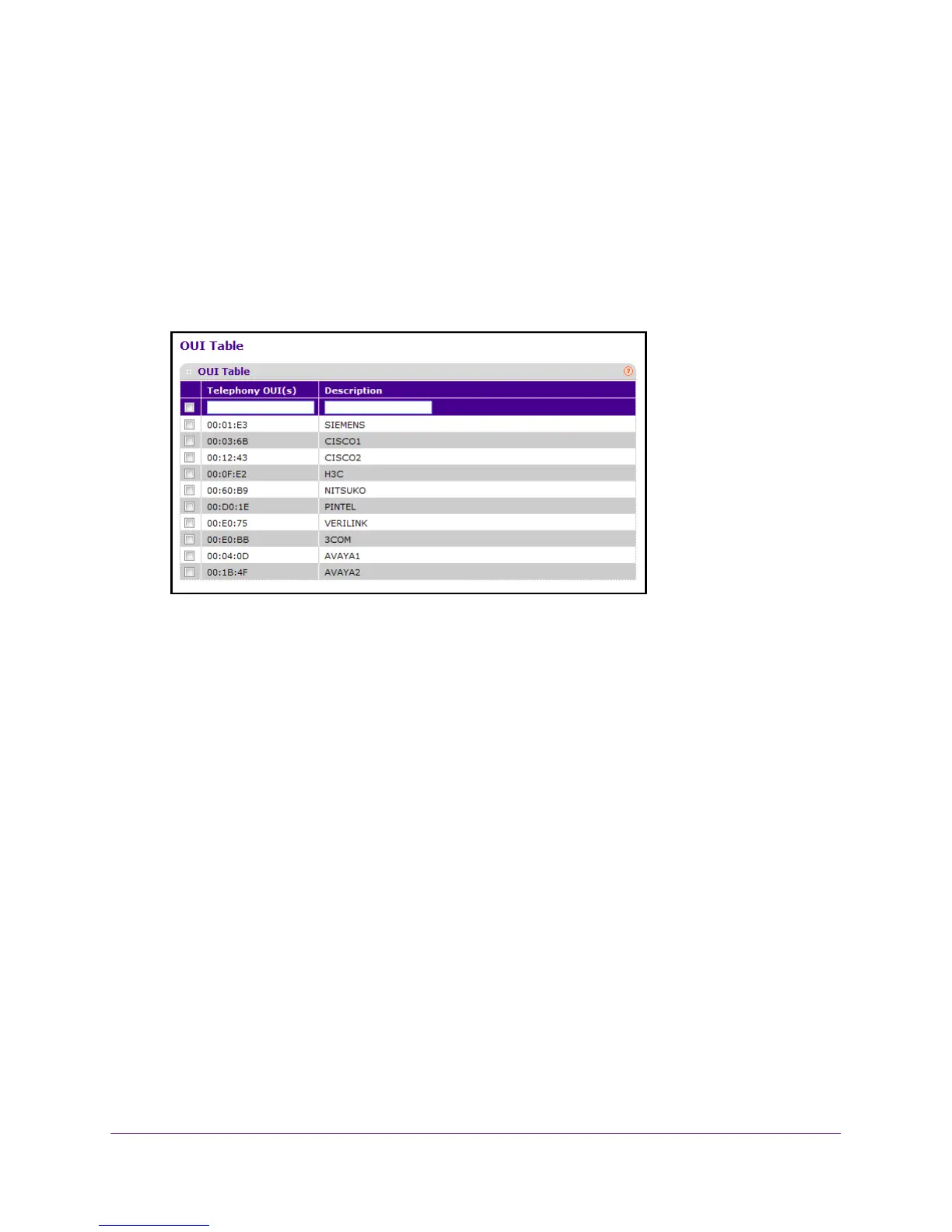

Auto-VoIP > OUI-based OUI Table.
8. Use Telephony OUI(s) to select the VoIP OUI prefix to be added in the format AA:BB:CC.
Up to 128 OUIs can be configured.
9. Use Description to enter the description for the OUI.
The maximum length of description is 32 characters.
The following OUIs are present in the configuration by default:
• 00:01:E3 - SIEMENS
• 00:03:6B - CISCO1
• 00:12:43 - CISCO2
• 00:0F:E2 - H3C
• 00:60:B9 - NITSUKO
• 00:D0:1E - PINTEL
• 00:E0:75 - VERILINK
• 00:E0:BB - 3COM
• 00:04:0D -
AVAYA1
• 00:1B:4F -
AVAYA2
10. T
o add a new telephony OUI entry, click the ADD button.
11. T
o delete a created entry, click the DELETE button.
12. Click the APPL
Y button.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
