Configure Switching Information
153
M4100 Series Managed Switch
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

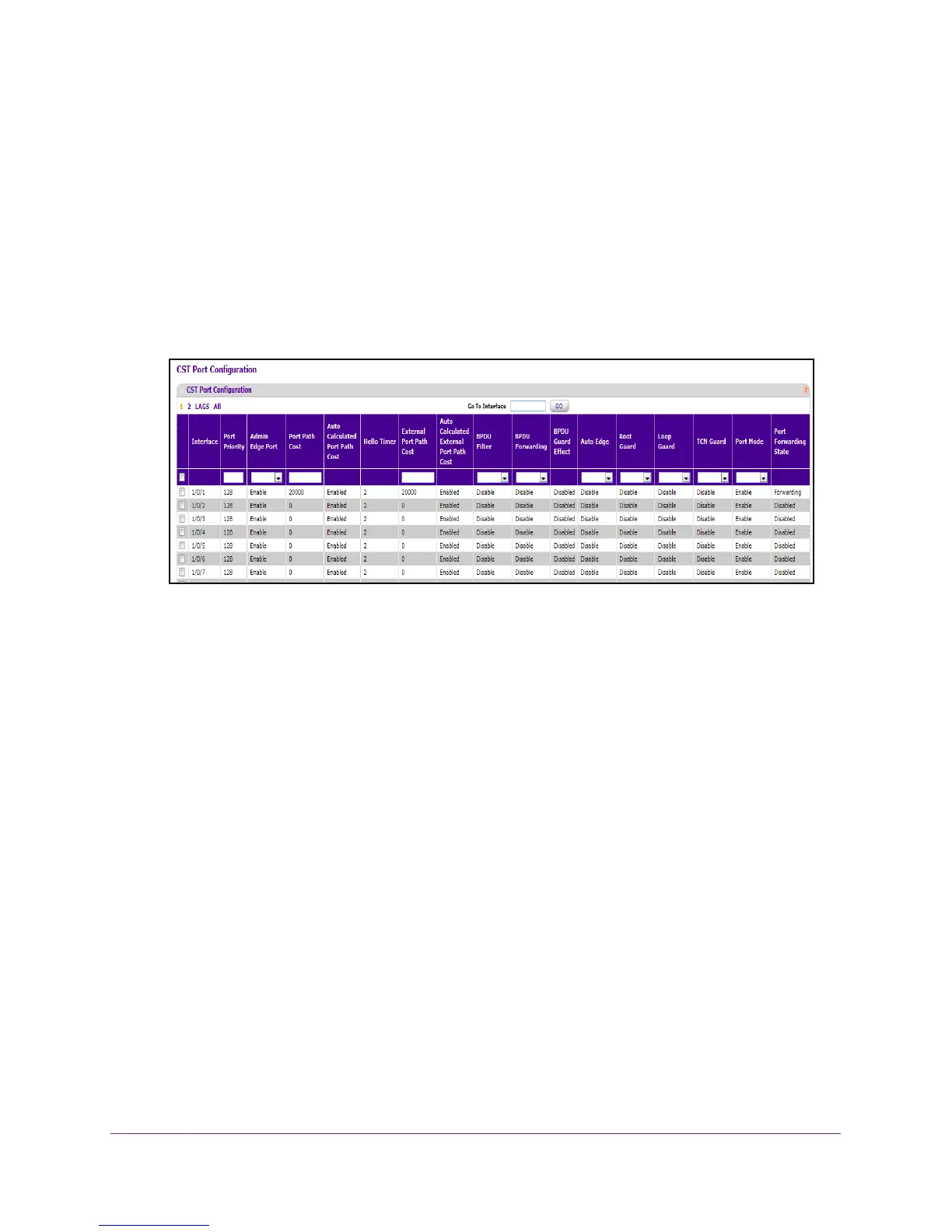

7. Select Switching > STP >
Advanced CST Port Configuration.
8. Select an Interface check box to select one of the physical or port channel interfaces
associated with VLANs associated with the CST.
9. Use Port Priority to specify the priority for a particular port within the CST
.
The port priority is set in multiples of 16. For example if the priority is any value between
0 and 15, it is set to 0. If you try to set it to any value between 16 and (2*16–1) it is set to
16 and so on.
10. Use Admin Edge Port to specify if the specified port is an edge port within the CIST
.
It takes a value of TRUE or FALSE, where the default value is FALSE.
11. Use Port Path Cost to set the path cost to a new value for the specified port in the common
and internal spanning tree.
It takes a value in the range of 1 to 200000000.
12. Use External Port Path Cost to set the external path cost to a new value for the specified
port in the spanning tree.
It takes a value in the range of 1 to 200000000.
13. For BPDU Filter, select Enable or Disable.
This configures the BPDU filter, which filters the BPDU traffic on this port when STP is
enabled on this port.
14. Select the BPDU Flood Disable or Enable radio button.
