Configure Switching Information
171
M4100 Series Managed Switch
To configure IGMP snooping querier:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Switching

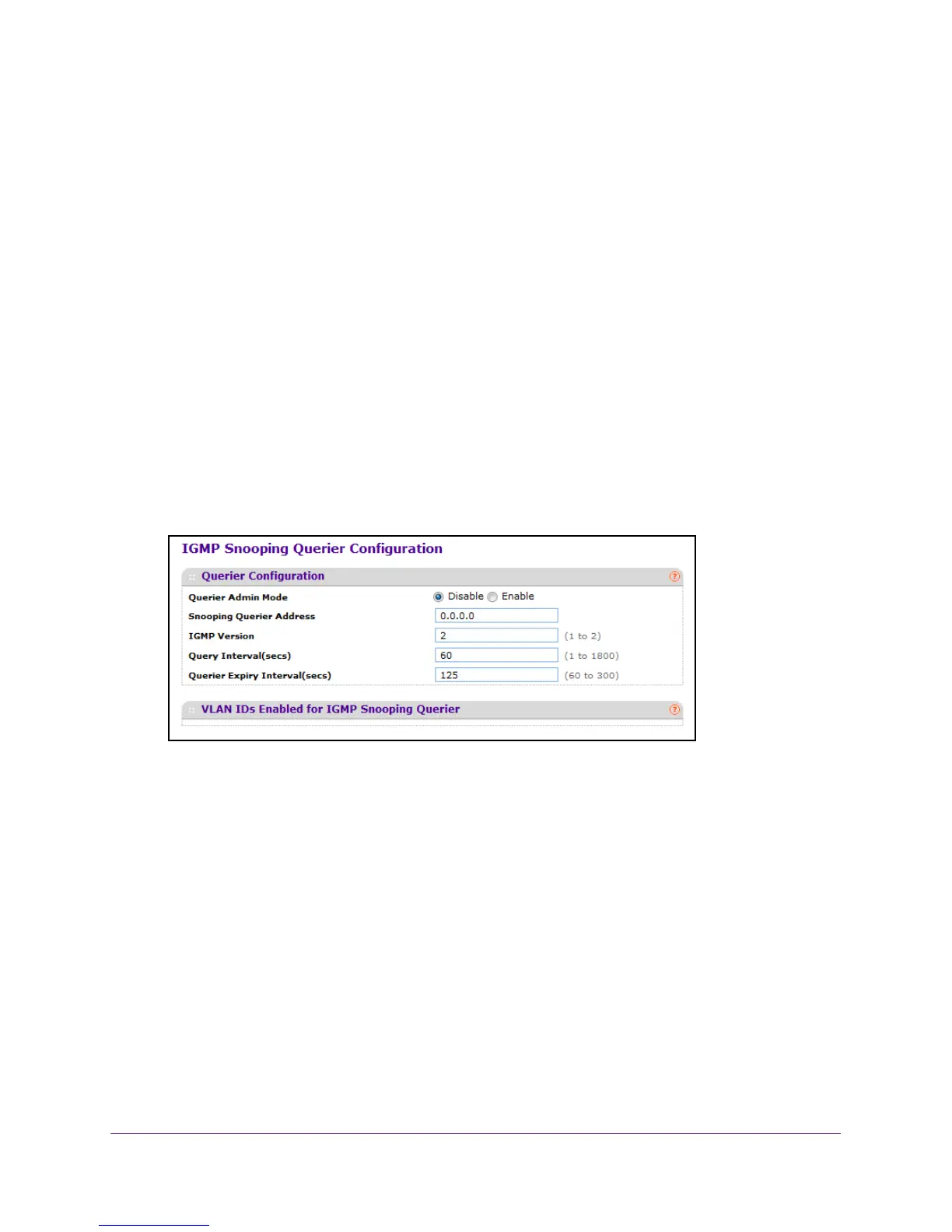

Multicast IGMP Snooping Querier Configuration.
8. Use Querier Admin Mode to select the administrative mode for IGMP snooping for the
switch.
The default is Disable.
9. Use Querier IP
Address to specify the snooping querier address to be used as the source
address in periodic IGMP queries.
This address is used when no address is configured on the VLAN on which query is being
sent.
10. Use IGMP V
ersion to specify the IGMP protocol version used in periodic IGMP queries.
11. Use Query Interval (secs) to specify the time interval in seconds between periodic queries
sent by the snooping querier
.
The query interval must be a value in the range of 1 and 1800. The default value is 60.
12. Use Querier Expiry Interval (secs) to specify the time interval in seconds after which the
last querier information is removed.
