Configure Quality of Service
246
M4100 Series Managed Switch
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select QoS
DiffServ Advanced Diffserv Configuration.
8. Select the DiffServ Admin Mode Disable or Enable radio button:
Enable. Dif
ferentiated services are active.
Disable.
The DiffServ configuration is retained and can be changed, but it is not
active.
9. Click the APPL
Y button.
The changes are applied to the system.

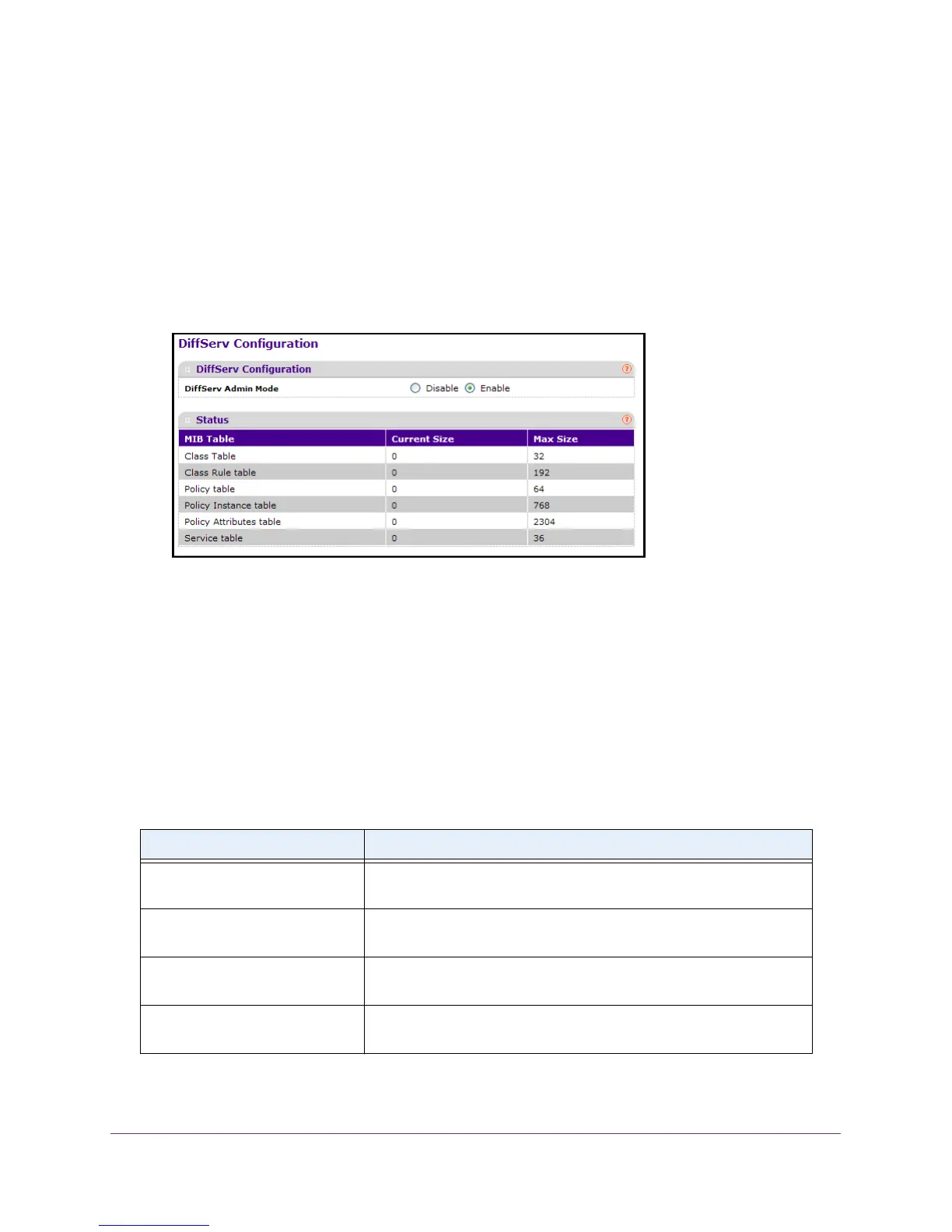

The following table describes the information displayed in the Status table on the DiffServ
Configuration screen:
Table 73. Diffserv Configuration
Field Description
Class table Displays the number of configured DiffServ classes out of the total
allowed on the switch.
Class Rule table Displays the number of configured class rules out of the total allowed
on the switch.
Policy table Displays the number of configured policies out of the total allowed on
the switch.
Policy Instance table Displays the number of configured policy class instances out of the total
allowed on the switch.
