Configure Quality of Service
251
M4100 Series Managed Switch
To configure a DiffServ class:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select QoS

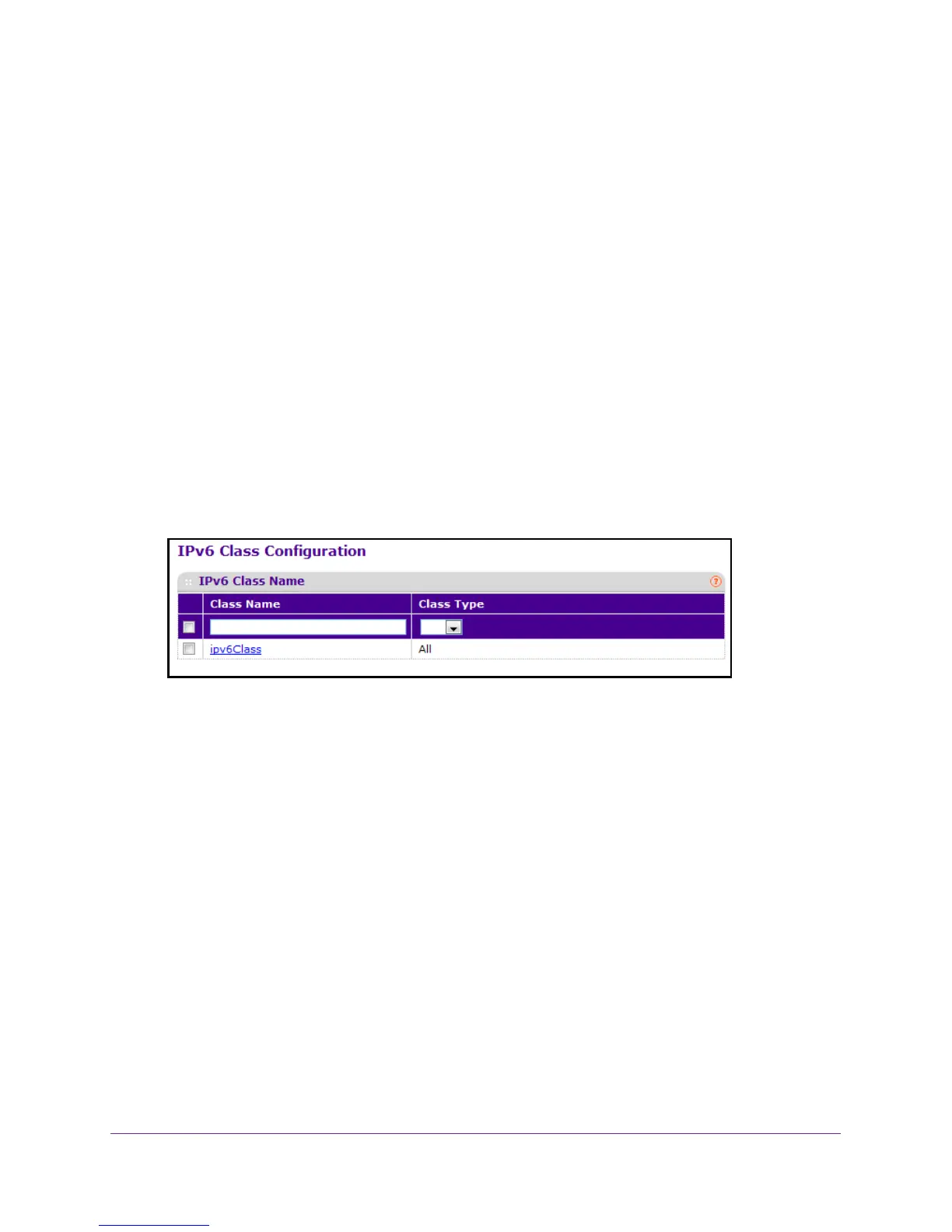

DiffServ Advanced IPv6 Class Configuration.
8. To create a new class, enter a class name, select the class type, and click the ADD button.
This field also lists all the existing DiffServ class names, from which one can be selected.
The switch supports only the Class T
ype value All, which means all the various match
criteria defined for the class should be satisfied for a packet match. All signifies the logical
AND of all the match criteria. You can select the class type only when you are creating a
new class. After you create the class, this field this becomes a nonconfigurable field
displaying the class type that you selected.
9. T
o rename an existing class, select the check box next to the configured class, update the
name, and click the APPLY button.
10. T
o remove a class, click the check box beside the class name, then click the DELETE
button.
11. Click the REFRESH button to refresh the screen with the most current data from the switch.
