Configure Quality of Service
256
M4100 Series Managed Switch
9. Select the queue to which packets of this policy class are assigned.
This is an integer value in the range 0 to 7.

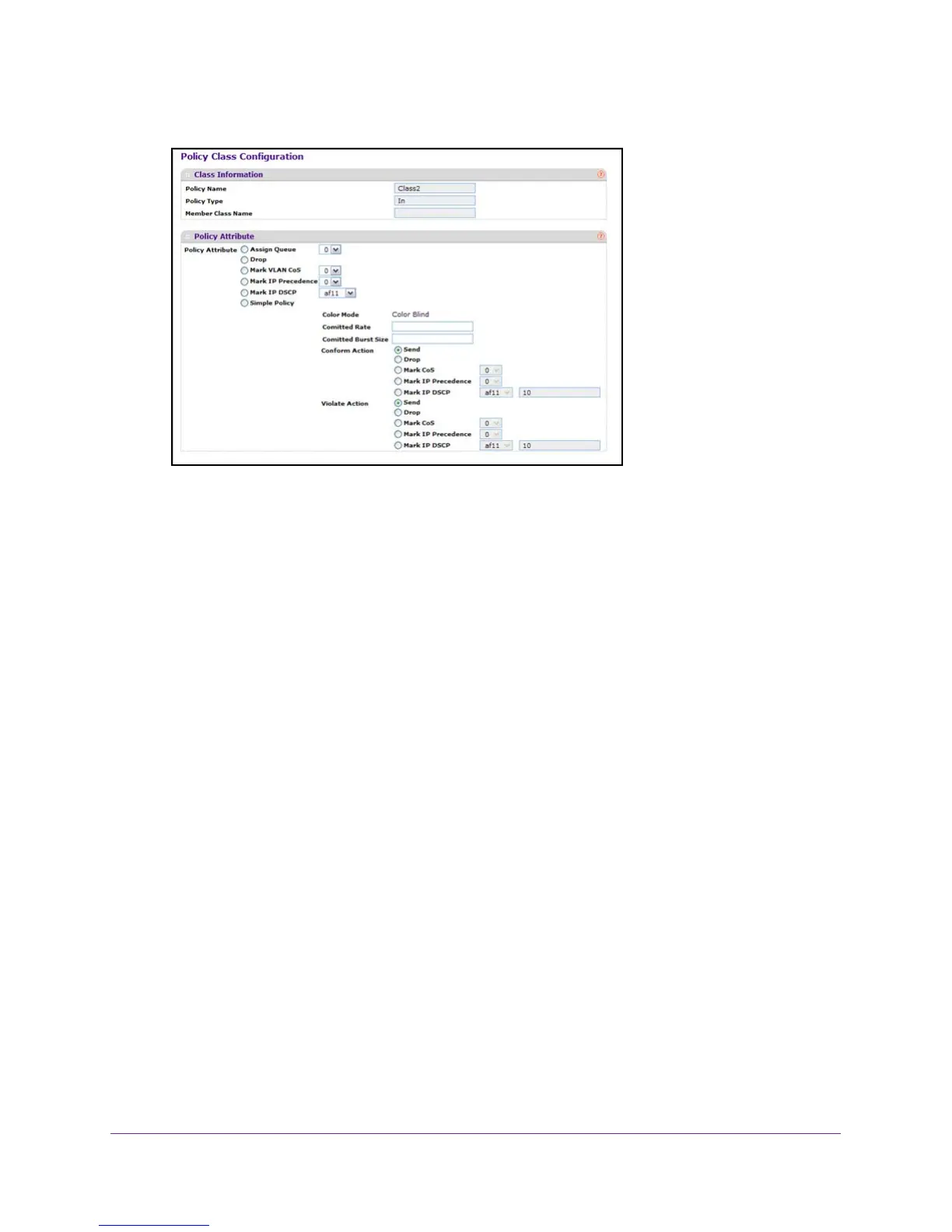

10. Configure the policy attributes:
• Drop. Select the Drop radio button. This flag indicates that the policy attribute is
defined to drop every inbound packet.
• Mark VLAN CoS.
This is an integer value in the range from 0 to 7 for setting the VLAN
priority.
• Mark IP Precedence.
This is an IP Precedence value in the range from 0 to 7.
• Mark IP DSCP.
This lists the keywords for the known DSCP values from which one
can be selected. The list includes other as an option for the remaining values.
• Simple Policy. Use this attribute to establish the traf
fic policing style for the specified
class. This command uses single data rate and burst size resulting in two outcomes
(conform and violate).
11. If you select the Simple Policy attribute, you can configure the following fields:
• Color Mode.
This lists the color mode. The default is Color Blind.
• Color Blind
• Color A
ware
Color Aware mode requires the existence of one or more color classes that are valid
for use with this policy instance.
A valid color class contains a single, nonexcluded
match criterion for one of the following fields (provided the field does not conflict with
the classifier of the policy instance itself):
• CoS
• IP DSCP
• IP Precedence
