8. Scroll down to Device Status.
9. To refresh the switch information, click the REFRESH button.

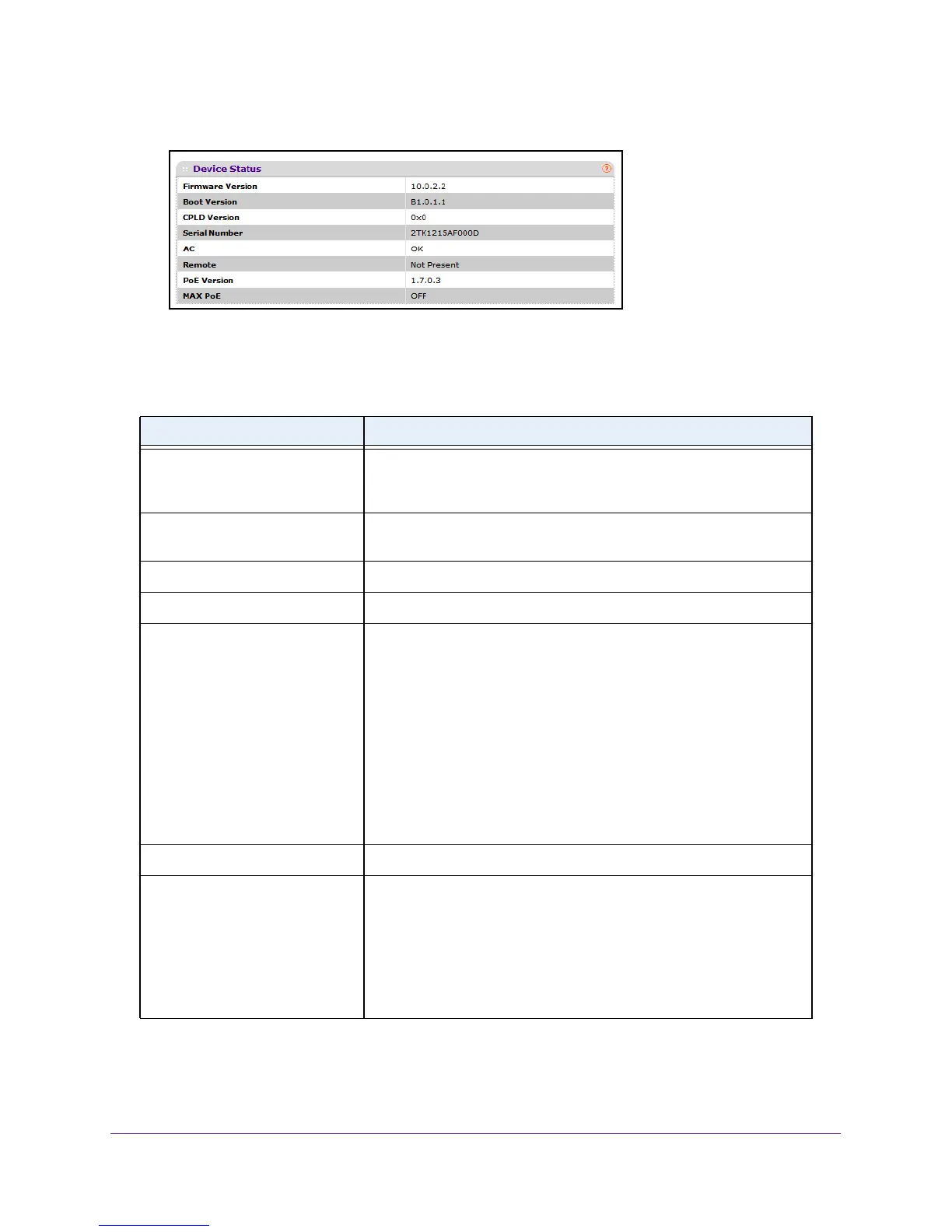

The following table describes the Device Status information.
Table 4. Device status
Field Description
Firmware Version The release.version.maintenance number of the code currently running
on the switch. For example, if the release was 1, the version was 2, and
the maintenance number was 4, the format would be 1.2.4.
Boot Version The version of the boot code that is in the flash memory to load the
firmware into the memory
.
CPLD Version The version of the software for CPLD.
Serial Number The serial number of this switch.
AC, Remote Indicates the status of the appropriate power module in each unit.
Status can be any of the following:
• OK. Power module is present and functioning properly
.
• Not Present. Power module is not present in the slot.
• No power. Power module is present but not connected to the
power source.
• Not powering. Power module is present and connected but the
switch uses another power source.
• Incompatible. Power module is present but incompatible.
• Failed. Power module is present, but power cable is not plugged in
or a bad cable is plugged n.
PoE Version Version of the PoE controller FW image.
MAX PoE Indicates the status of maximum PoE power available on the switch as
follows:
• ON. Indicates less than 7W of PoE power available for another
device.
• OFF. Indicates at least 7W of PoE power available for another
device.
• N/A. Indicates that PoE is not supported by the unit.
