Manage Device Security
352
M4100 Series Managed Switch
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Security

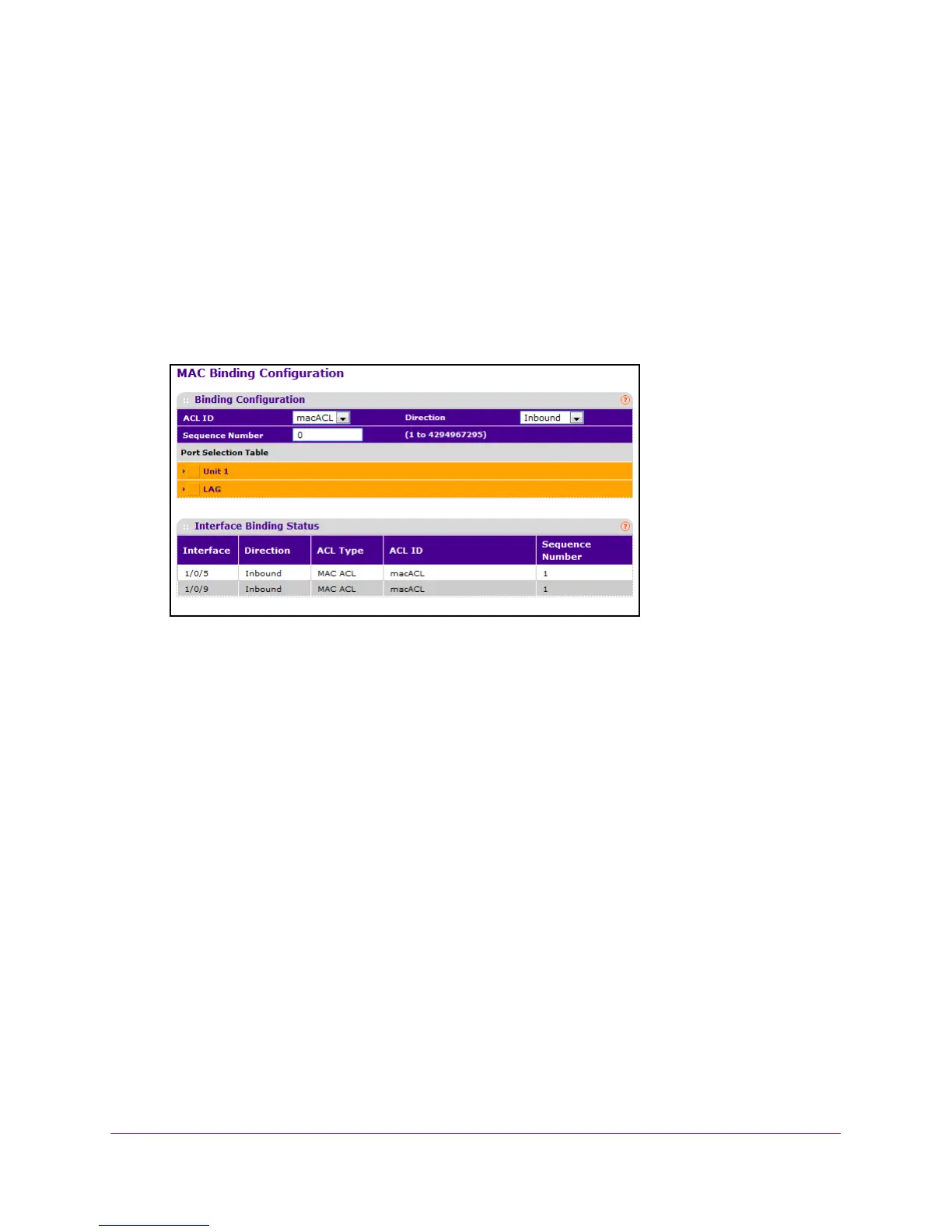

ACL > Basic MAC Binding Configuration.
8. Select an existing MAC ACL from the ACL ID menu.
You can select one and bind it to the interfaces you want. The packet filtering direction for
ACL is Inbound, which means the MAC
ACL rules are applied to traffic entering the port.
9. Specify an optional sequence number to indicate the order of this access list relative to other
access lists already assigned to this interface and direction.
A low number indicates high precedence order. If a sequence number is already in use
for this interface and direction, the specified access list replaces the currently attached
access list using that sequence number
. If you do not specify the sequence number, a
sequence number that is one greater than the highest sequence number currently in use
for this interface and direction is used. The valid range is 1–4294967295.
10. Click the appropriate orange bar to expose the available ports or LAGs.
The Port Selection Table provides a list of all available valid interfaces for ACL binding. All
nonrouting physical interfaces, VLAN interface, and interfaces participating in LAGs are
listed.
• T
o add the selected ACL to a port or LAG, click the box directly below the port or LAG
number so that an X appears in the box.
• T
o remove the selected ACL from a port or LAG, click the box directly below the port
or LAG number to clear the selection. An X in the box indicates that the ACL is
applied to the interface.
