Monitoring the System
401
M4100 Series Managed Switch
3. Launch a web browser.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Monitoring

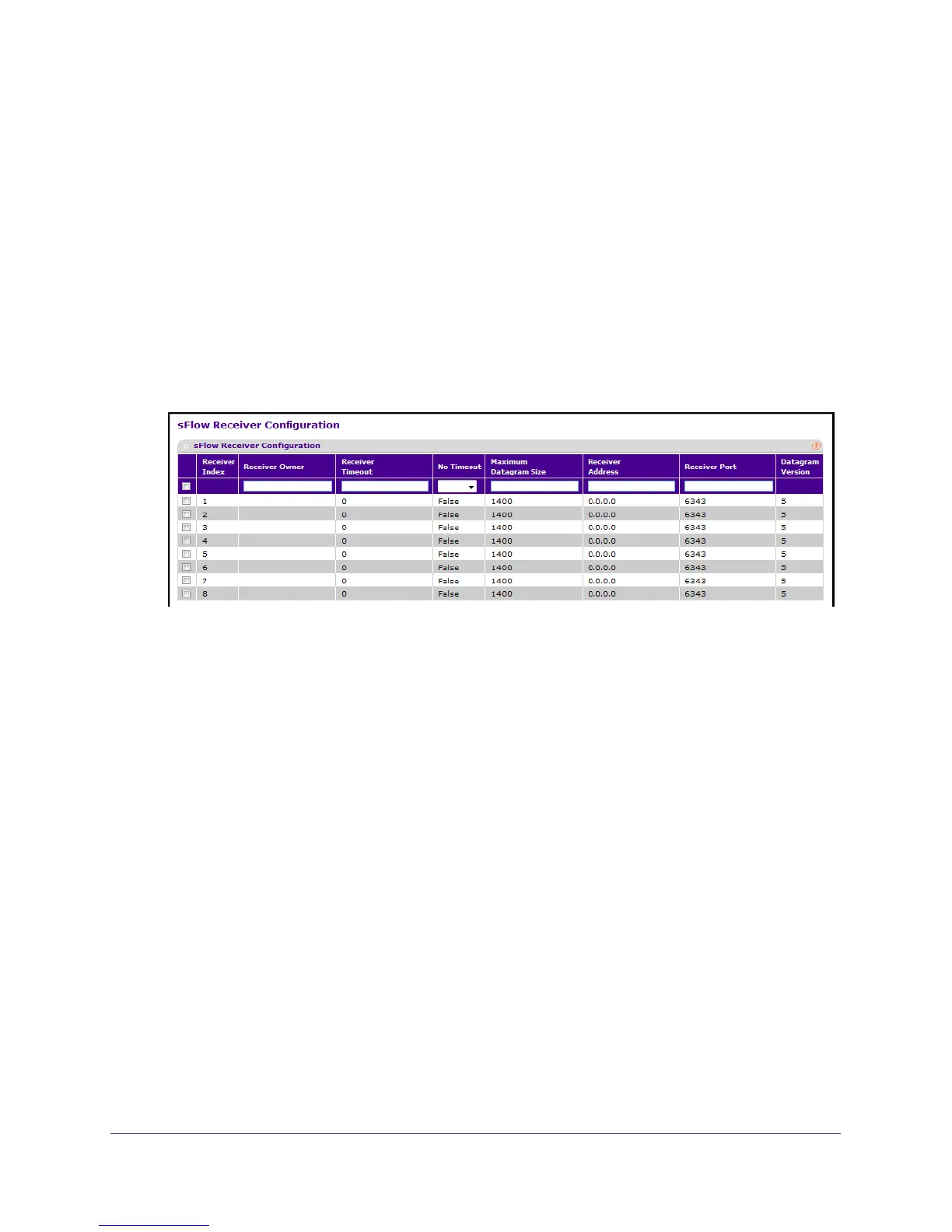

sFlow Advanced sFlow Receiver Configuration.
8. Receiver Owner. The entity making use of this sFlowRcvrTable entry.
The empty string indicates that the entry is currently unclaimed and the receiver
configuration is reset to default values.
An entity wishing to claim an sFlowRcvrTable
entry must ensure that the entry is unclaimed before trying to claim it. The entry is
claimed by setting the owner string. The entry must be claimed before any changes can
be made to other sampler objects.
9. Receiver T
imeout. The time (in seconds) remaining before the sampler is released and
stops sampling.
A management entity wanting to maintain control of the sampler is responsible for setting
a new value before the old one expires.
The valid range is 0 to 2147483647. A value of
zero sets the selected receiver configuration to its default values.
10. Use No T
imeout to select True or False from the menu to set the no time-out sampling for
the receiver.
Sampling is not stopped until 'No Timeout' selected entry is True. The default value is
False.
11. Maximum Datagram Size.
The maximum number of data bytes that can be sent in a single
sample datagram.
Set this value to avoid fragmentation of the sFlow datagrams. The default value is 1400.
The allowed range is 200 to 91
16.
