GENESYS User Manual Issue 1
LS
Sends pink noise only to the loudspeaker outputs.
Any audio feeding the loudspeakers will be cut before the pink noise is
sent, and then reinstated once pink noise is switched off.
OSC FRQ
Sets the frequency of the TONE oscillator.
The stepped values are:
• OFF
• 50 Hz
• 440 Hz
• 1 KHz
• 10 KHz
• 15 KHz

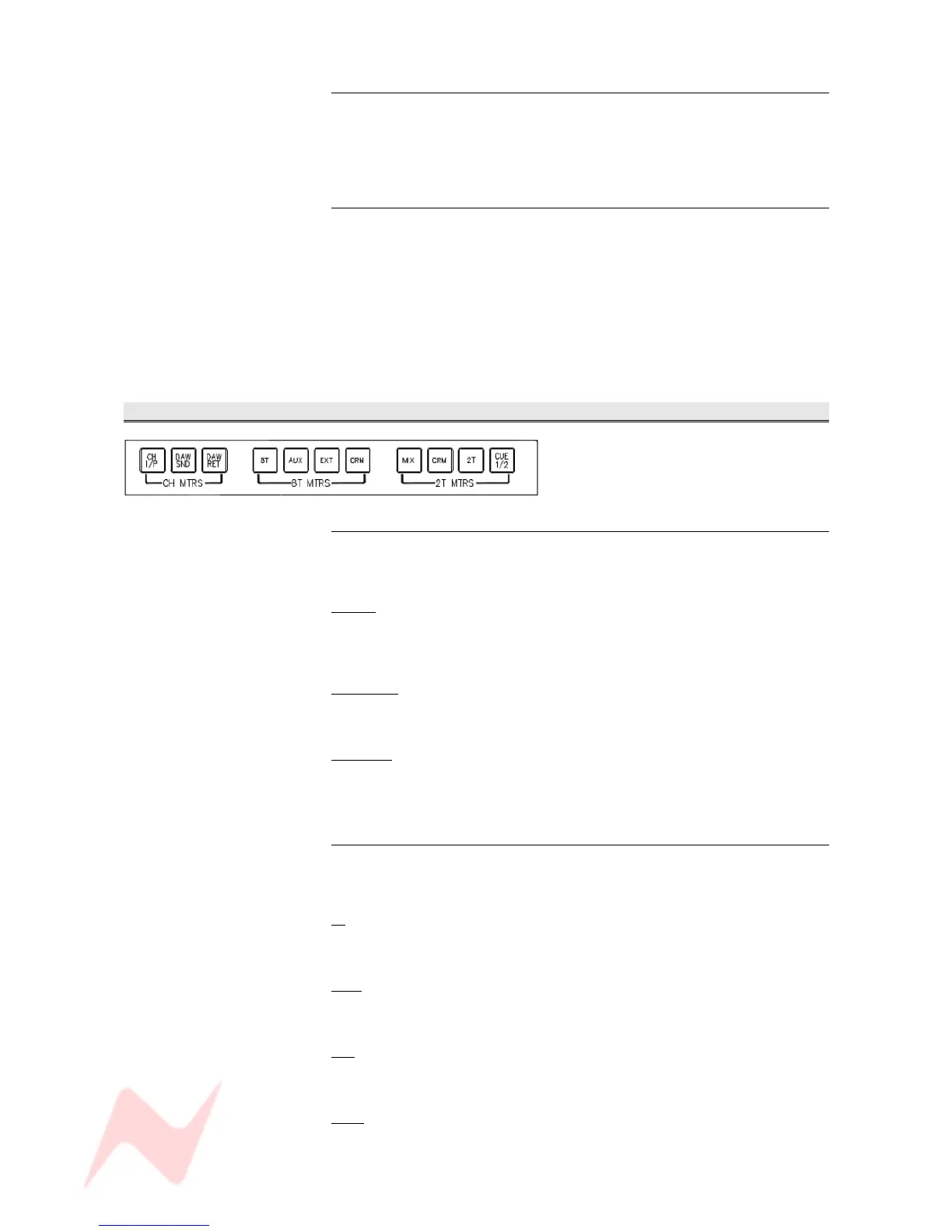

METERS Section
CH MTRS
Lights yellow and selects the feeds to the Channel Meters
(these buttons are latching and interlocked)
CH I/P
Lights yellow and meters the Channel Inputs, which is Pre- any processing
that may be on the path.
DAW SND
Lights red and meters the DAW Sends.
DAW RET
Lights green and meters the DAW Returns.
8T MTRS
Lights yellow and selects the feeds to the 8T meters.
(these buttons are latching and interlocked)
8T
Selects the 8T Outputs to the 8T meters.
AUX
Selects the Aux Outputs to the 8T meters.
EXT
Selects the 6-wide External inputs to the 8T meters.
CRM
Selects the 6-wide Control Room Monitor feed, pre- the loudspeaker level
