Neve Genesys - Monitor Insert Send; Monitor Insert Return

GENESYS User Manual Issue 1

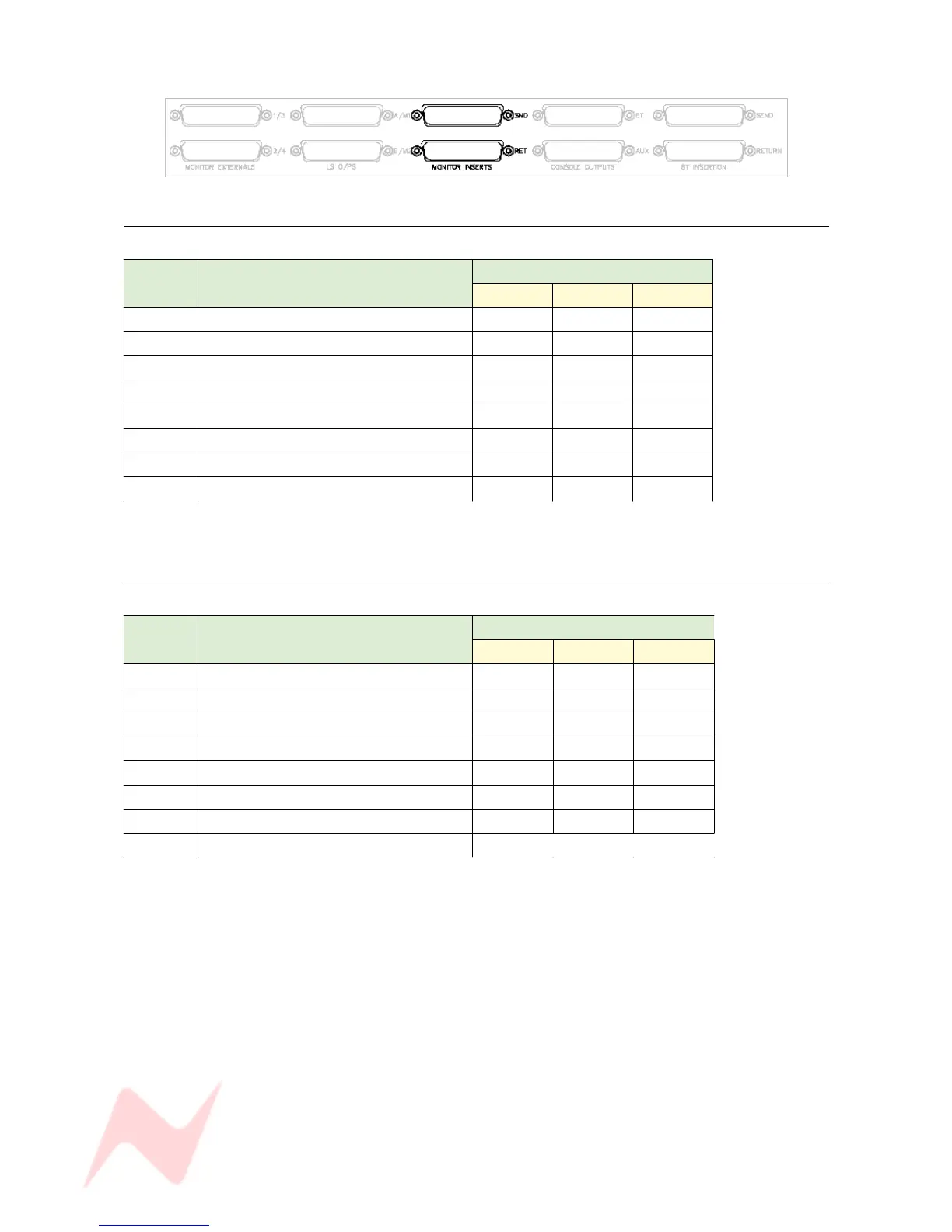

Monitor Insert Send
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 Monitor Left Insert Send 24 12 25
2 Monitor Right Insert Send 10 23 11
3 Monitor Centre Insert Send 21 9 22
4 Monitor Sub Insert Send 7 20 8
5 Monitor Left Surround Insert Send 18 6 19
6 Monitor Right Surround Insert Send 4 17 5
7 Mix Left Output * 15 3 16
8 Mix Right Output * 1 14 2
* Mix Left and Right are wired here so that the Mix can be presented on a customer patch as well.
Monitor Insert Return
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 Monitor Left Insert Return 24 12 25
2 Monitor Right Insert Return 10 23 11
3 Monitor Centre Insert Return 21 9 22
4 Monitor Sub Insert Return 7 20 8
5 Monitor Left Surround Insert Return 18 6 19
6 Monitor Right Surround Insert Return 4 17 5
7 --- not used --- 15 3 16
8 --- not used --- 1 14 2
- 86 -
