GENESYS User Manual Issue 1

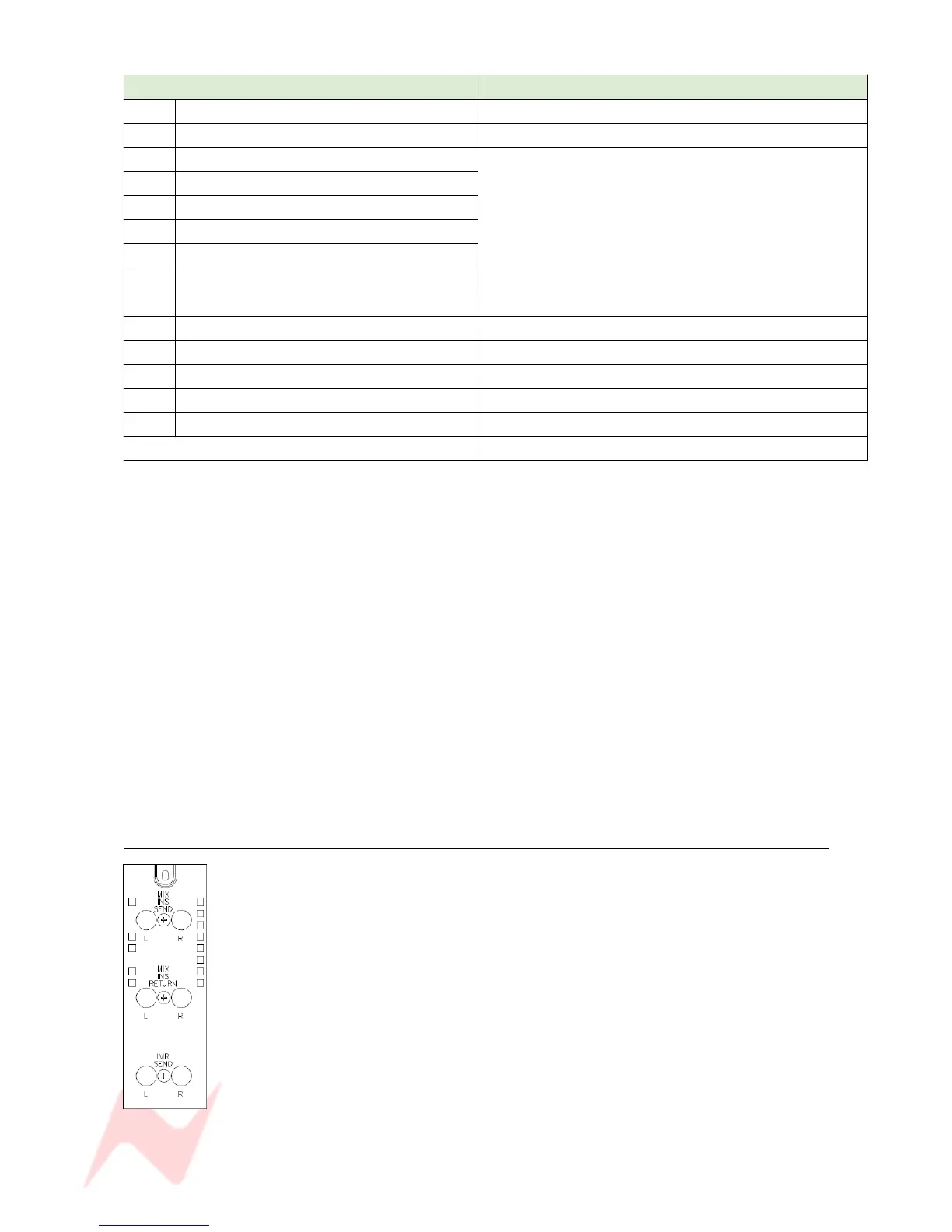

Pin Signal Notes
1 Red Light relay contact Makes contact with (2) when Red Light switch is On.
2 Red Light relay wiper Normally open contact.
3 Remote red light external input
These pins all require closure to pin 15 to operate.
4 Remote Cue 1 external input
5 Remote Cue 2 external input
6 Remote Return Talkback On
7 Remote Slate Control Input
8 Remote Loudspeaker Cut Control Input
9 Remote Loudspeaker Dim Control Input
10 Producers Talkback Microphone Input Hi
11 Producers Talkback Microphone Input Lo
12 Ground Screen
13 Spare I/O
14 Current limited (100 mA) 4.7v source
15 Ground (digital)
All inputs are pulled up to +5volts via a 3k9 resistor and have clamp
diodes to protect internal circuitry.
Spare I/O (Pin 13) is a customising pin used to allow external control of
function(s).
It can also be configured as an Output to control external equipment.
Use of Pin 13 will need further consultation with Neve Service
Dept.
Monitor Board 2 also allows the loudspeakers for the Down-Mix to be
trimmed (with +3dB to -12dB of trim for each of the C, S, LS and RS
paths).
The trim pot for the PROD MIC offers 0dB to +40dB of trim on the
Producers Mic.
The REM DIM trim pot offers 0dB to -40dB of trim whenever the Dim is
triggered externally.
Monitor Board 3 (Mix Insert)
This board contains the Left and Right sends and returns for the Main Mix
Insert.
It also contains the Insert Mix Return Left & Right Sends.
This is where the Insert can be patched across the Main Mix signal and
between 30% and 100% of the Return can be applied.
- 79 -
