GENESYS User Manual Issue 1

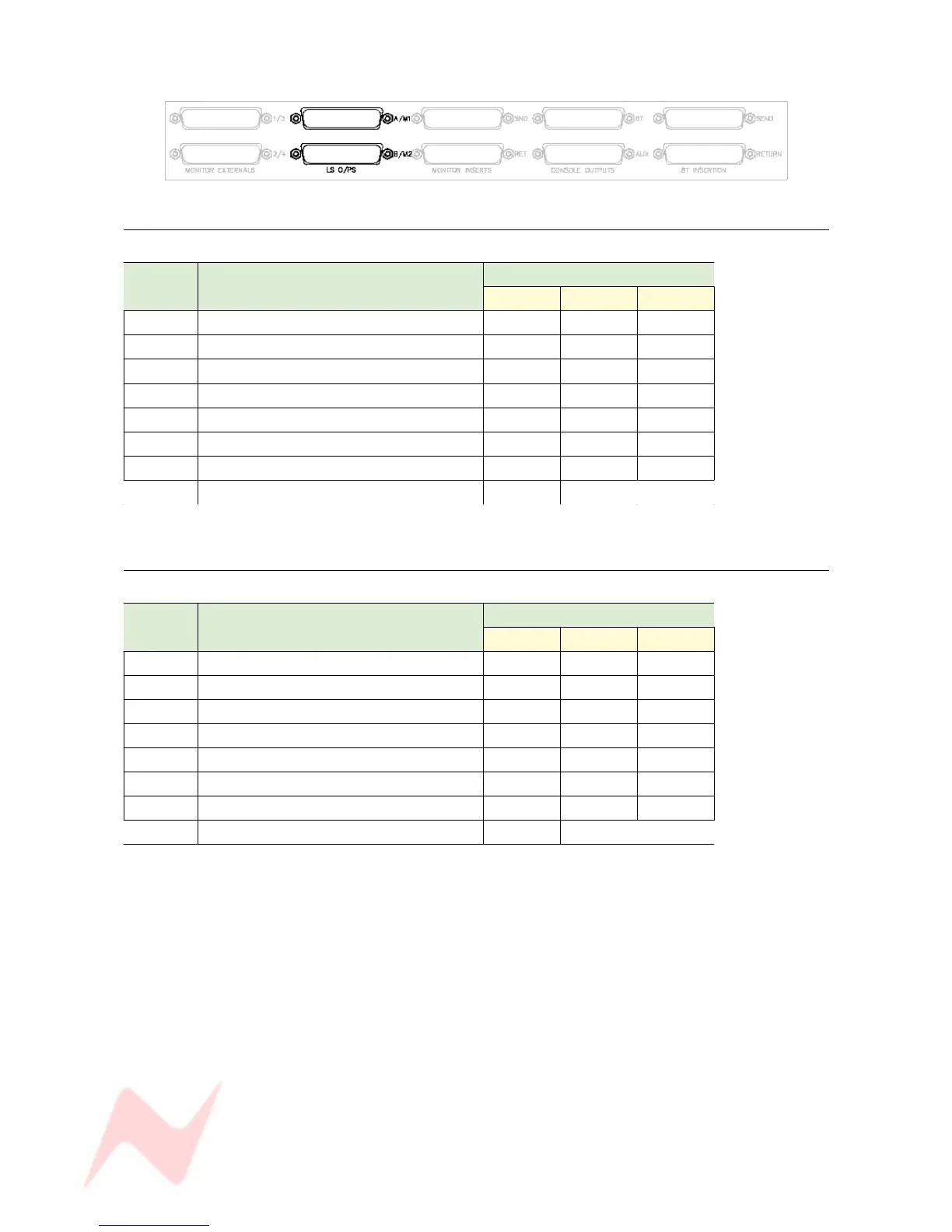

Loudspeaker Outputs A & M1

(25-way D-type)

Signal Name

Hi Lo Screen

1 Loudspeaker A, Left Output 24 12 25

2 Loudspeaker A, Right Output 10 23 11

3 Loudspeaker A, Centre Output 21 9 22

4 Loudspeaker A, Sub Output 7 20 8

5 Loudspeaker A, Left Surround Output 18 6 19

6 Loudspeaker A, Right Surround Output 4 17 5

7 Loudspeaker M1, Left Output 15 3 16

8 Loudspeaker M1, Right Output 1 14 2

Loudspeaker Outputs B & M2

(25-way D-type)

Signal Name

Hi Lo Screen

1 Loudspeaker B, Left Output 24 12 25

2 Loudspeaker B, Right Output 10 23 11

3 Loudspeaker B, Centre Output 21 9 22

4 Loudspeaker B, Sub Output 7 20 8

5 Loudspeaker B, Left Surround Output 18 6 19

6 Loudspeaker B, Right Surround Output 4 17 5

7 Loudspeaker M2, Left Output 15 3 16

8 Loudspeaker M2, Right Output 1 14 2

- 85 -
