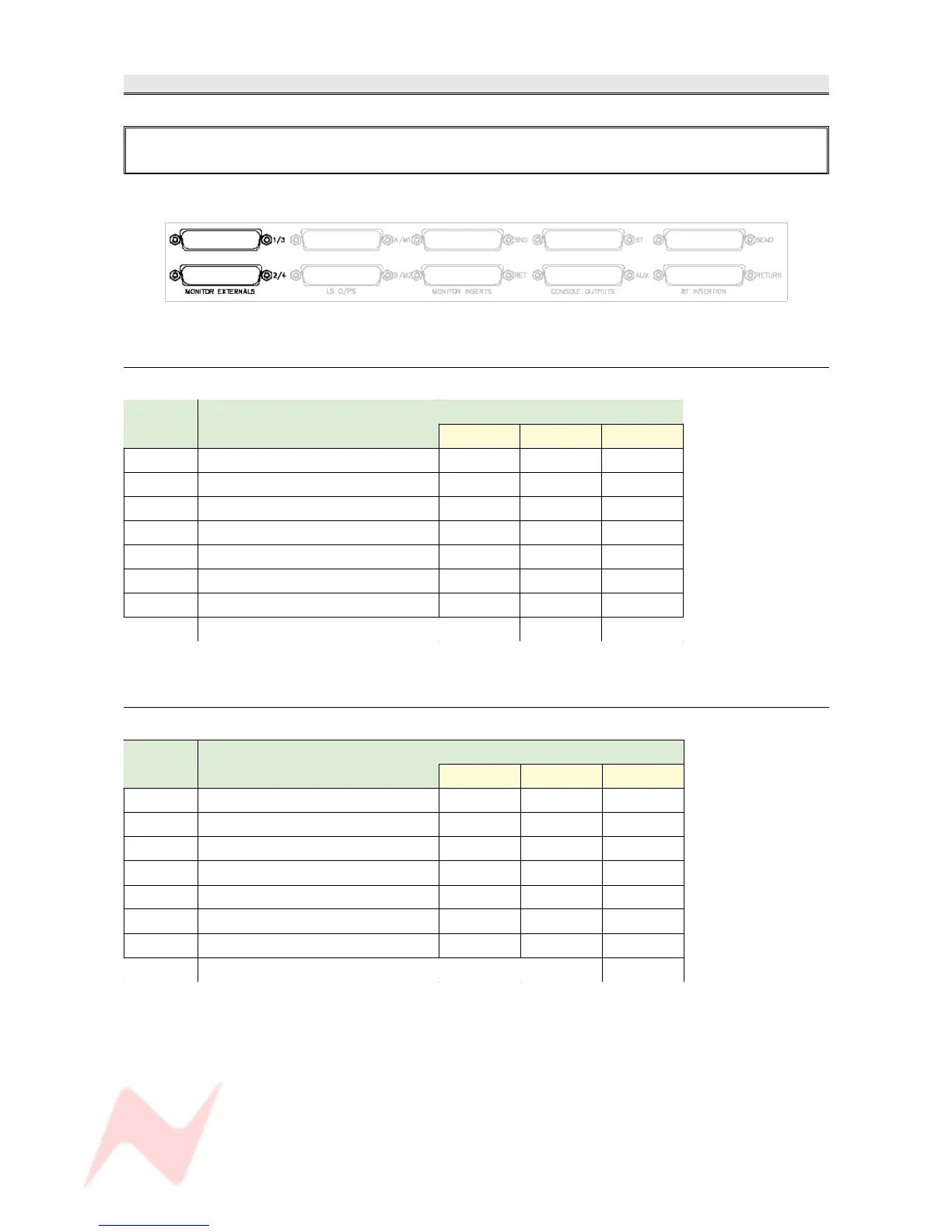

Monitor Section Connectors
The five pairs of D-type connectors shown here will be present
on every console, regardless of console size.
Monitor External Inputs 1 & 3
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 External 1 Input Left 24 12 25
2 External 1 Input Right 10 23 11
3 External 1 Input Centre 21 9 22
4 External 1 Input Sub 7 20 8
5 External 1 Input Left Surround 18 6 19
6 External 1 Input Right Surround 4 17 5
7 External 3 Input Left 15 3 16
8 External 3 Input Right 1 14 2
Monitor External Inputs 2 & 4
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 External 2 Input Left 24 12 25
2 External 2 Input Right 10 23 11
3 External 2 Input Centre 21 9 22
4 External 2 Input Sub 7 20 8
5 External 2 Input Left Surround 18 6 19
6 External 2 Input Right Surround 4 17 5
7 External 4 Input Left 15 3 16
8 External 4 Input Right 1 14 2
