GENESYS User Manual Issue 1

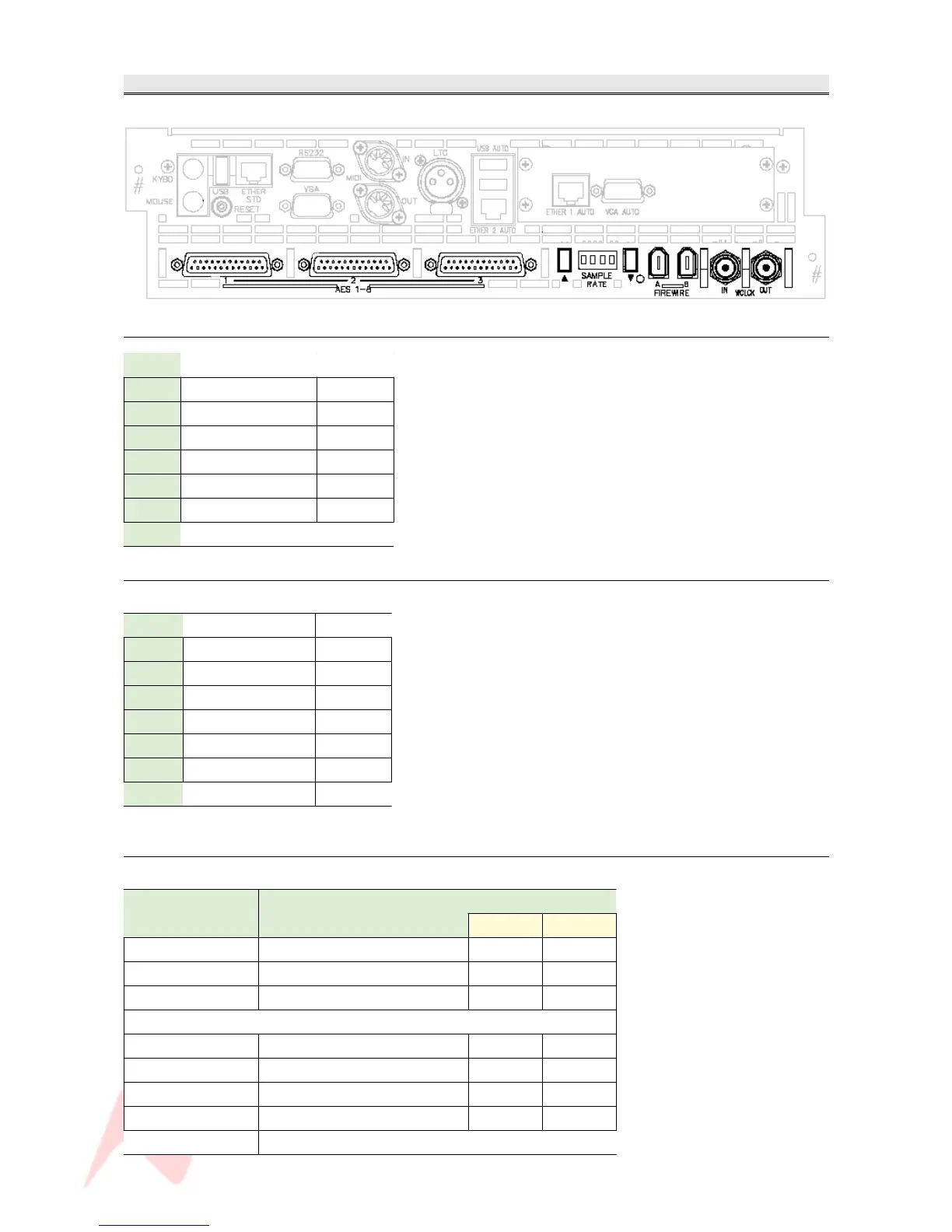

Optional AES Monitoring cassette, SMN 812 – 410

This single card (regardless of console size) is sub-fitted beneath the Computer cassette.

Firewire A

(J 14)

1 Power Voltage VP

2 Power Ground VG

3 TPB 0 -

4 TPB 0 +

5 TPA 0 -

6 TPA 0 +

7 Shield 1

8 Shield 2

Firewire B

(J 15)

1 Power Voltage VP

2 Power Ground VG

3 TPB 1 -

4 TPB 1 +

5 TPA 1 -

6 TPA 1 +

7 Shield 1

8 Shield 2

Socket 1

(25-way D-type)

Signal Name

+ve -ve

RX 0 AES Channel Inputs 1 & 2 1 14

RX 1 AES Channel Inputs 3 & 4 2 15

RX 2 AES Channel Inputs 5 & 6 3 16

TX 0 AES Channel Outputs 1 & 2 5 18

TX 1 AES Channel Outputs 3 & 4 6 19

TX 2 AES Channel Outputs 5 & 6 7 20

TX 3 AES Channel Outputs 7 & 8 8 21

Pins to chassis 9, 10, 11, 12, 13, 22, 23, 24 & 25

- 93 -
