Neve Genesys - Optional Dynamics Cassette, SMN 812 - 412

GENESYS User Manual Issue 1
Optional Dynamics Cassette, SMN 812 – 412

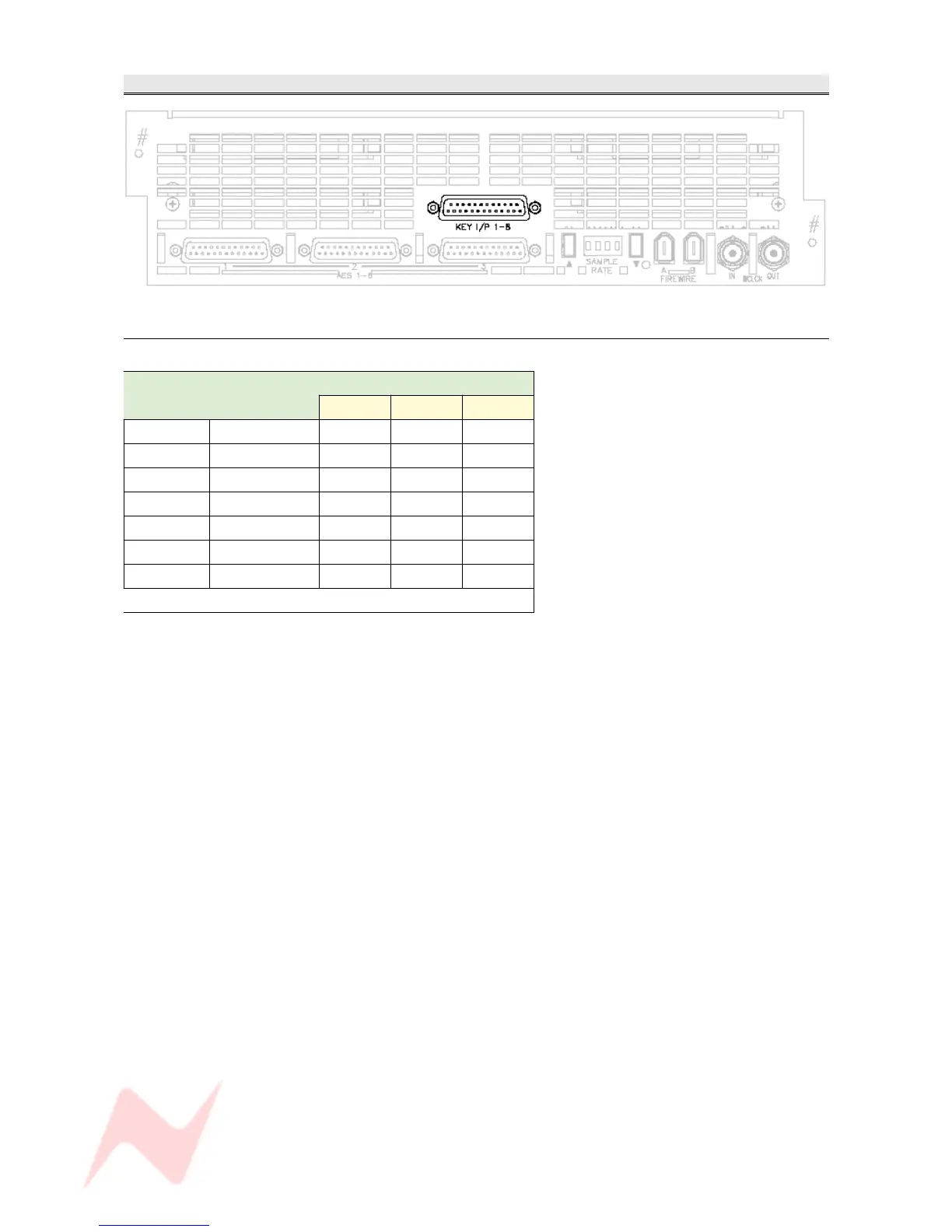

Key Input
(25-way D-type)
Signal Name
Pin
Hi Lo Scrn
1 Key Input 1 24 12 25
2 Key Input 2 10 23 11
3 Key Input 3 21 9 22
4 Key Input 4 7 20 8
5 Key Input 5 18 6 19
6 Key Input 6 4 17 5
7 Key Input 7 15 3 16
8 Key Input 8 1 14 2
