DAW
Lights red whenever the DAW button is pressed on the Control Room
Panel and indicates that the 8T meters are being feed from the DAW
metering and not the console metering.
PSU STATUS
Indicates the state of the internal console power supplies.
If all power supplies to all sections of the console are healthy, then all leds
will be OFF.
The 1, 2, 3 & 4 leds refer to a particular 16 channel section of the
console.
As the console is scaleable up to 64 faders, each of the 1 – 4 leds refer to
a block of 16 channels:
Led Console Fader Section
1 1 - 16
2 17 - 32
3 33 - 48
4 49 - 64
If a power supply should fail, 2 leds will light:
• One of the 1, 2, 3 or 4 leds will indicate the section of the console;
• One of the +48v, +5v, +18v or -18v leds will indicate which supply
within that section.

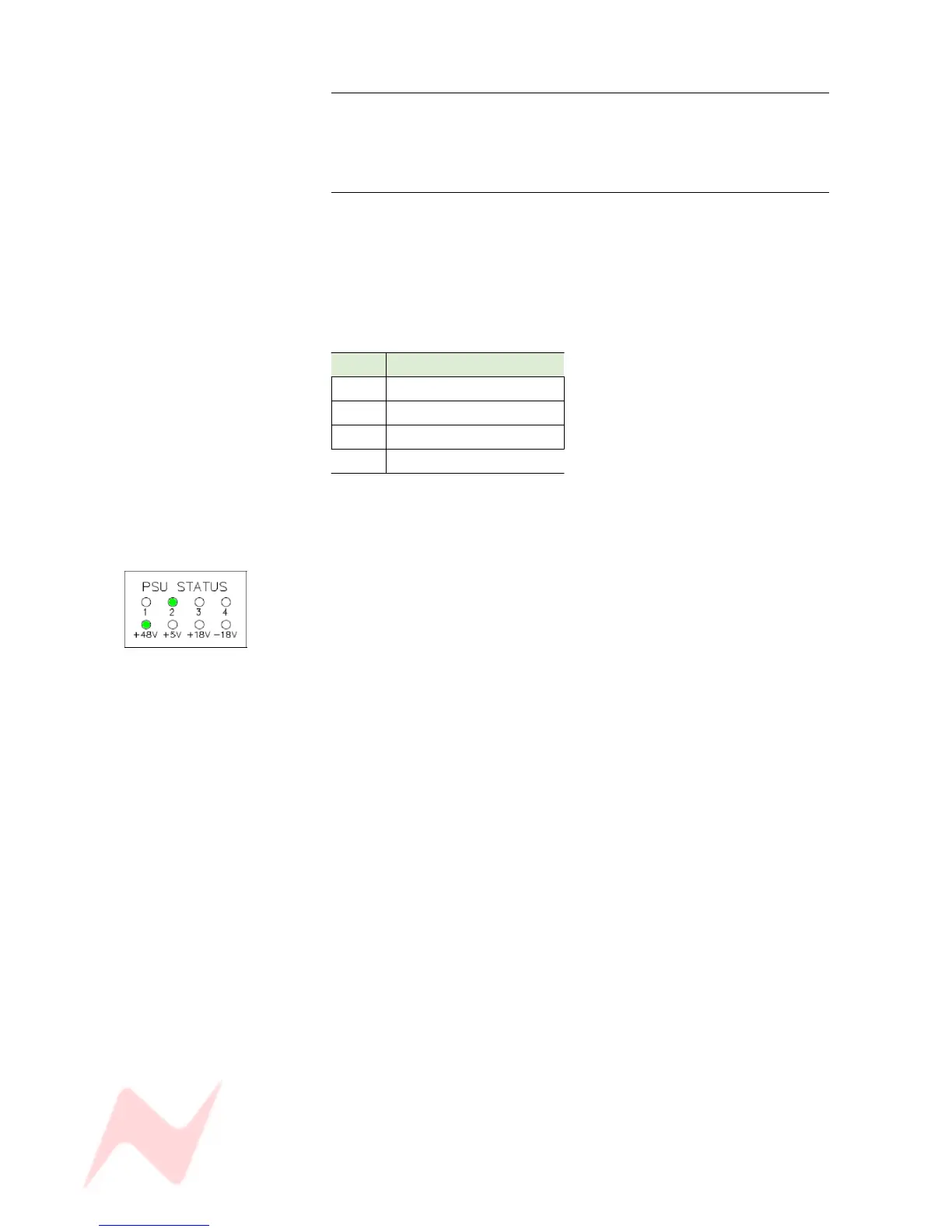

For example, if 2 and +48v were lit (as shown left), this would indicate
there is no +48v (phantom power) supply on fader section 17-32.
