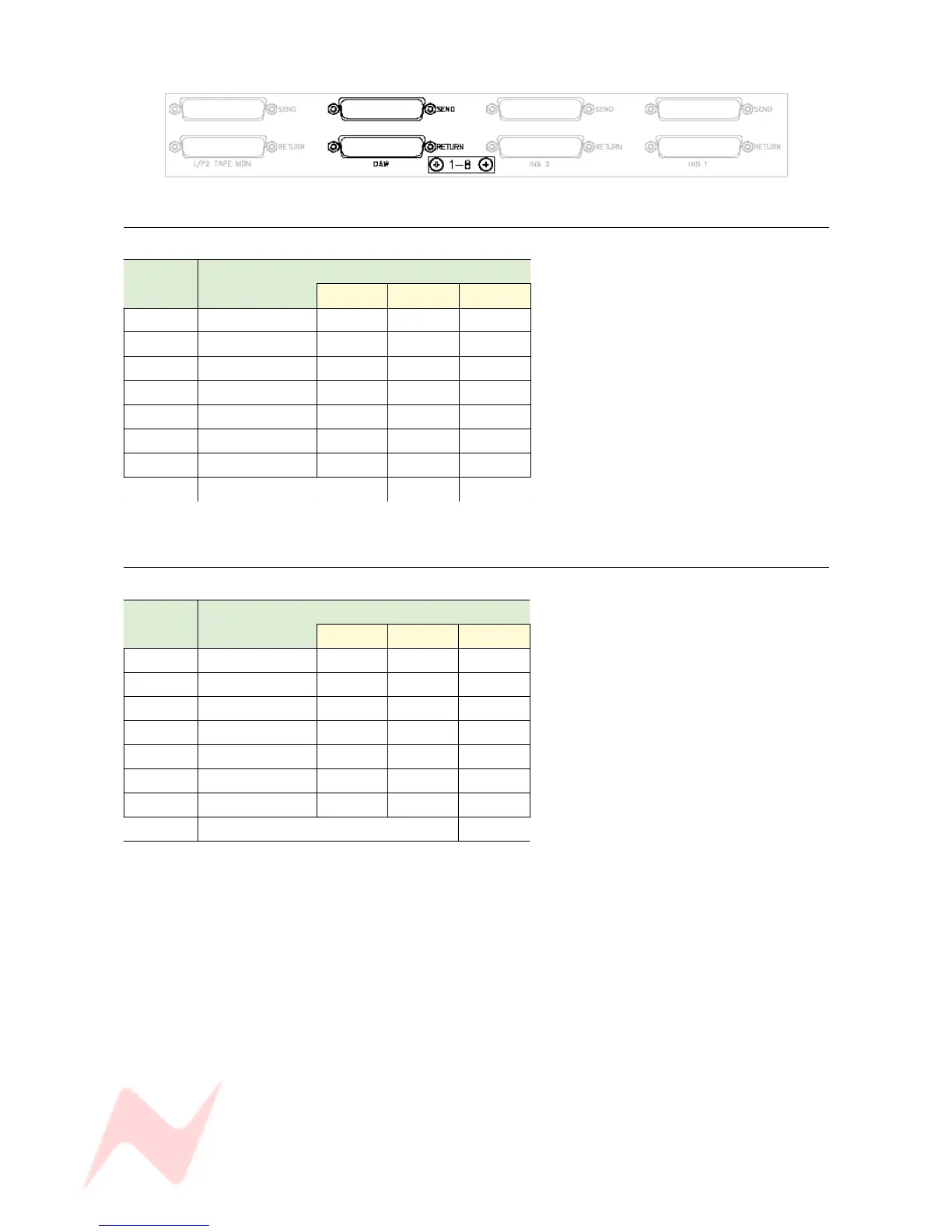

DAW Send
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 DAW Send 1 24 12 25
2 DAW Send 2 10 23 11
3 DAW Send 3 21 9 22
4 DAW Send 4 7 20 8
5 DAW Send 5 18 6 19
6 DAW Send 6 4 17 5
7 DAW Send 7 15 3 16
8 DAW Send 8 1 14 2
DAW Return
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 DAW Return 1 24 12 25
2 DAW Return 2 10 23 11
3 DAW Return 3 21 9 22
4 DAW Return 4 7 20 8
5 DAW Return 5 18 6 19
6 DAW Return 6 4 17 5
7 DAW Return 7 15 3 16
8 DAW Return 8 1 14 2
