GENESYS User Manual Issue 1

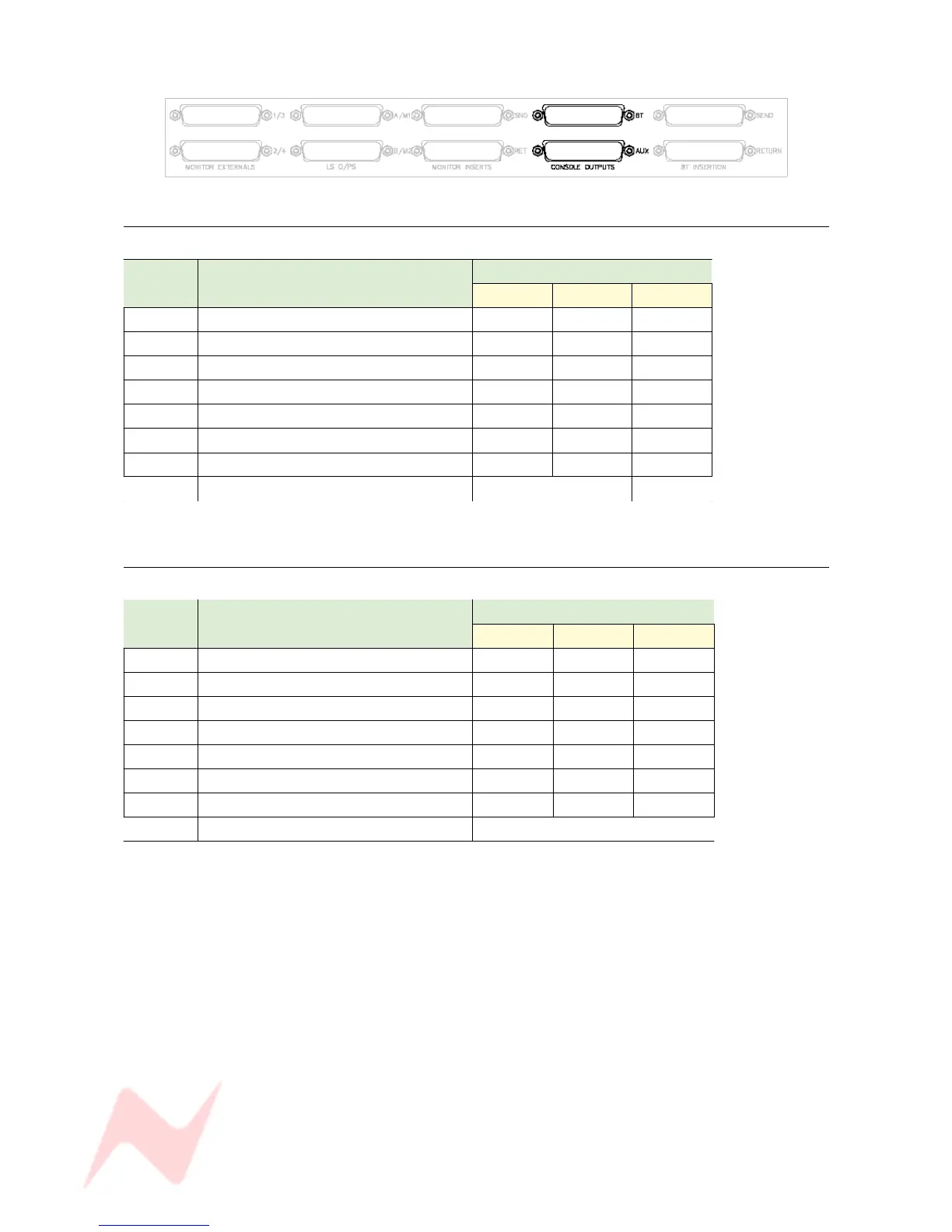

Console Outputs – 8Ts
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 8T Output 1 24 12 25
2 8T Output 2 10 23 11
3 8T Output 3 21 9 22
4 8T Output 4 7 20 8
5 8T Output 5 18 6 19
6 8T Output 6 4 17 5
7 8T Output 7 15 3 16
8 8T Output 8 1 14 2
Console Outputs - Auxiliaries
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 Auxiliary Output 1 24 12 25
2 Auxiliary Output 2 10 23 11
3 Auxiliary Output 3 21 9 22
4 Auxiliary Output 4 7 20 8
5 Auxiliary Output 5 Left 18 6 19
6 Auxiliary Output 5 Right 4 17 5
7 Auxiliary Output 6 Left 15 3 16
8 Auxiliary Output 6 Right 1 14 2
- 87 -
