GENESYS User Manual Issue 1

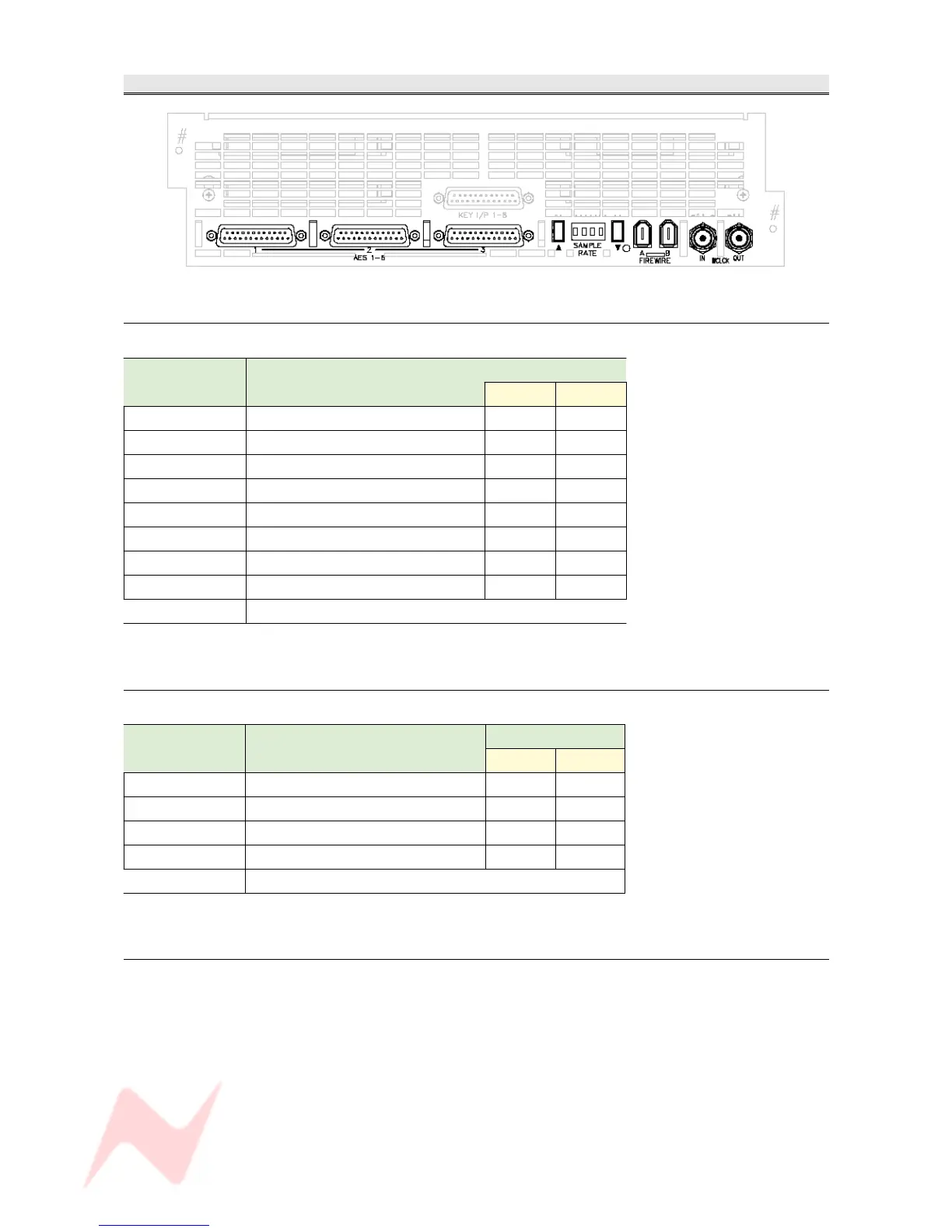

Optional AES Channels cassette, SMN 812 – 409

Socket 1

(25-way D-type)

Signal Name

+ve -ve

RX 0 AES Channel Inputs 1 & 2 1 14

RX 1 AES Channel Inputs 3 & 4 2 15

RX 2 AES Channel Inputs 5 & 6 3 16

RX 3 AES Channel Inputs 7 & 8 4 17

TX 0 AES Channel Outputs 1 & 2 5 18

TX 1 AES Channel Outputs 3 & 4 6 19

TX 2 AES Channel Outputs 4 & 6 7 20

TX 3 AES Channel Outputs 7 & 8 8 21

Pins to chassis 9, 10, 11, 12, 13, 22, 23, 24 & 25

Socket 2

(25-way D-type)

Signal Name

+ve -ve

RX 4 AES Channel Inputs 9 & 10 1 14

RX 5 AES Channel Inputs 11 & 12 2 15

RX 6 AES Channel Inputs 13 & 14 3 16

RX 7 AES Channel Inputs 15 & 16 4 17

Pins to chassis 9, 10, 11, 12, 13, 22, 23, 24 & 25

Socket 3

(25-way D-type)

Not currently used.

- 95 -
