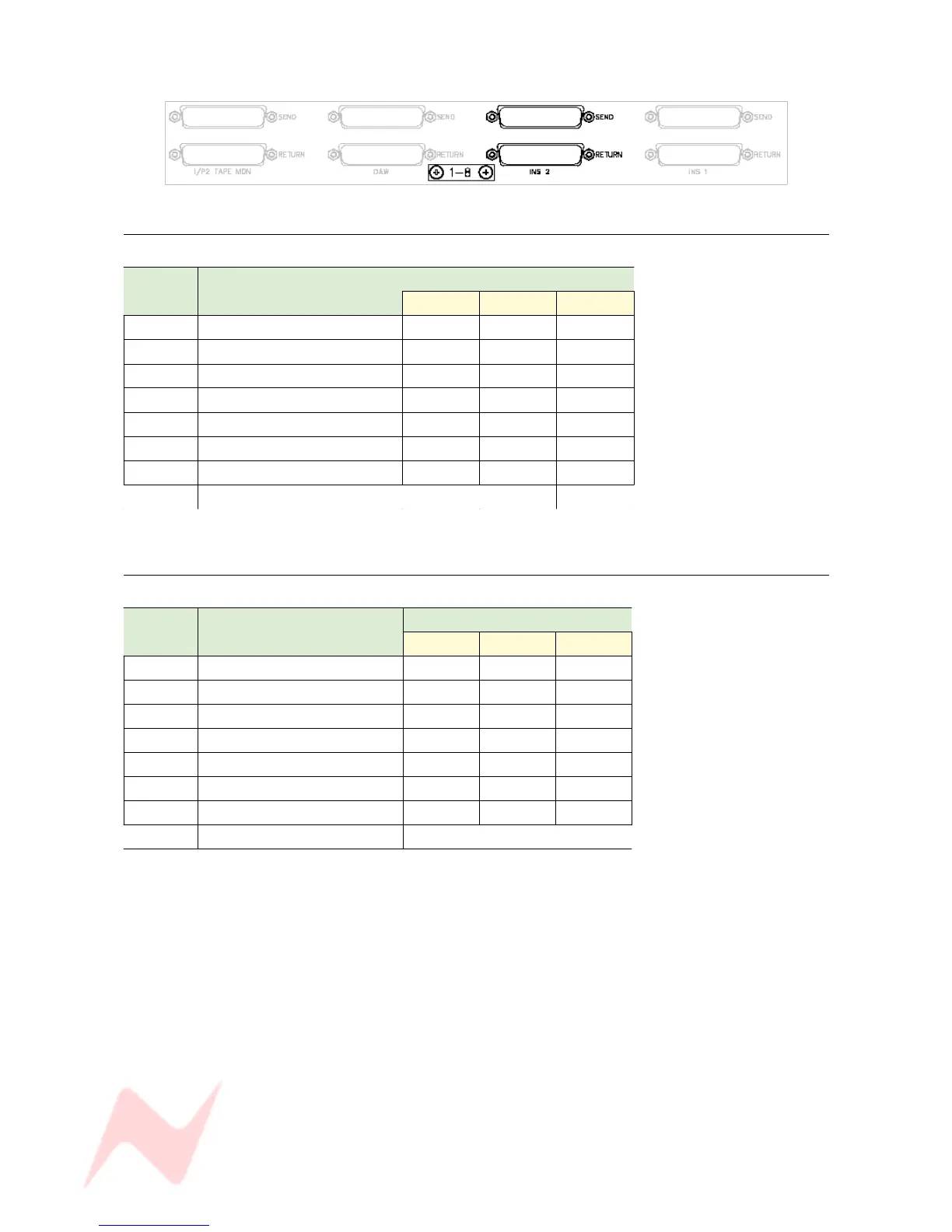

Channel Insert 2 Send
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 Channel Insert 2 Send 1 24 12 25
2 Channel Insert 2 Send 2 10 23 11
3 Channel Insert 2 Send 3 21 9 22
4 Channel Insert 2 Send 4 7 20 8
5 Channel Insert 2 Send 5 18 6 19
6 Channel Insert 2 Send 6 4 17 5
7 Channel Insert 2 Send 7 15 3 16
8 Channel Insert 2 Send 8 1 14 2
Channel Insert 2 Return
(25-way D-type)
Signal Name
Pin
Hi Lo Screen
1 Channel Insert 2 Return 1 24 12 25
2 Channel Insert 2 Return 2 10 23 11
3 Channel Insert 2 Return 3 21 9 22
4 Channel Insert 2 Return 4 7 20 8
5 Channel Insert 2 Return 5 18 6 19
6 Channel Insert 2 Return 6 4 17 5
7 Channel Insert 2 Return 7 15 3 16
8 Channel Insert 2 Return 8 1 14 2
