Monitor Board 4 (Mix Output)

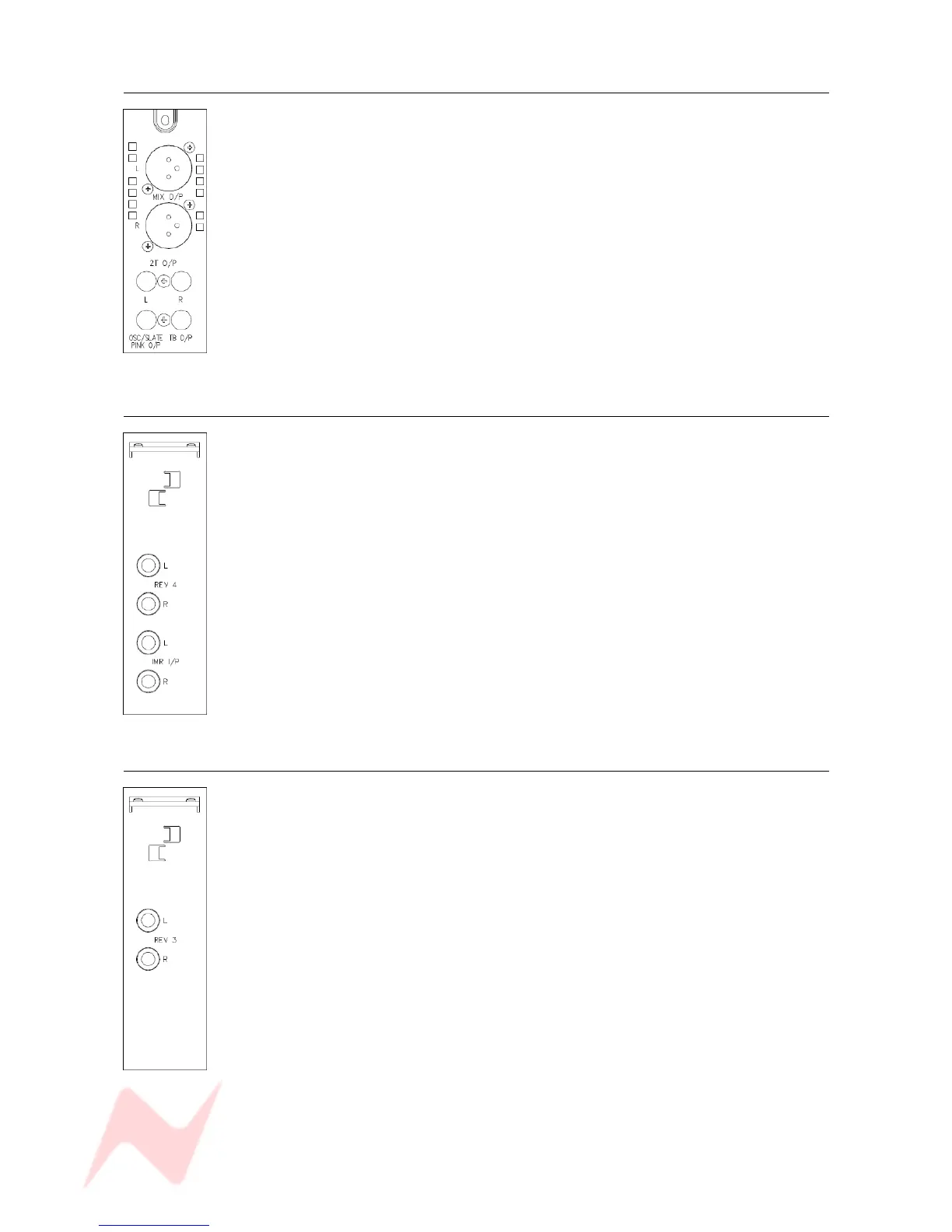

This board has 2 XLRs for the Main Mix outputs.
It also contains 2 jack sockets that carry the Left and Right o/p of the 2T
mix.
At the bottom of the board, there are 2 jack sockets, one of which carries
the Oscillator / Slate / Pink noise output; another which carries the
console Talkback signal.
Monitor Board 5 (Rev Return 4)
The Rev Return 4 board contains the Rev Returns for Auxiliary 4, but also
the Insert Mix Return Left and Right jack sockets (the Sends are on Mon
Board 3 above).
Monitor Boards 6, 7 & 8 (Rev Returns 3, 2 & 1)
These three boards are the same as Monitor Board 5 (above) but only
contain the Left and Right input for the relevant Rev Return.
