VBA23001-R.3762 .A
- D26 ･ D90 -

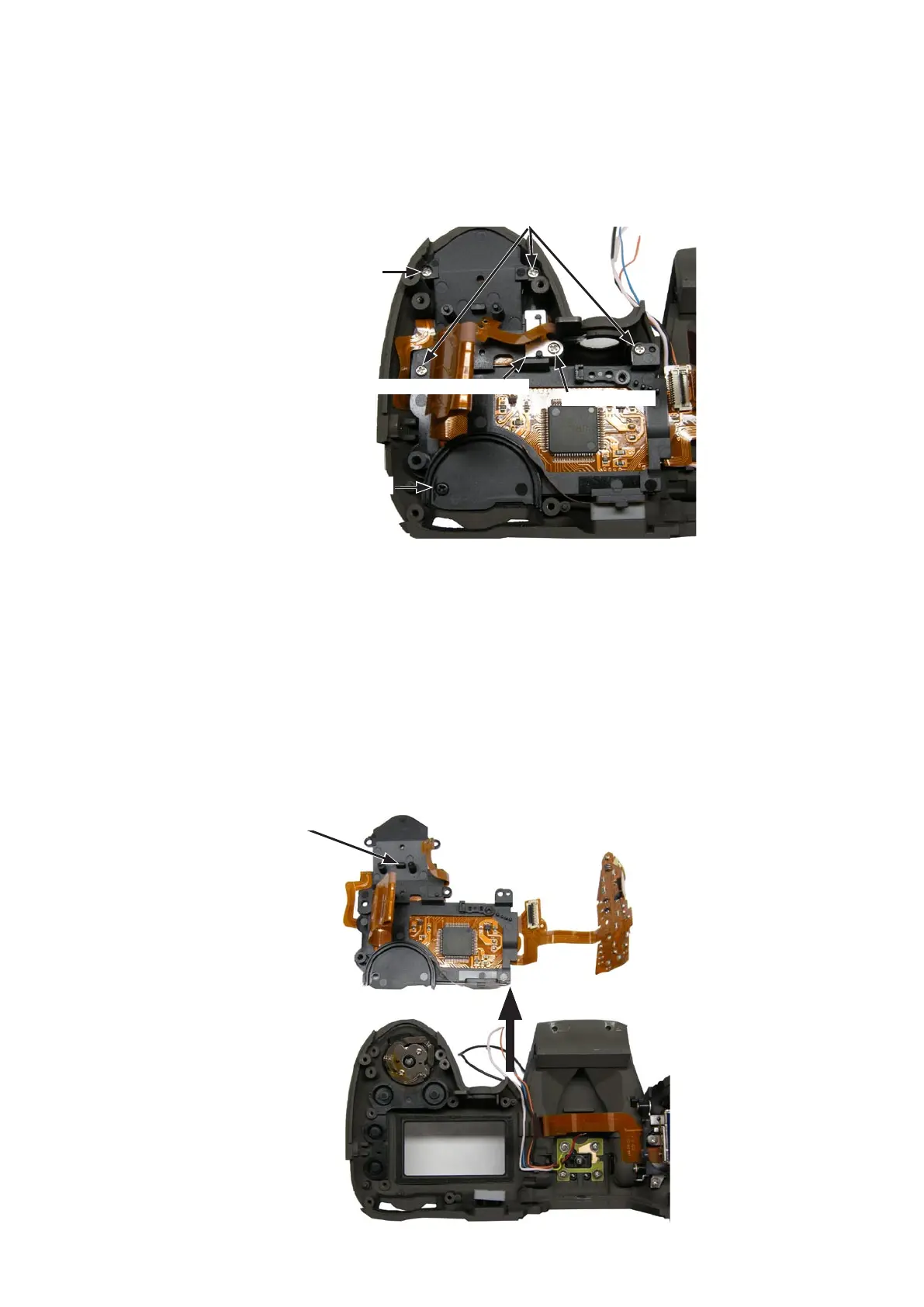

・Remove the top cover FPC unit (#B1007RP).Remove the top cover FPC unit (#B1007RP).
・Take out the screw (#607).Take out the screw (#607).
・Take out the screw (#605).Take out the screw (#605).
・Take out the screw (#612), and remove the arrangement plate (#340).Take out the screw (#612), and remove the arrangement plate (#340).
・Remove the three screws (#612) which are for the top cover FPC unit (#B1007RP).Remove the three screws (#612) which are for the top cover FPC unit (#B1007RP).
Screw (#607)
Screw (#605)
Screw (#612)
Arrangement plate (#340)
Screws (#612) which are for the top cover FPC unit (#B1007RP)
Top cover FPC unit (#B1007RP)
