- D27 ･ D90 -

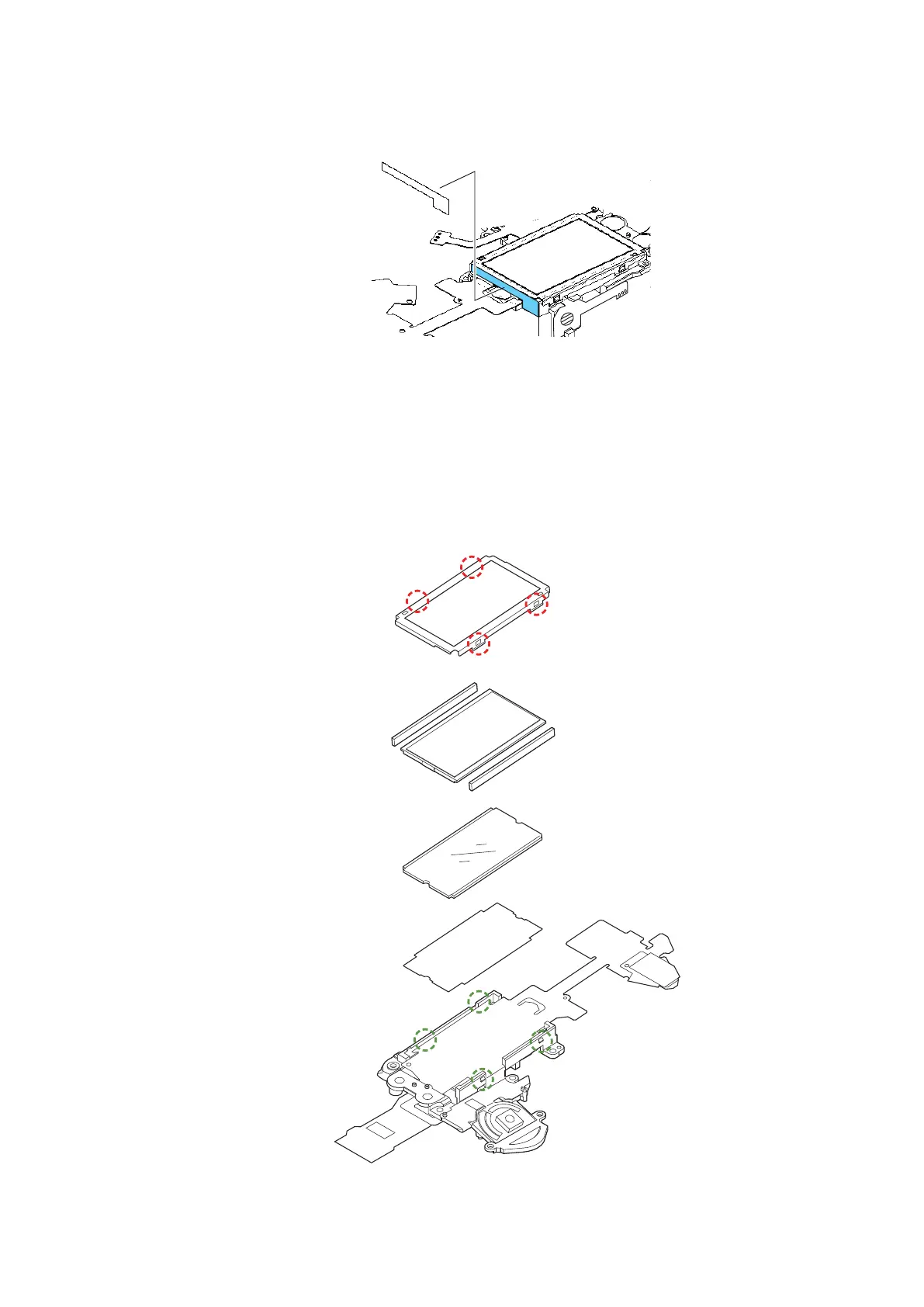

・Unhook the plate (#331) at four places from the top cover FPC unit (#B1007RP).Unhook the plate (#331) at four places from the top cover FPC unit (#B1007RP). from the top cover FPC unit (#B1007RP).from the top cover FPC unit (#B1007RP).
・Remove the upper LCD (#1044).Remove the upper LCD (#1044).
・Remove the two conducting rubber (#332).Remove the two conducting rubber (#332).
・Remove the reflection sheet (#334) and the light guide (#333).Remove the reflection sheet (#334) and the light guide (#333).
Reflection sheet (#334)
Light guide (#333)
Conducting rubber (#332)
×
2
Upper LCD (#1044)
Plate (#331)
Top cover FPC unit (#B1007RP)
Tape (#825)
・Peel off the tape (#825).Peel off the tape (#825).
