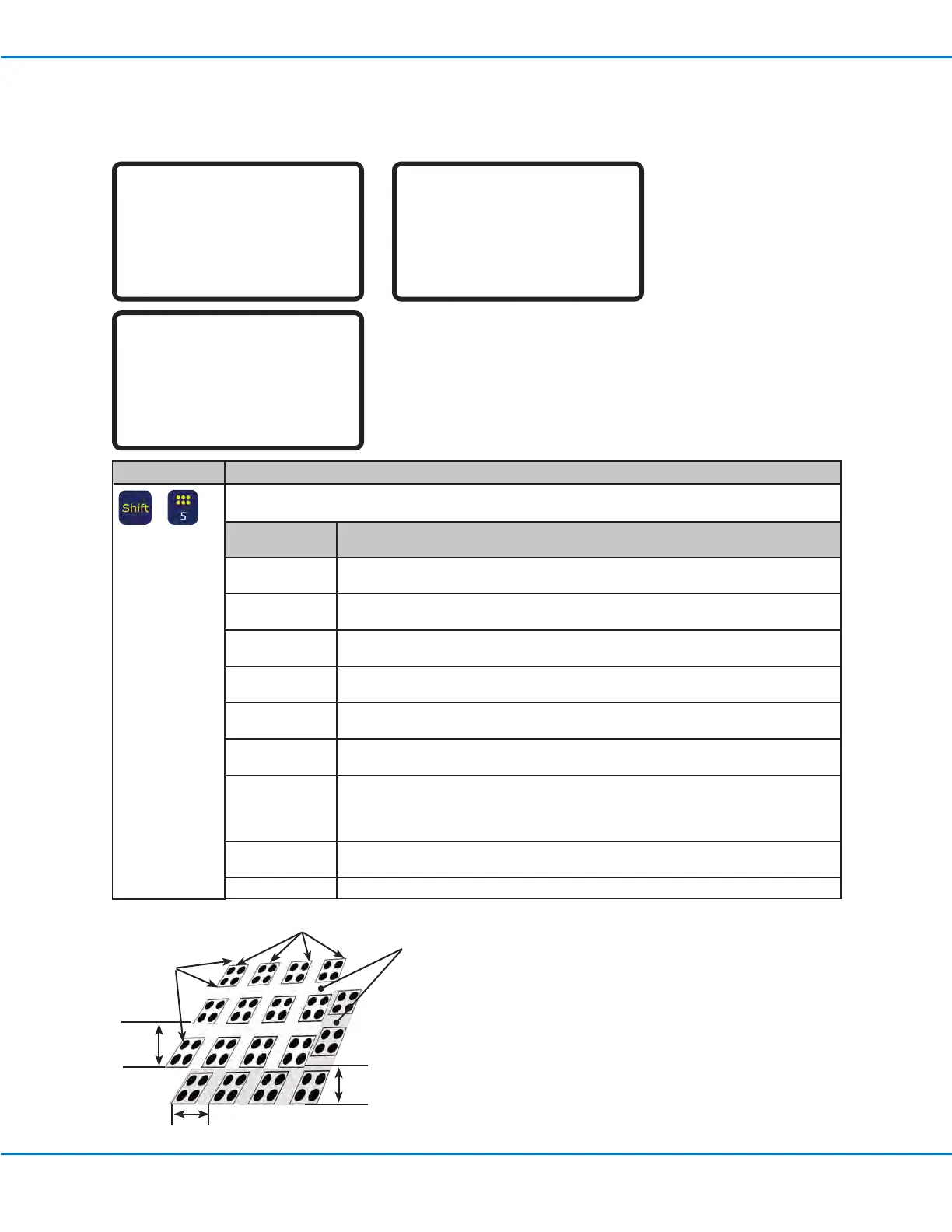

E Series Automated Dispensing System
100 www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
12 Step & Repeat 3D
Step & Repeat
------------------------------
[F1] Step & Repeat 2D
[F2] Step & Repeat 3D
------------------------------
Step & Repeat 3D 1/2
------------------------------
Direction X(1)/Y(2): 1
X Offset: 1.00 mm
Y Offset: 1.00 mm
Z Offset: 1.00 mm
[F1] OK [F2] Next
Step & Repeat 3D 2/2
------------------------------
Column (X): 1
Row (Y): 1
Tier (Z): 1
Path S(1)/N(2): 1
Goto Label: 1
[F1] OK [F2] Next
Key Press Function
>
Enables the repeat of the dispensing pattern onto many identical workpieces that are mounted on a xture
plate and aligned in rows and columns.
Parameter Description (refer to the diagram below and to “Example Illustrations of Step &
Repeat Parameters” on page99)
Direction The direction the tip moves along the XY axes. Select X(1) to give priority to the X axis or
Y(2) to give priority to the Y axis.
X Offset The distance (in mm) between each workpiece in the X direction.
Range: 0.1–100 (mm)
Y Offset The distance (in mm) between each workpiece in the Y direction.
Range: 0.1–100 (mm)
Z Offset The distance (in mm) between each workpiece tier in the Z direction.
Range: 0.1–100 (mm)
Columns (X) The number of columns in the X direction.
Range: 1–9999
Rows (Y) The number of rows in the Y direction.
Range: 1–9999
Tier (Z) The number of tiers in the Z direction:
• A positive Z value moves the tip down towards the work surface.
• A negative Z value moves the tip up away from the work surface.
Range: 1–9999
Path S(1)/N(2) The path of pattern travel. Select 1 for an S-shaped pattern or 2 for an N-shaped
pattern.
Goto Label The address where the Step & Repeat X command begins.
Appendix A, Type Menu Reference (continued)
X Offset
(in mm)
Y Offset (in mm)
Column (X)
Row (Y)
Tier (Z)
Z Offset
(in mm)
Diagram of the Step & Repeat 3D X Offset, Y Offset, Columns (X), Rows (Y), and Tier (Z) Parameters
