Technical Data

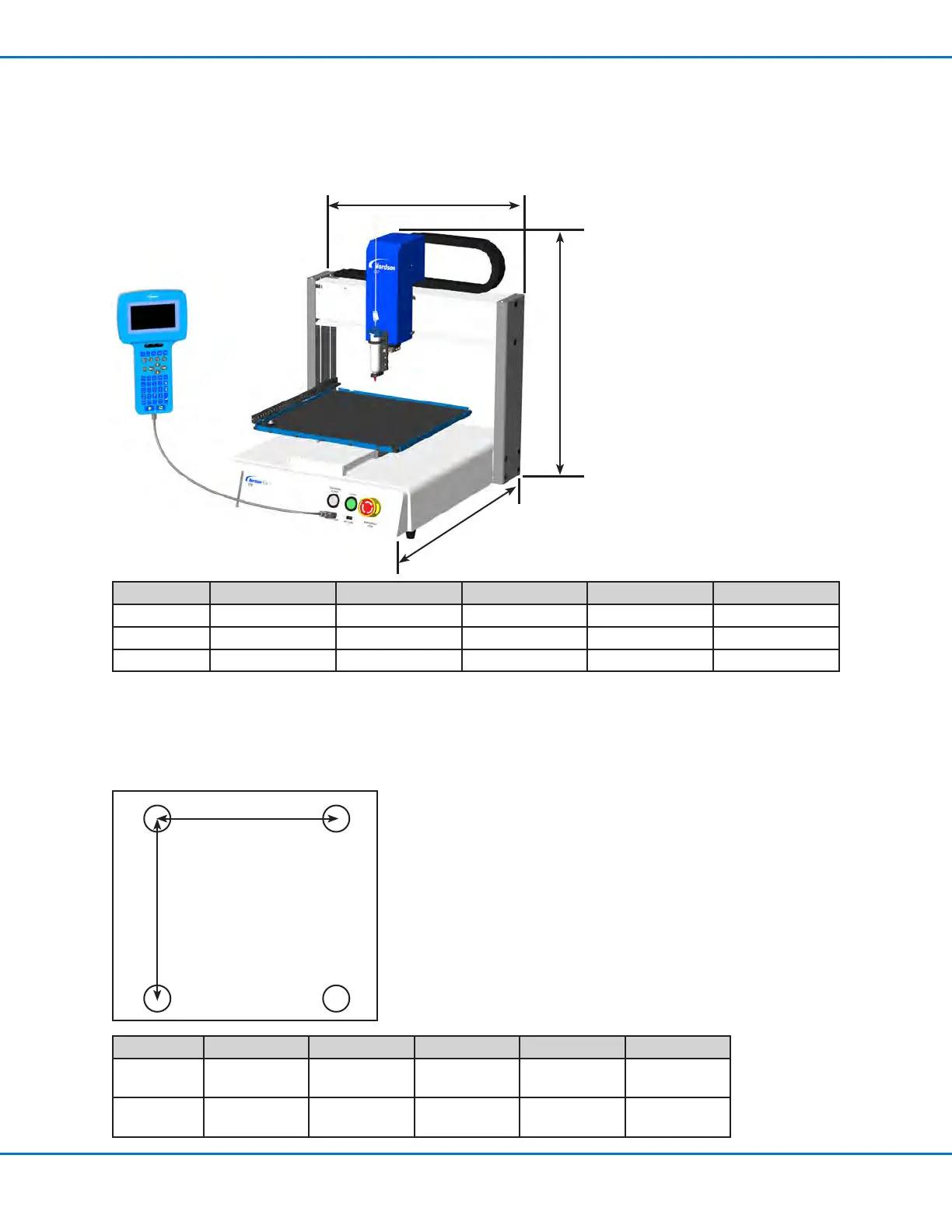

Dimensions
Dimension E2 E3 E4 E5 E6
A (width) 370 mm (15") 490 mm (19") 590 mm (23") 690 mm (27") 808 mm (32")
B (height) 510 mm (20") 644 mm (25") 644 mm (25") 814 mm (32") 812 mm (32")
C (depth) 414 mm (16") 519 mm (20") 617 mm (24") 718 mm (28") 718 mm (28")
Mounting Hole Template
Use these dimensions to drill mounting holes for the robot feet.
Dimension E2 E3 E4 E5 E6
A
302 mm
(11.88")
400 mm
(15.75")
500 mm
(19.69")
500 mm
(19.69")
500 mm
(19.69")
B
300 mm
(11.81")
410 mm
(16.14")
510 mm
(20.08")
510 mm
(20.08")
510 mm
(20.08")
4 x M5 tapped holes
B
A
C
B
A
