How to Clear or Copy a Program
Program numbers 01 to 99 are either populated (program present) or empty (no program present). A currently open
program can be cleared of its contents or the current program contents can be copied to a new program number.
When program content is copied to a new program number, the content of the destination program is overwritten.
PREREQUISITES
 The system is in the Teach Mode. Refer to “How to Switch from Run Mode to Teach Mode” on page44.
 The program you want to clear or copy is currently open. Refer to “How to Open and Edit a Program” on
page45.

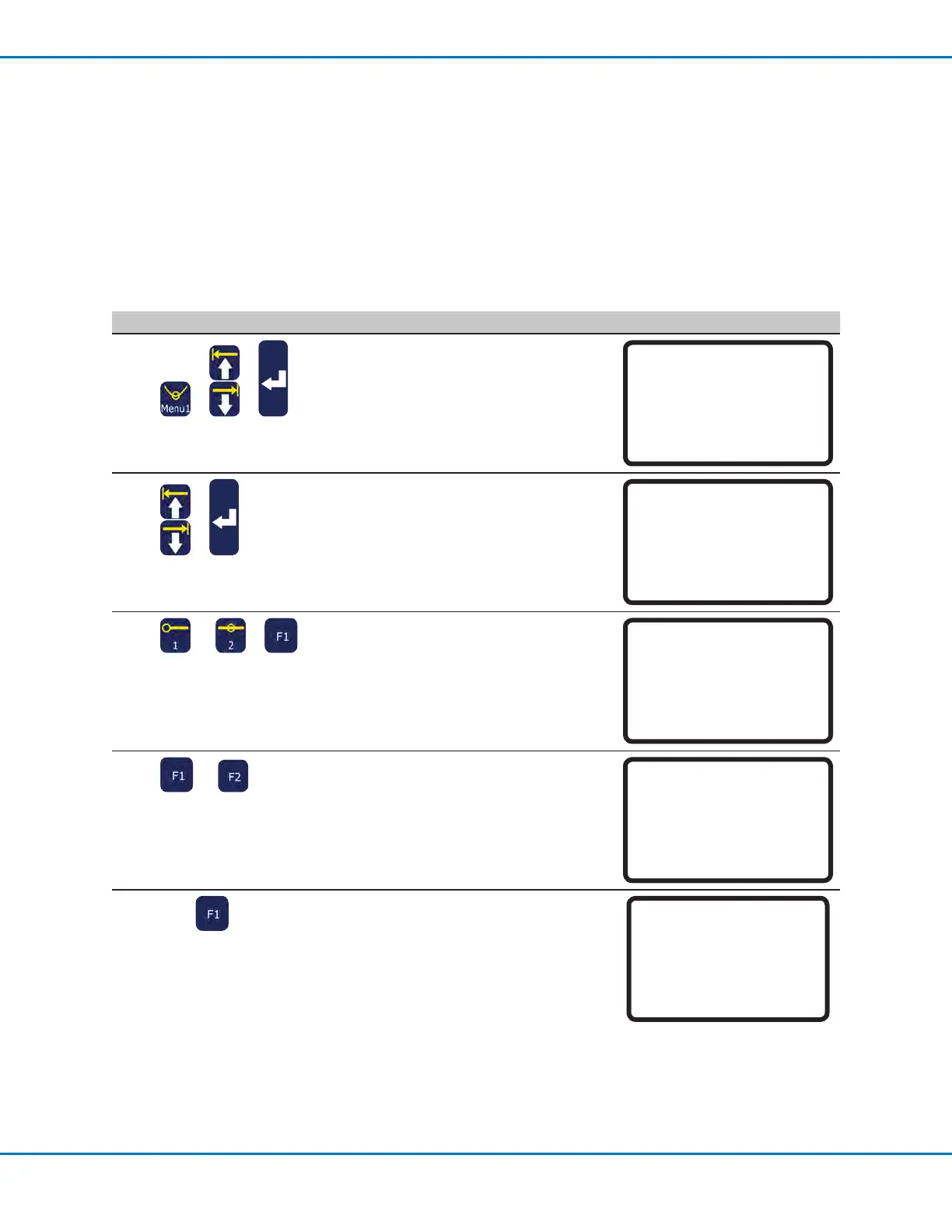

# Key Press Step Teach Pendant Display
1
> >
• Press MENU1.
• MOVE UP / DOWN to UTILITY MENU.
• Press ENTER.
[MENU 1] 2/2
08*Utility Menu
09 Diagnostic
2
>
• MOVE UP / DOWN to PROGRAM.
• Press ENTER.
[UTILITY] 1/1
01*Program
02 Memory
03 Key Beep
04 Online Signals
05 Barcode Scanner
06 System Lockout
3
or >
• Press 1 CLEAR to empty all addresses
in the current program.
• Press 2 COPY to copy the current
program.
• Press F1 to continue.
Program Utility
Program 1
------------------------------
1 Clear
2 Copy
Select: _
[F1] OK
4
or
• If you pressed 1 (Clear), the system
prompts for conrmation.
• Press F1 to accept the clear or F2 to
cancel the clear.
Program Utility
------------------------------
Clear Program 1
[F1] Yes [F2] No
5
xx >
• If you pressed 2 (Copy), the system
prompts for the program number to
copy to (program number 1–99).
• Press F1 to copy all program contents
to the selected program number.
NOTE: If the destination program is
not empty, the program contents are
overwritten by the copied program.
Program Utility
-----------------------------
Copy Program 1 To: _
[F1] OK
