Nordson EFD E2 - Operating Features; Component Identification; Front Panel

E Series Automated Dispensing System
13www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
Teach Pendant (TP)
E Series robot
Syringe barrel for
uid dispensing
Fixture plate
(optional)

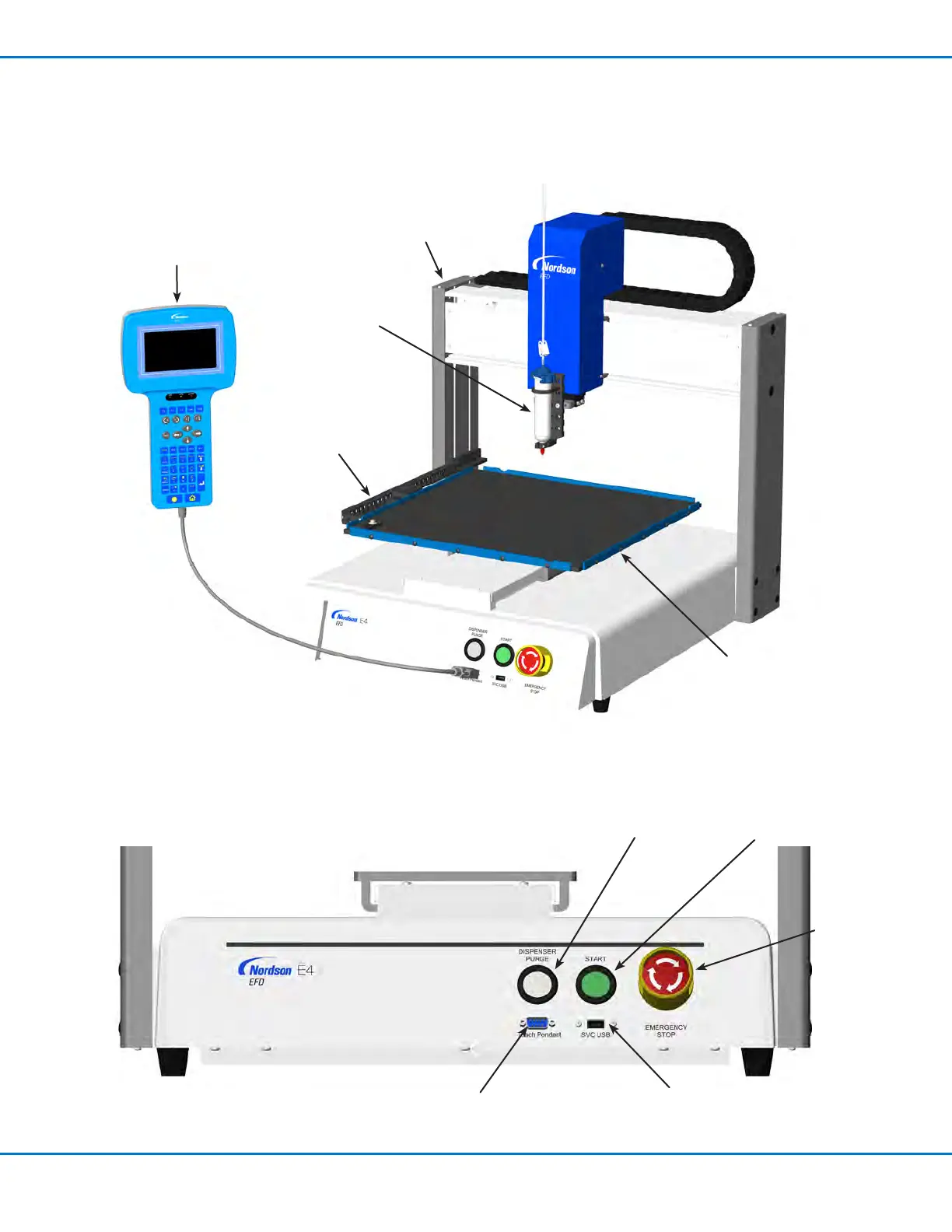

Operating Features
Component Identification
EMERGENCY
STOP button
START button
DISPENSER
PURGE button
Teach Pendant
connection
SVC USB port (for
transferring programs or
connecting a barcode
scanner)
Front Panel
Tip alignment kit
(optional)
