DXF Screen and Icons
The DXF screen is used to import a DXF le, select the desired points and lines, and generate the initial set of
dispense commands.

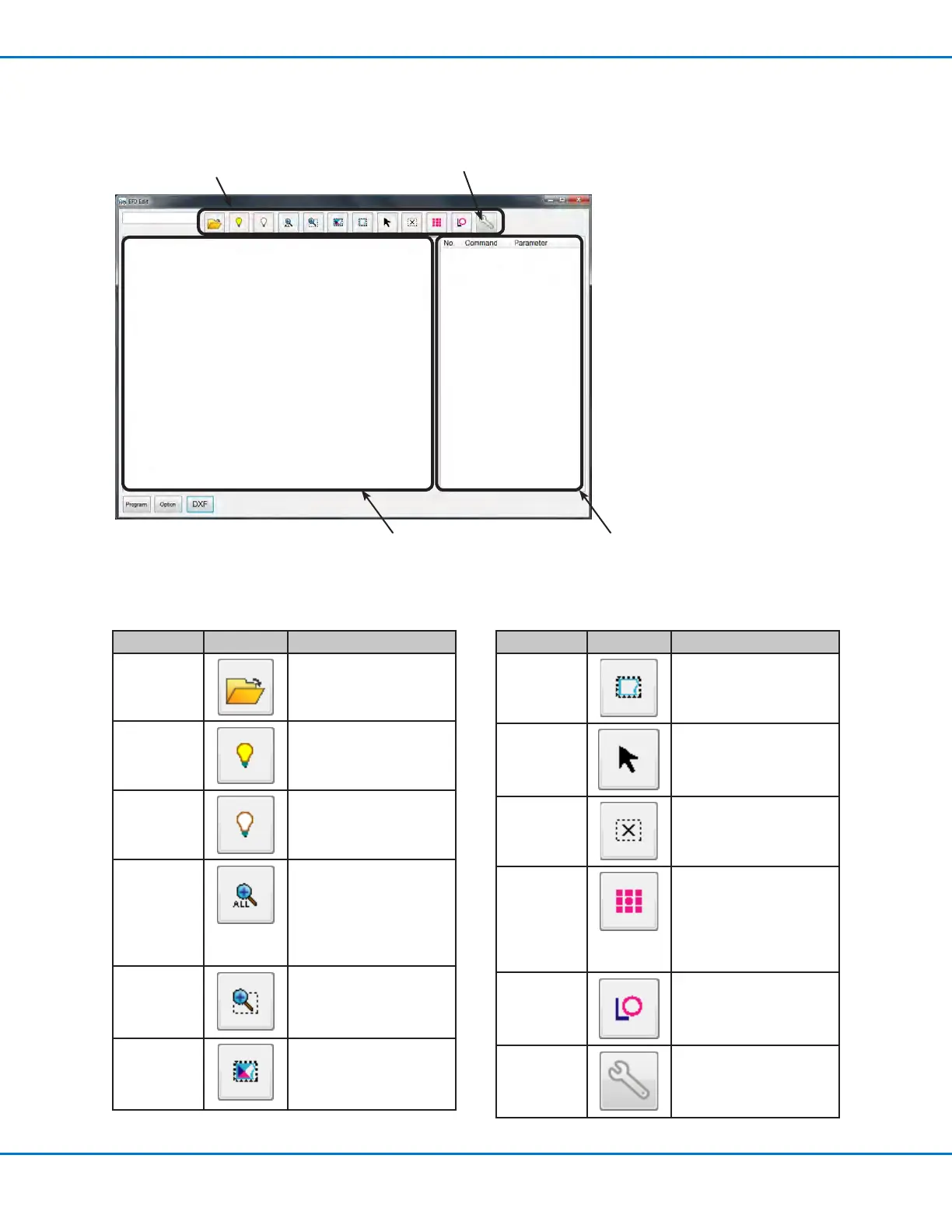

1. DXF Screen Editing Icons
The DXF screen editing icons are used to manipulate the points of an imported DXF le.
1. DXF screen editing icons
2. Drawing window 3. DXF screen
command window
4. Opens the Option window (not shown)
Icon Name Icon Function
Open a File
Opens a le
Show All
Layers
Shows all layers of the
open DXF le
Hide All
Layers
Hides all layers of the
open DXF le
See All
Compresses or resizes
the display so that all
points of the open DXF
le are displayed in
the viewing area of the
screen
Zoom
Zooms to the selected
area
Select All
Selects all the points in
the DXF le
Icon Name Icon Function
Select
Selects only the points
within the area of the of
rectangle
Click to
Select
Selects one element
Cancel
Select
Cancels any selections
Point
Dispense
Inserts Dispense Dot
commands for all the
selected points on an
imported DXF image
Line
Dispense
Inserts line dispense
commands for all the
selected shapes on an
imported DXF image
Option
Opens the DXF screen
Option window
