How to Adjust All Points in a Program (Program Offset)
Use Program Offset to update all the points in a program when the position (location or orientation) of a workpiece
has changed. For this function to work properly, you must set two Mark Points.
PREREQUISITES
 The system is in the Teach Mode. Refer to “How to Switch from Run Mode to Teach Mode” on page44.
 The program to be updated was correct and working properly before the workpiece position changed.

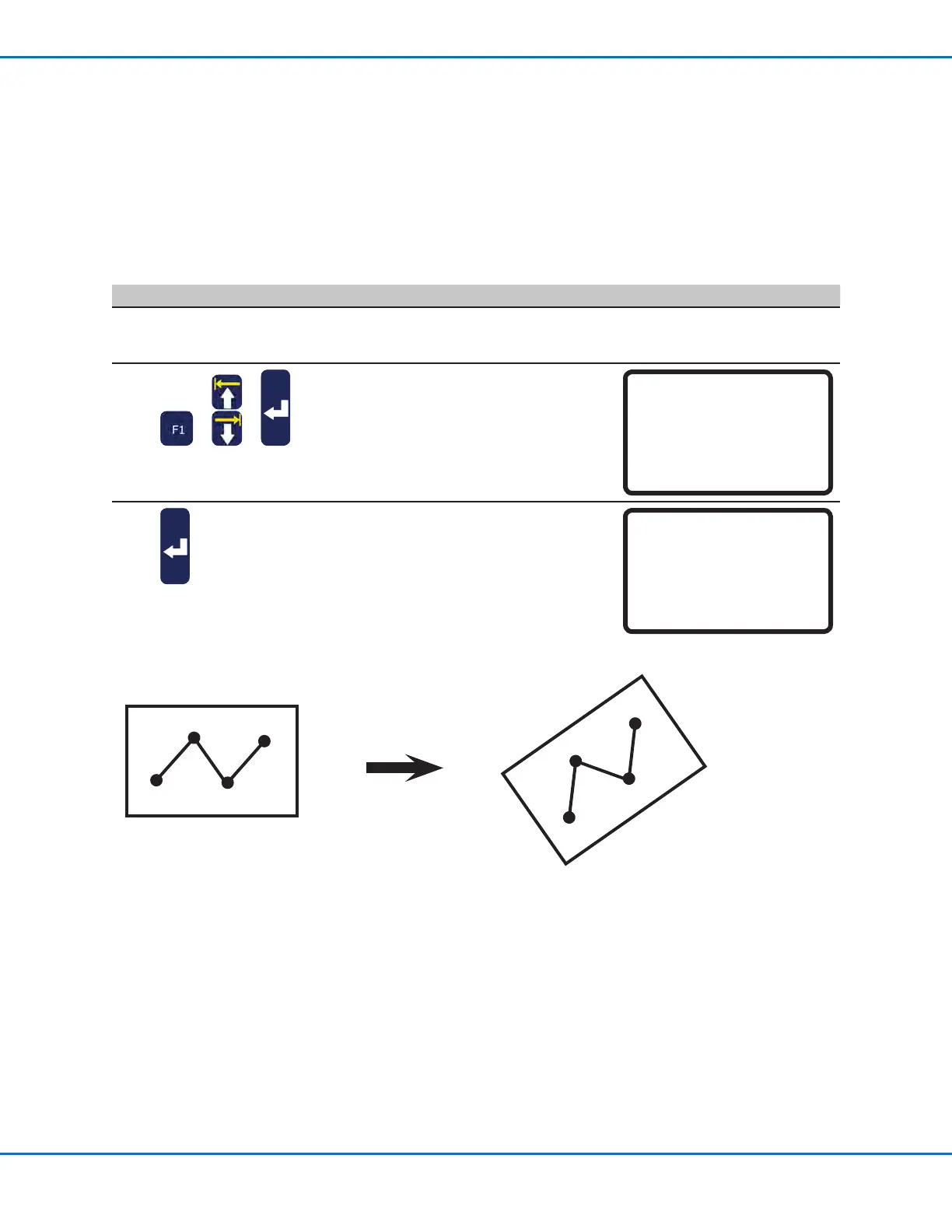

# Key Press Step Teach Pendant Display
1
• Set Mark Points for the workpiece.
Refer to “How to Set Mark Points” on
page52.
2
> >
• Press F1.
• MOVE UP / DOWN to PROGRAM
OFFSET.
• Press ENTER.
[PROGRAM MENU] 1/1
01 Teach/Run
02 Program List
03 Reset Counter
04*Program Offset
05 Needle Adjust
06 Auto Needle Adjust
3
• Press ENTER to begin. Follow the
instructions shown on the display.
When complete, the system
automatically adjusts all the points
in the current program for the new
workpiece position.
Program Offset
------------------------------
Press [ENTER] to begin
------------------------------
Working with Programs and Commands (continued)
Example illustration of Program Offset
+
+
Mark 1
Mark 2
+
+
Mark 1
Mark 2
