E Series Automated Dispensing System
54 www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
Working with Programs and Commands (continued)
How to Expand a Step & Repeat Command
Use this function to expand an existing Step & Repeat command to the show all the addresses contained in the
command. The Ex. Step & Repeat command is useful for editing individual dispense commands.
NOTES:
• The Ex. Step & Repeat command can be reversed using Undo Command under Menu2.
• An expanded Step & Repeat command requires more addresses than an unexpanded Step & Repeat
command.
PREREQUISITES
The system is in the Teach Mode. Refer to “How to Switch from Run Mode to Teach Mode” on page44.
The program you want to edit is currently open. Refer to “How to Open and Edit a Program” on page45.
The Step & Repeat command you want to expand is selected. Refer to “How to Make an Array of Dots (Step &
Repeat)” on page68 for details on the Step & Repeat command.

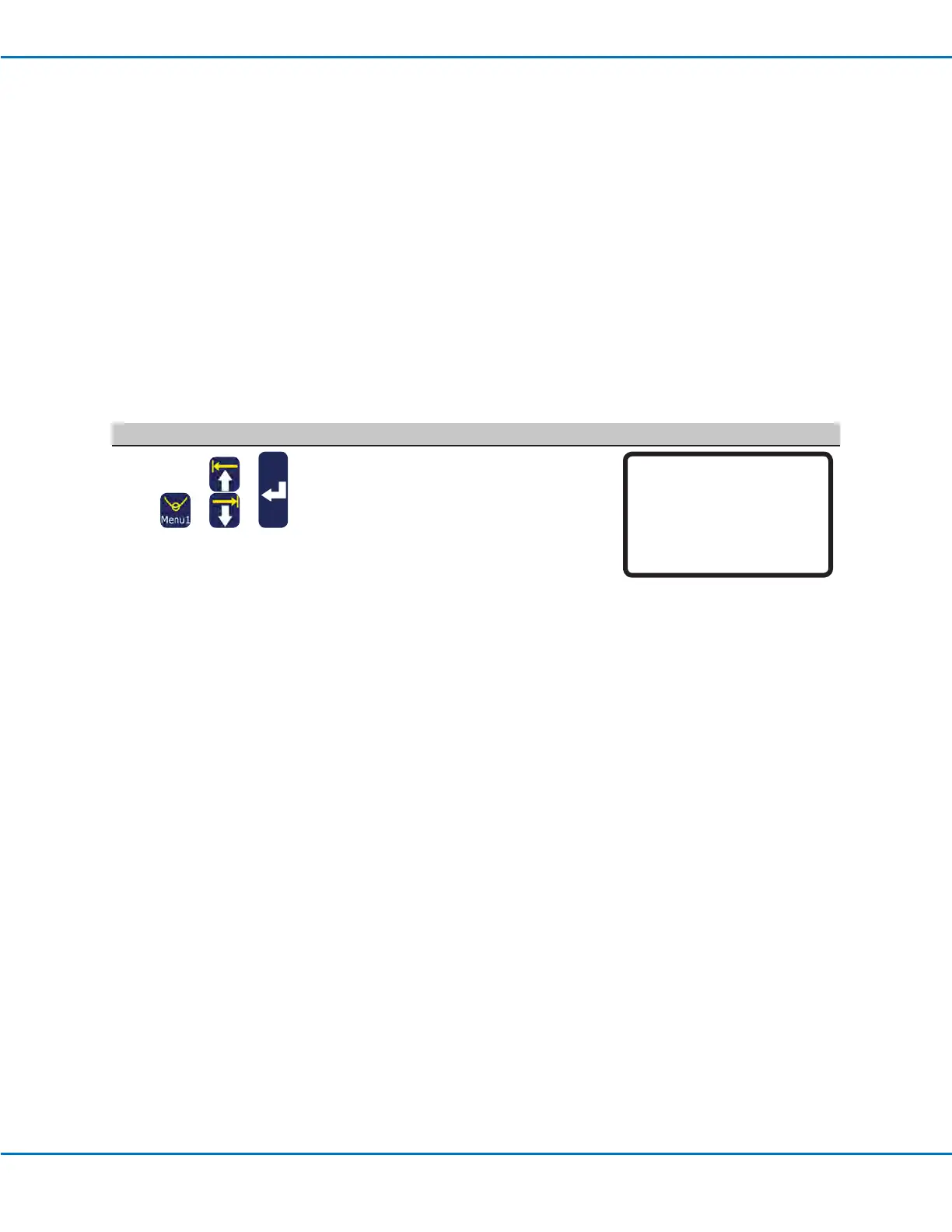

# Key Press Step Teach Pendant Display
1
> >
• Press MENU1.
• MOVE UP / DOWN to EX. STEP &
REPEAT.
• Press ENTER.
The selected Step & Repeat command
is expanded to the root level of
the program and all addresses are
renumbered accordingly.
[MENU 1] 1/2
01 Group Edit
02*Ex. Step & Repeat
03 Program Name
04 Axis Limit
05 Initialize Output
06 Jog Acceleration
07 Teach Move Z Clearance
To Next Page
