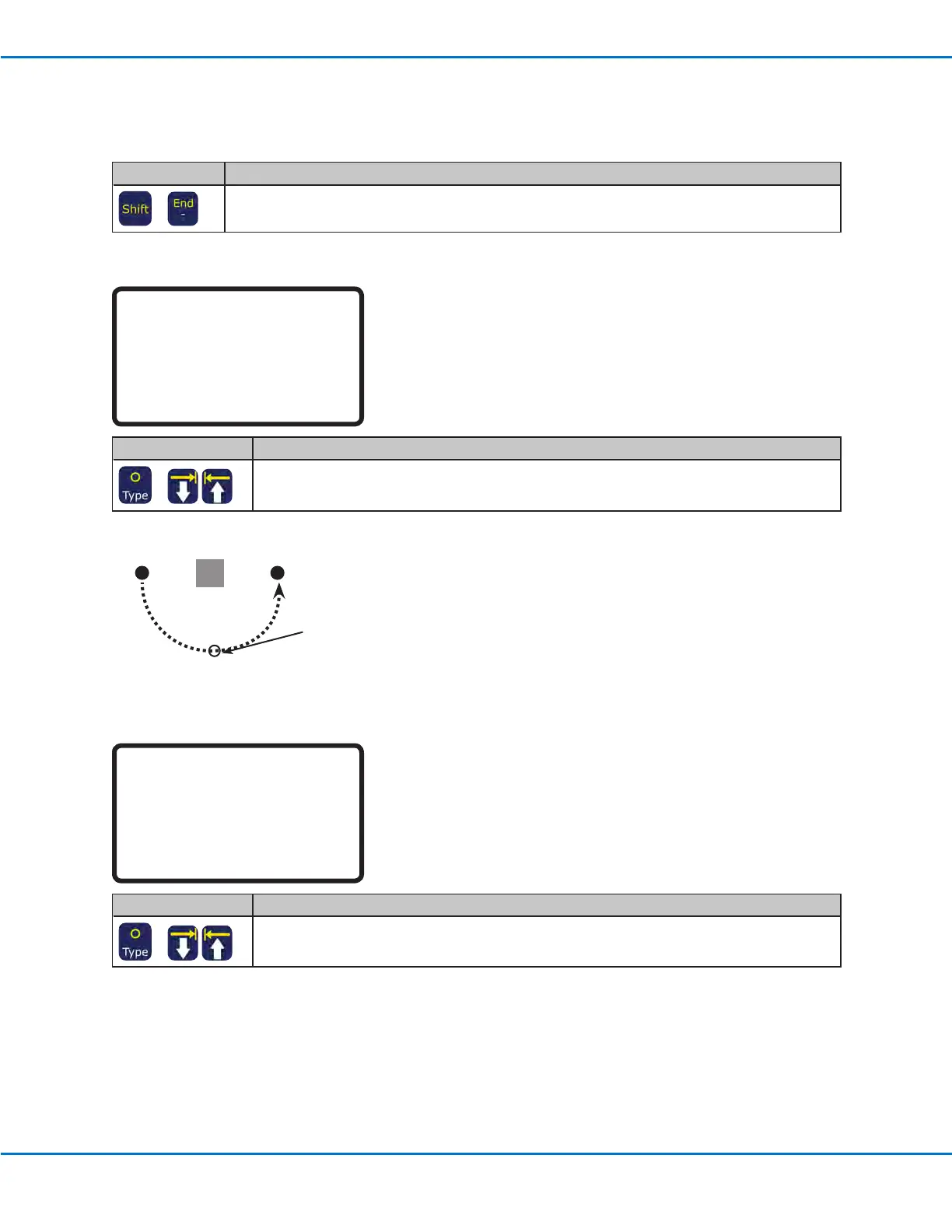

07 End Program
Key Press Function
>
Registers the current address as the end of the program. End Program returns the dispensing tip to the
home position or to the Park Position. This command must occur at the end of a dispense program.
08 Spline Node
Spline Node
------------------------------
X: 130.93 mm
Y: 37.39 mm
Z: 45.54 mm
[F1] OK [F3] Current
Key Press Function
>
Changes the path the tip makes as it moves between two points. Enter a Spline Node point to make
the tip move through the spline node point as it moves from one point to another. This is useful for
avoiding an obstacle on a workpiece.
Dispense
Dot A
Dispense
Dot B
Spline node point: the tip passes
through this point as it moves from
Dispense Dot A to Dispense Dot B
09 Spline Move Speed
Spline Move Speed
------------------------------
Speed: 80.0 mm/s
[F1] OK
Key Press Function
>
The speed at which the dispensing tip travels when it moves through a Spline Node point.
Range: 0.1–500 (mm/s)
