Omron MicroHAWK V320-F User Manual

4-23
4 Setup
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
4-7 Configuration Database
4
4-7-6 Advanced Settings Configuration Database
Note: The primary way to enable the Configuration Database in the WebLink user interface is to open
the Advanced Settings dialog and increase the number of Active Indexes. An alternate option is to
use the Terminal and set the index count using the <K252> command. If there are no Active Indexes,
the Configuration Database view is hidden. Once they are available, either via Advanced Settings or

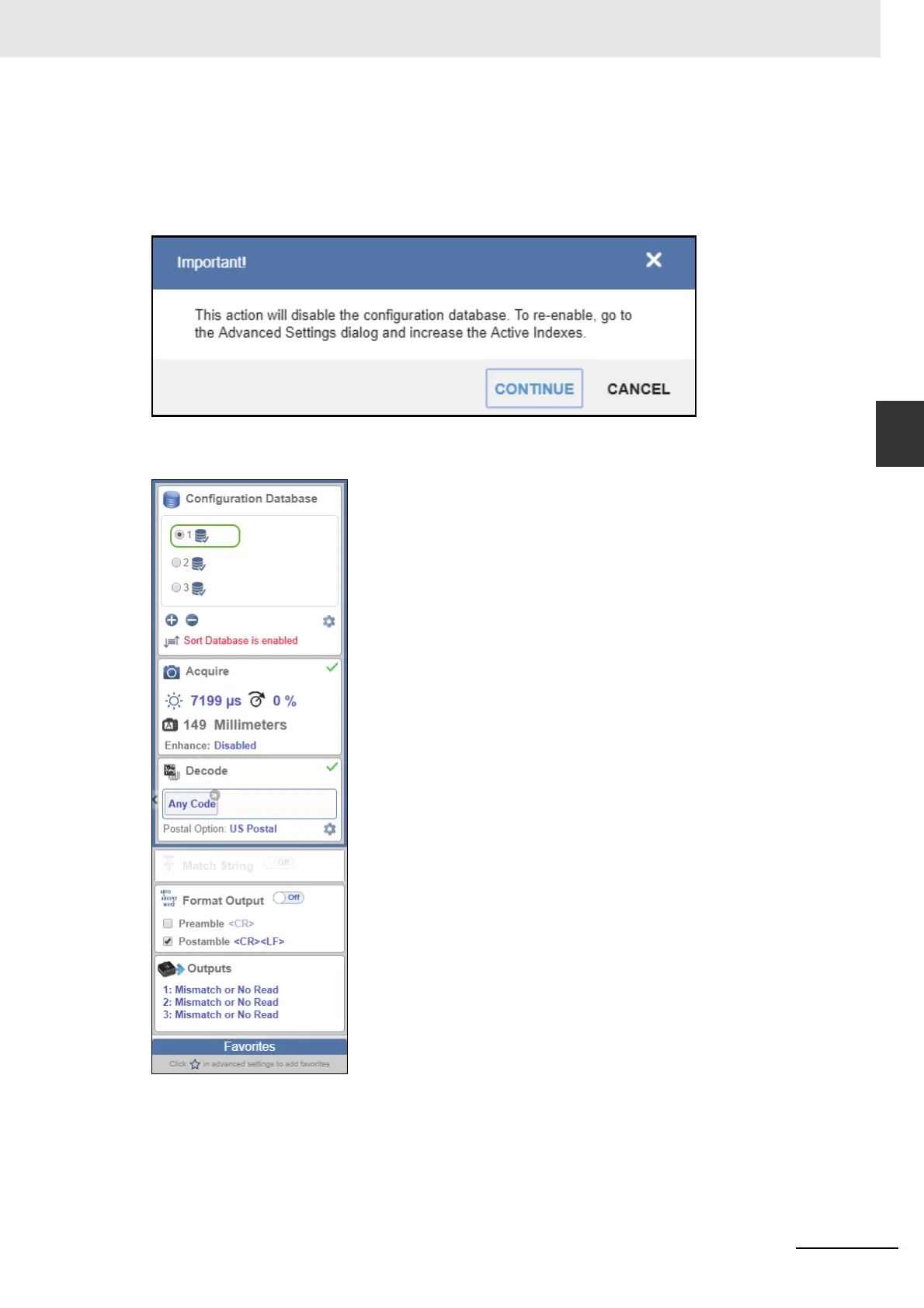

Terminal, the Configuration Database view will appear. If you remove the last index, a warning dialog
will appear:
The user interface shows which settings are affected by the Configuration Database using dark blue
highlighting around the Acquire and Decode steps.

Omron MicroHAWK V320-F Specifications

General

Brand	Omron
Model	MicroHAWK V320-F
Category	Barcode Reader
Language	English
