Appendices
B-4
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
B-3 MicroHAWK V420-F
5 VDC ± 5%, 600 mA at 5 VDC (typ.)

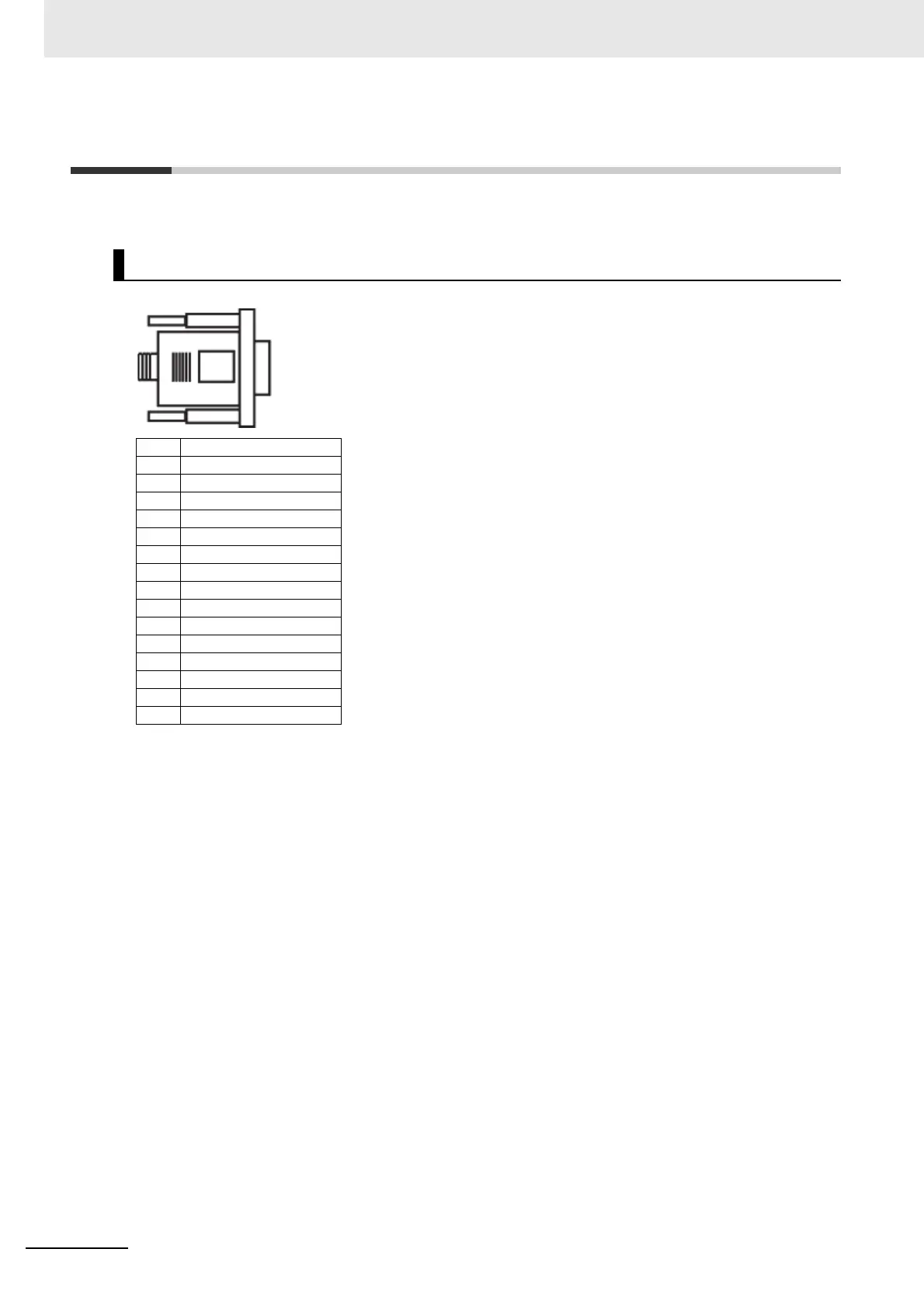

High-Density 15-Pin Dsub Socket
Pin Function
1 +5VDC
2 TX232
3 RX232
4 GND
5 D+
6 N/C
7 Output 1+
8 Default+
9 Trigger+
10 D–
11 Output 3+
12 New Master+
13 N/C
14 Output 2+
15 Vbus
Note: An accessory cable is
required between the V420-F’s
15-pin corner-exit cable and the
host’s USB port.
