B-5
Appendices
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
B
B-4 MicroHAWK V430-F
4.75 – 30 VDC; 200 mV p-p max ripple, 150 mA at 24 VDC (typ.)
Important: Mounting a reader to grounded conductive material may cause communication problems or
unreliable operation. If you need to mount the reader to a bracket or plate, be sure that a proper ground
connection is available. If a proper ground is not available, electrical isolation of the reader should be
performed. Using Omron Microscan’s Isolation Mounting Kit, P/N 98-9000064-01, will ensure that no
ground loop or other external electrical noise can occur through the reader.

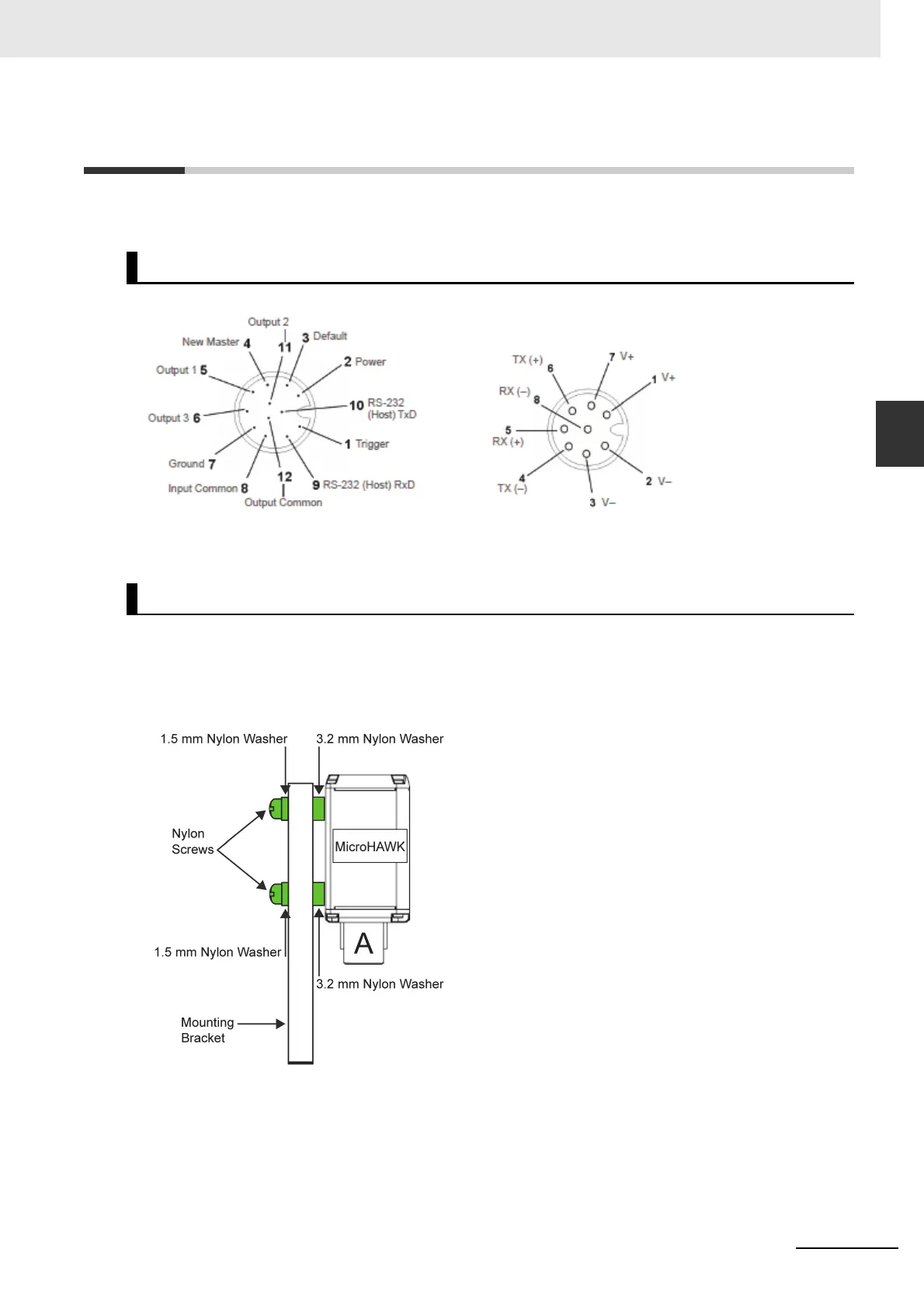

M12 Connectors
Grounding and Isolation
M12 12-pin Plug M12 8-pin Socket (Ethernet)
