2 Quick Start
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
2-2 MicroHAWK and WebLink
Quick Start
2
2-2-9 Configure Acquire Settings

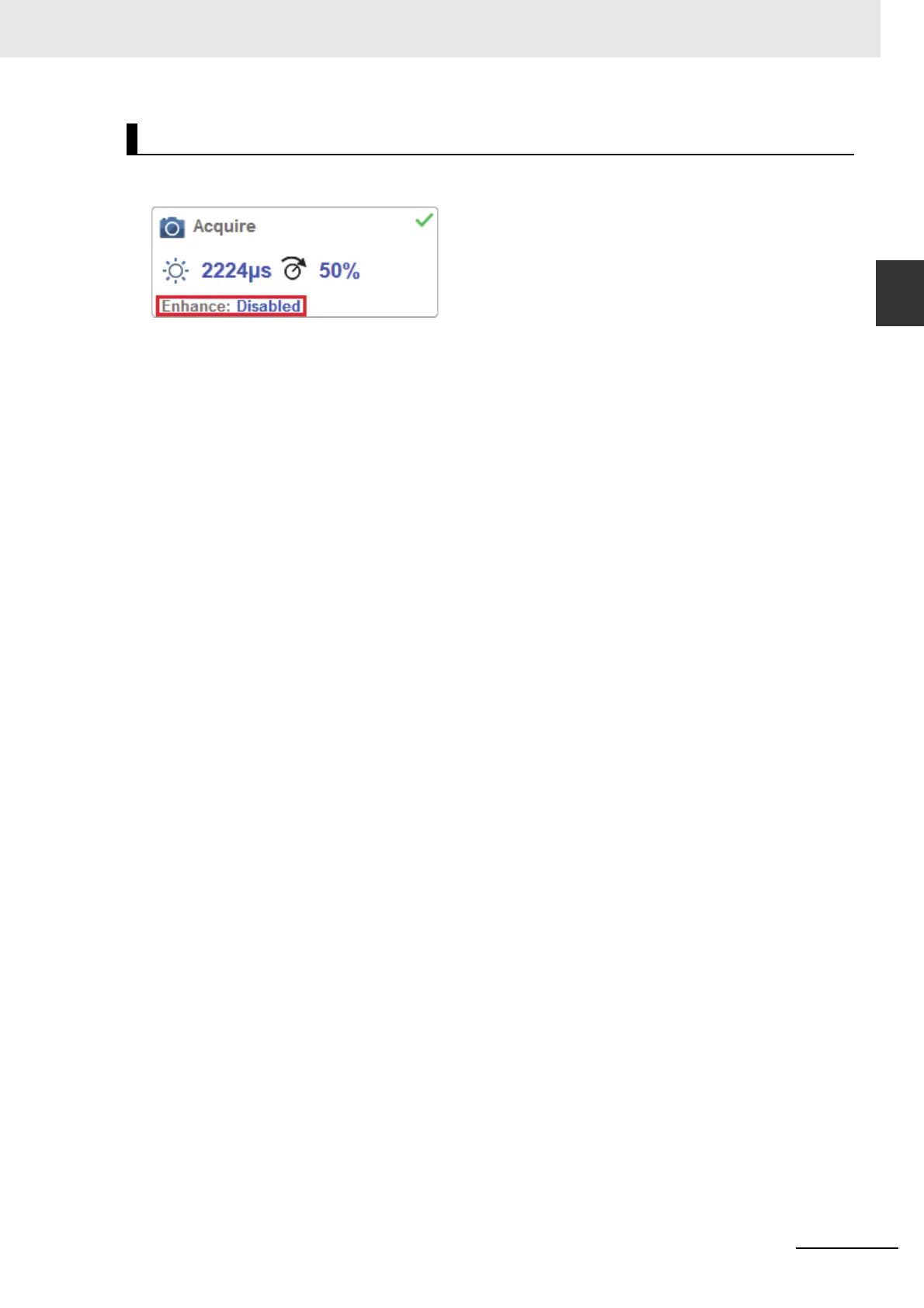

The Enhance dropdown menu at the bottom of the Acquire settings editor allows you to select the
method for processing captured images.
 Grow Dark
Grow Dark increases the dark cell size of a symbol. It is useful for increasing the dark cell size of a
dark-on-light Data Matrix symbol.
 Shrink Dark
Shrink Dark increases the light cell size of a symbol. It is useful for increasing the light cell size of a
light-on-dark Data Matrix symbol.
 Connect Dark
Connect Dark removes minor light defects of dark cells.
 Separate Dark
Separate Dark removes minor dark defects of light cells.
 Operator Size
The Operator Size dropdown menu determines the size of the area or “pixel neighborhood” in which the
enhance operation is being performed.
 Small
Small corresponds to an area of 3 pixels by 3 pixels.
 Medium
Medium corresponds to an area of 5 pixels by 5 pixels.
 Large
Large corresponds to an area of 7 pixels by 7 pixels.
Enhance
