Omron MicroHAWK V320-F User Manual

4-5
4 Setup
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
4-2 Acquire
4

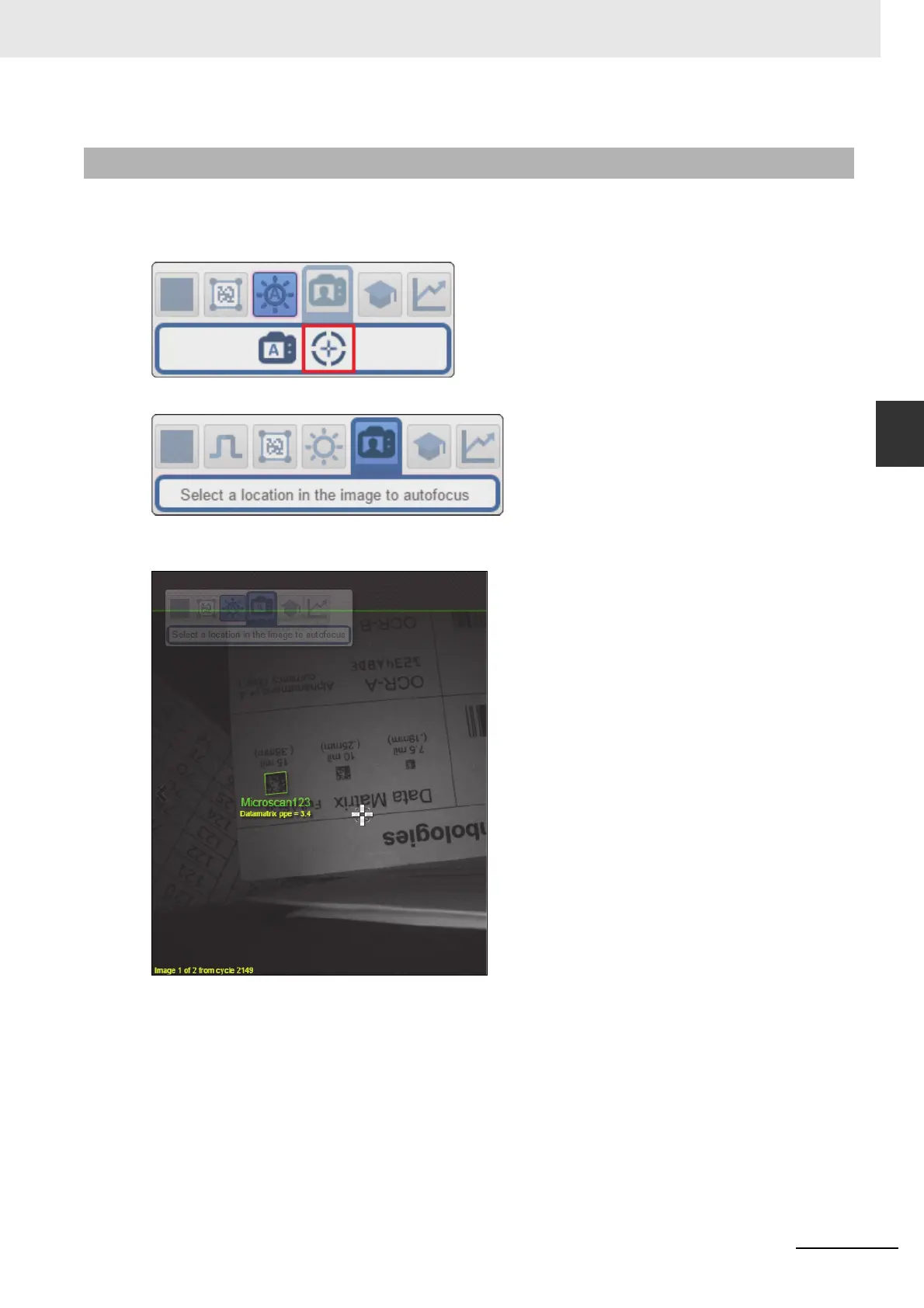

4-2-2 Spot Focus
If the camera is in Continuous mode or Continuous Auto (Continuous mode with Auto Photometry
enabled), you can perform a localized quick focus in the image.
If you click the focus button, the Autofocus and Spot Focus icons appear:
When you click the Spot Focus icon, the Select a location in the image to autofocus message appears.
The cursor transforms into crosshairs as shown in the example below. This allows you to select the
section of the image in which you want to perform a quick focus.
4-2-2 Spot Focus
Note: If you click the Autofocus
button to the left of the Spot Focus
button, the reader will switch from
Spot Focus to regular Autofocus
functionality. If the reader is in
Triggered mode, only the Spot
Focus icon will appear.
