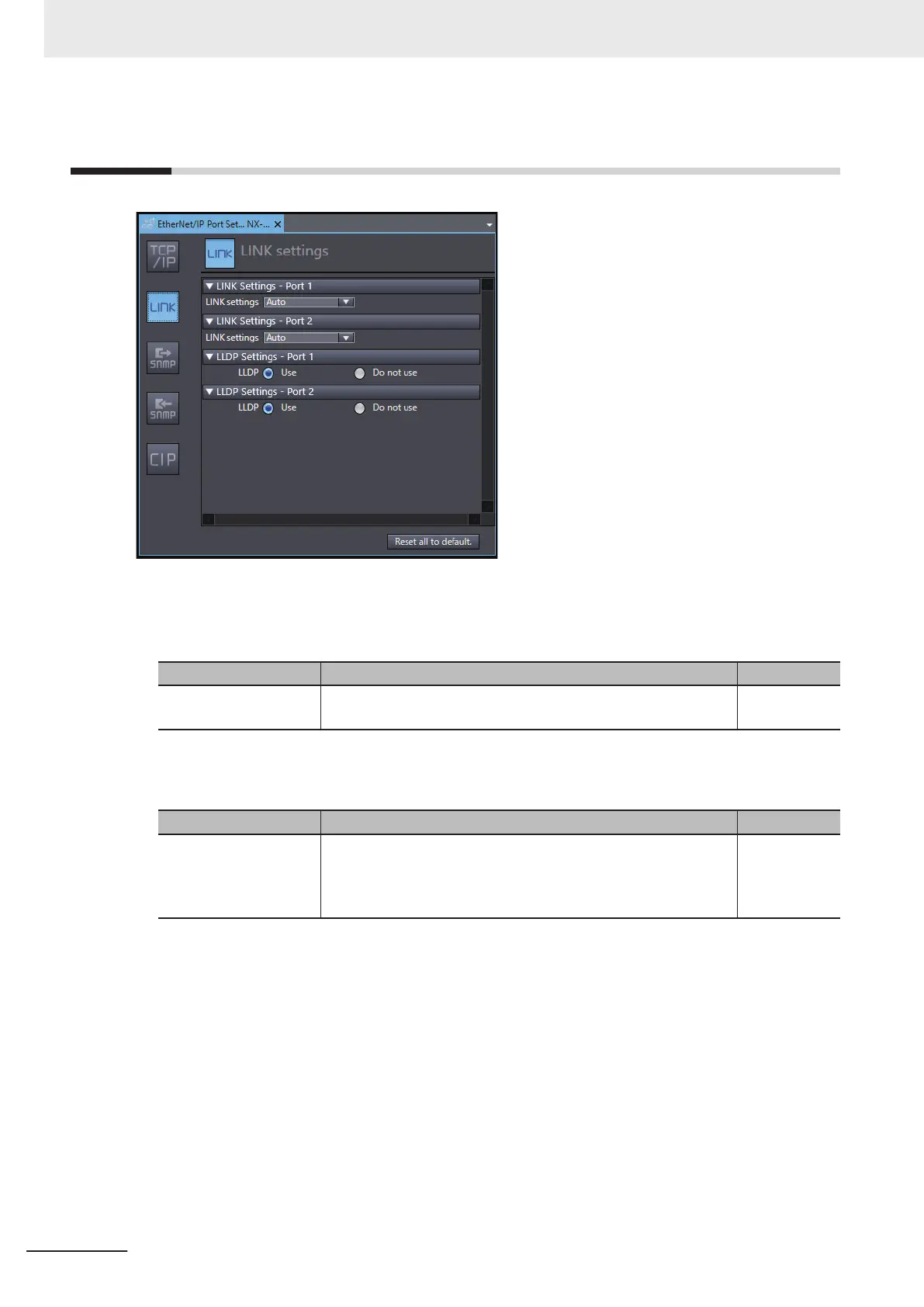

LINK Settings Display
l
Link Settings - Port 1 and Port 2
Set for each EtherNet/IP port.
Setting Description Default
LINK settings Set the baud rate for the EtherNet/IP ports.
• Auto
Auto
l
LLDP Settings - Port 1 and Port 2
Set for each EtherNet/IP port.
Setting Description Default
LLDP
*1
Select whether to use LLDP (Link Layer Discovery Protocol)
function.
• Use
• Do not use
Use
*1. When the LLDP function is used, the Controller can exchange various information such as identification
information with the network devices that are located within the range of physical communication. Infor-
mation on network devices can be obtained with the SNMP function.
7 Sysmac Studio Settings for the EtherNet/IP Port
7-10
NX-series EtherNet/IP Unit User's Manual (W627)

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
