9-2
Setting Tag Data Links
Additional Information
You can also use the Sysmac Studio to set the tag data links.
Refer to A-3 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections) on
page A-6 for details on setting the tag data links on the Sysmac Studio.
9-2-1
Starting the Network Configurator
Procedure
Tag data links are set from the Network Configurator. Use the following procedure to start the Network
Configurator.
l
Using the Windows Start Menu
To start the Network Configurator, select OMRON – Sysmac Studio – Network Configurator for
EtherNetIP – Network Configurator.
When the Network Configurator starts, the following window is displayed.

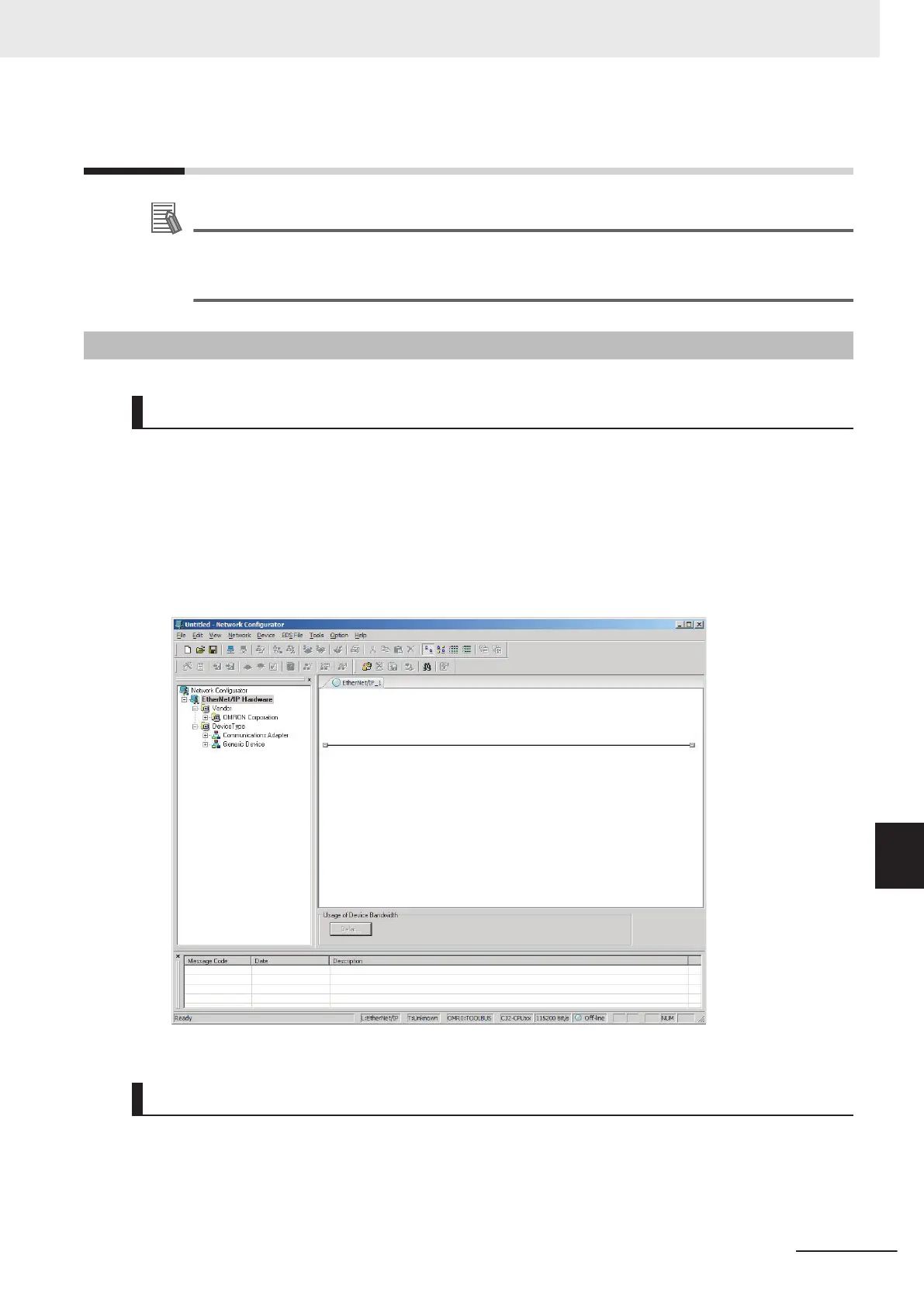

Main Window
The Main Window consists of a Hardware List and a Network Configuration Pane, as shown in the
following diagram.
9 Tag Data Link Functions
9-15
NX-series EtherNet/IP Unit User's Manual (W627)
9-2 Setting Tag Data Links
9
9-2-1 Starting the Network Configurator

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
