T

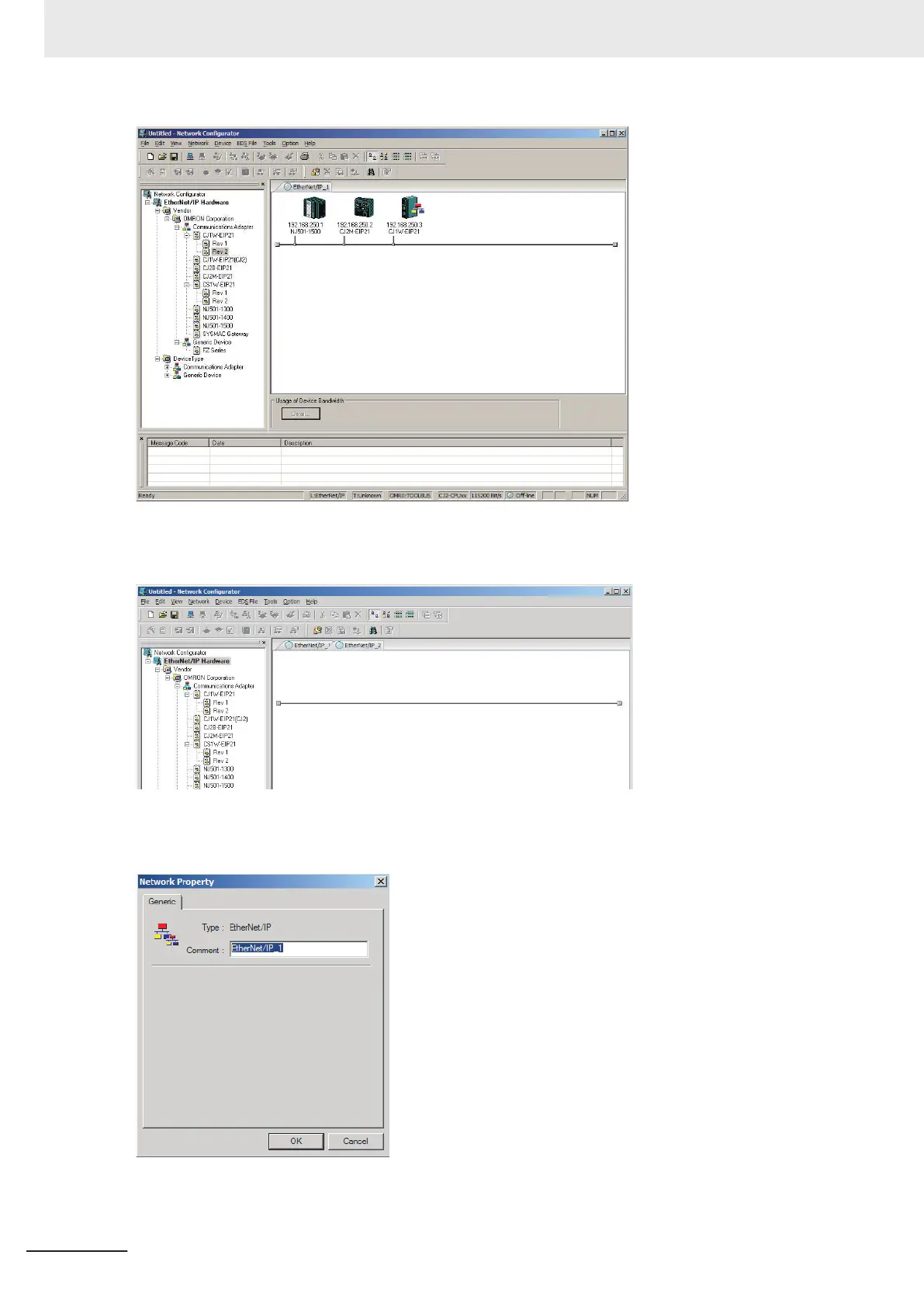

o manage two or more networks, you can select
Network
–
Add
. Y
ou can add a new Network Con-
figuration Pane.
T
o change the network name displayed in the Network T
ab Page, select
Network
–
Property
. Y
ou can
change the network name as set in the Comment Field of the Network Property Dialog Box.
9 T
ag Data Link Functions
9-16
NX-series EtherNet/IP Unit User's Manual (W627)
159
161
