MAC header IP header UDP header SNMP message
Variable length (1,472 bytes max.)
Version Community PDU
Item Set value
Version This value gives the SNMP version.
SNMPv1: 0
SNMPv2C: 1
Community Community name for verification
PDU This depends on the PDU type.
11-1-4

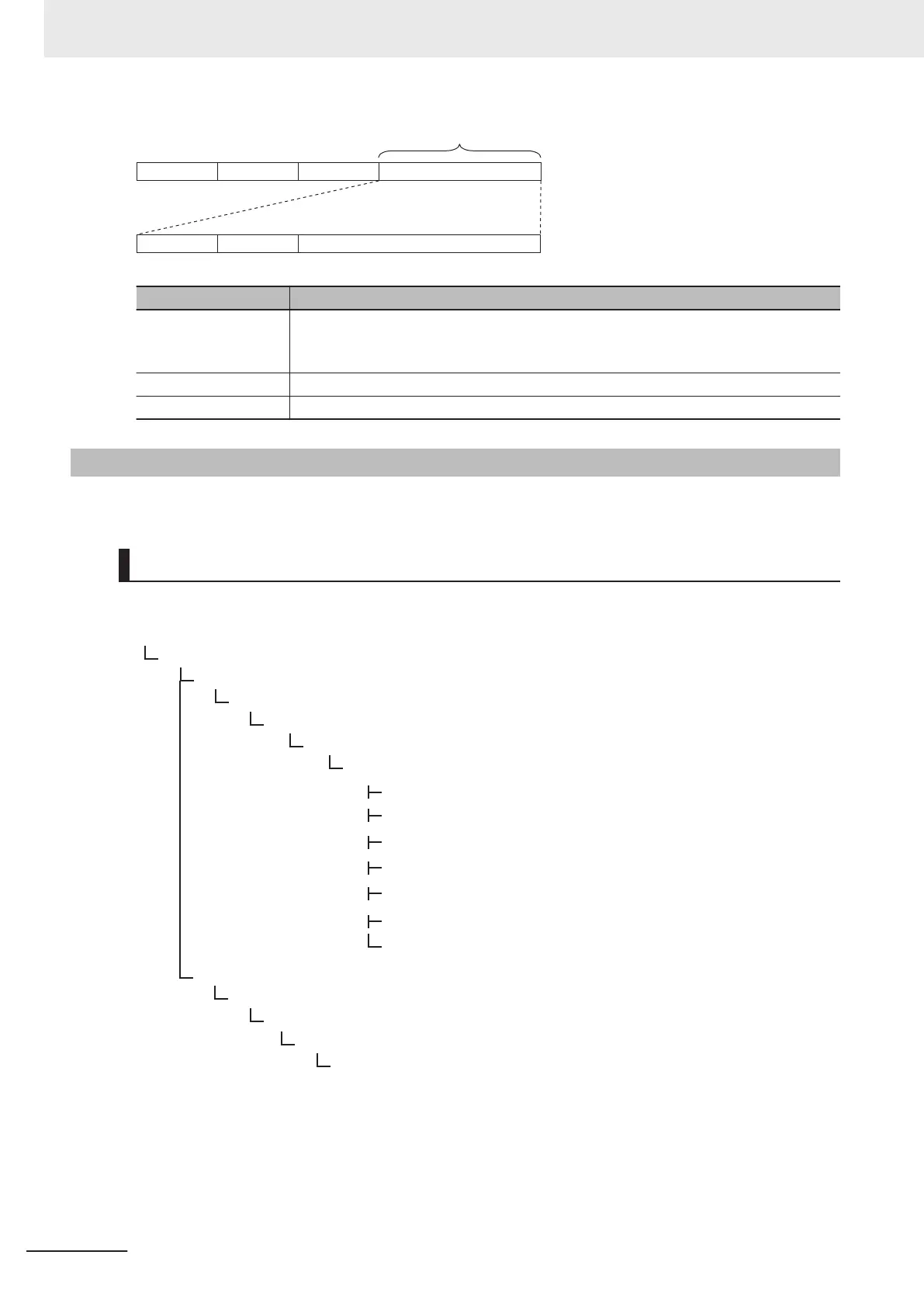

MIB Specifications
This section describes the specifications of the MIB that is supported by the EtherNet/IP port.
MIB System Diagram
The EtherNet/IP port MIB consists of the following tree structure.
root
iso (1)
org (3)
dod (6)
internet (1)
mgmt (2)
mib-2 (1)
snmp (11)
udp (7)
tcp (6)
icmp (5)
ip (4)
interface (2)
-system (1)
SNMP information
UDP information
TCP information
ICMP information
IP information
Interface information
Unit information
std(0)
iso8802
(8802)
ieee802dot1(1)
iso8802dot1mibs(1)
lldpMIB(2)
LLDP information
11 SNMP Agent
11-4
NX-series EtherNet/IP Unit User's Manual (W627)

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
