The EtherNet/IP port SNMP agent function supports SNMPv1 (RFC1157) and SNMPv2C (RFC1901).
Use the SNMPv1 or SNMPv2C protocol to manage the EtherNet/IP port with the SNMP manager. Y
ou
can also use both the SNMPv1 and SNMPv2C protocols together at the same time.

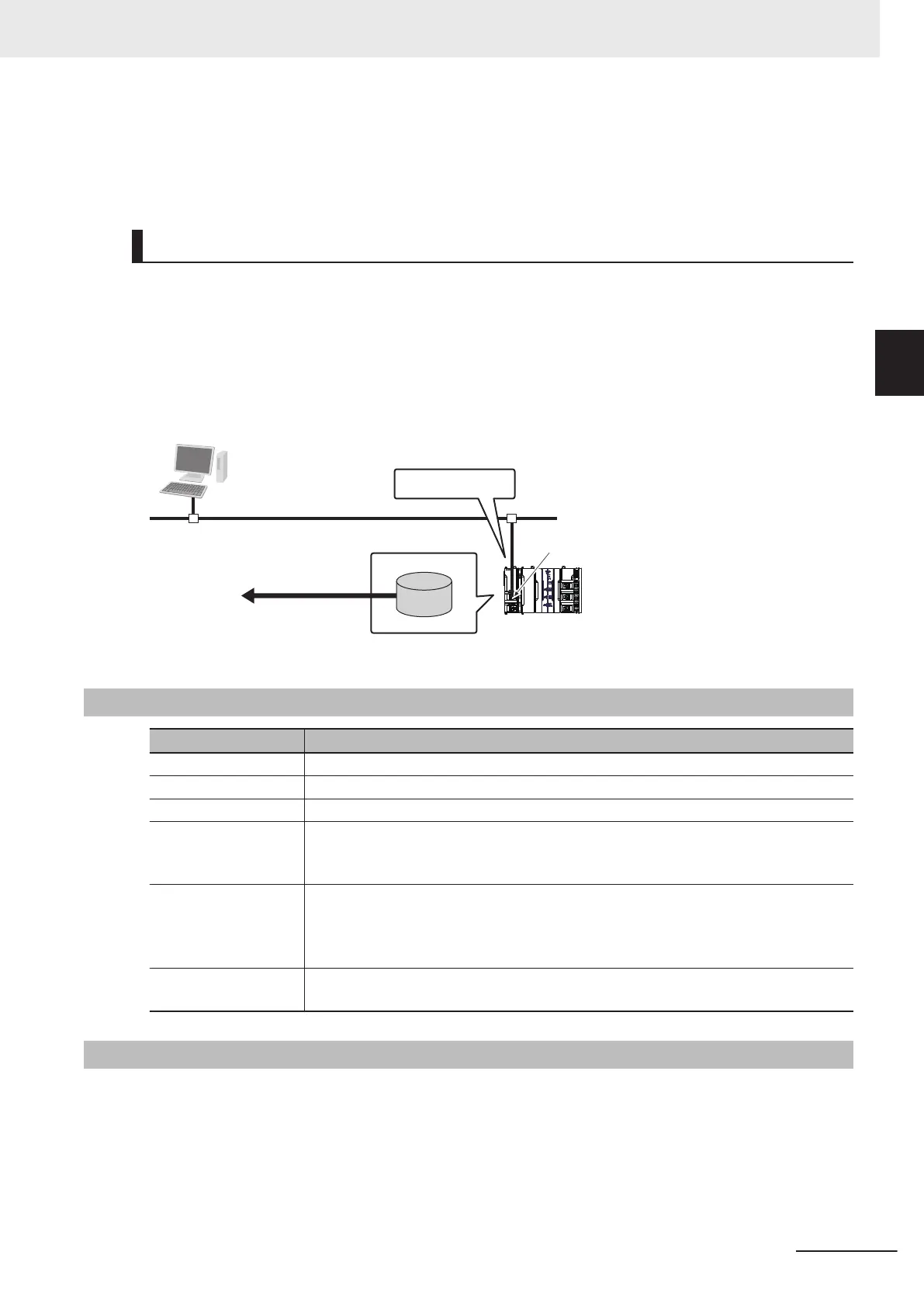

SNMP Traps
When a failure or some other specific problem occurs, a status report called a trap is sent.
This enables monitoring changes in status even if the SNMP manager does not monitor the
EtherNet/IP port periodically.
However
, traps use UDP. Therefore, you cannot check to see if the SNMP manager receives traps
from the EtherNet/IP port.
Thus, depending on the network status, some traps may not reach the SNMP manager.
POWER
PORT2
EtherNet/IP port
SN
MP manager
Trap
SNMP agent
MIB
Controller power supply
turned ON.
11-1-2
Specifications
Item Specification
Protocol SNMP
Agent SNMPv1, SNMPv2C
MIB MIB-II
Port No. SNMP agent: 161 (UDP)
SNMP trap: 162 (UDP)
These can be changed in the EtherNet/IP Port Settings from the Sysmac Studio.
Timing of SNMP trap
operation
Status reports are sent to the SNMP manager at the following times.
• When the Controller is turned ON
• When links are established
• When an SNMP agent fails to be authorized
Supported MIB com-
mands
GetRequest/GetNextRequest
11-1-3
SNMP Messages
The structure of SNMP messages is as follows:
11 SNMP Agent
11-3
NX-series EtherNet/IP Unit User's Manual (W627)
11-1 SNMP Agent
11
11-1-2 Specifications
