Checking Connections
You can check the consistency of connection parameters for network configuration files with device
parameters that were set with the Network Configurator or device parameters uploaded from the net-
work.
1 Select Check Connection
from the
Network Menu.

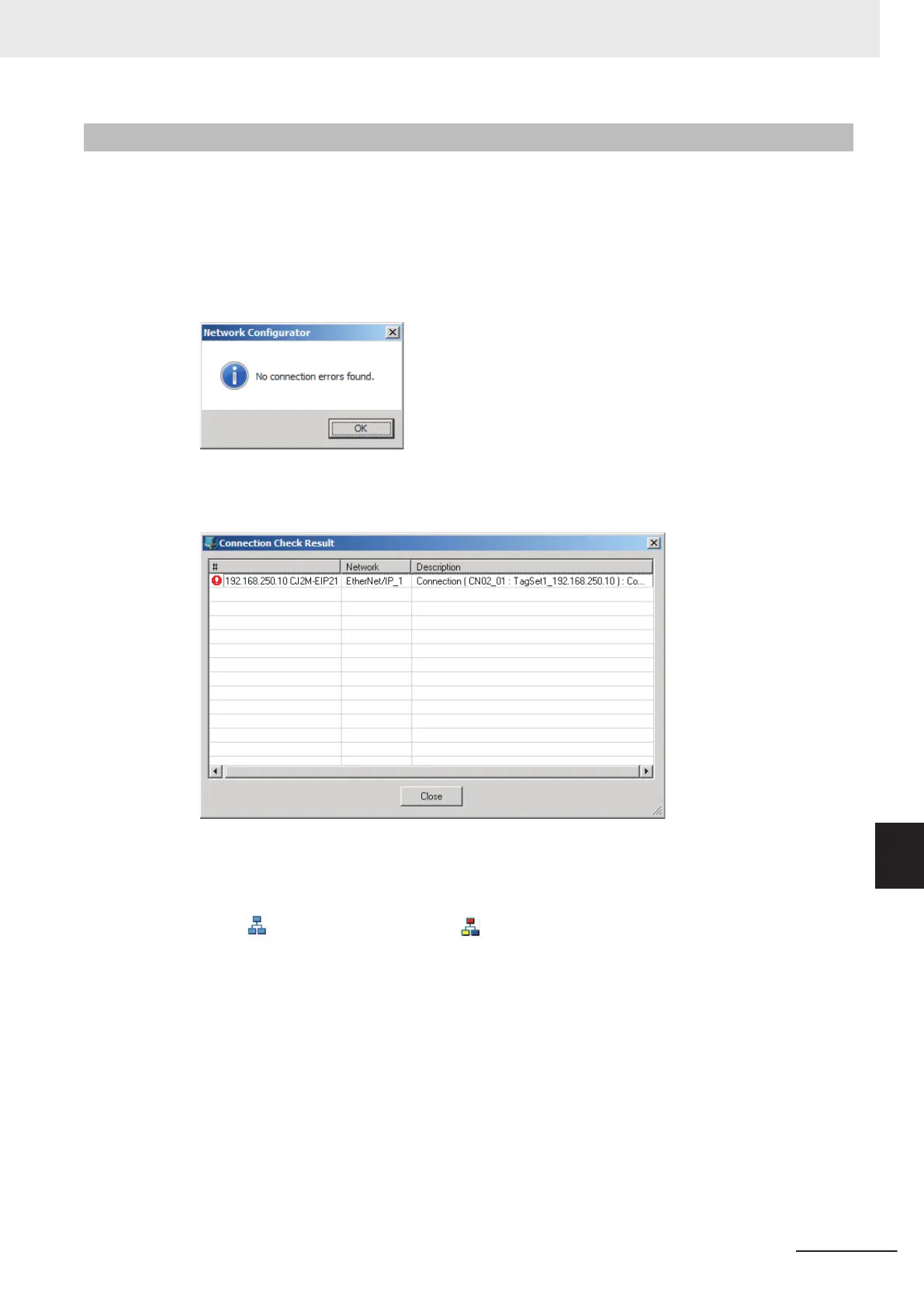

The following dialog box is displayed if parameters are normal.
The following dialog box is displayed if there are parameter errors. Check the displayed details
and review the settings.
If an inconsistency is found, open the originator’s Edit Device Parameter Dialog Box and click
the Connection Tab. The inconsistent connection in the Register Device List is displayed
with a icon (instead of the normal icon).
To change the connection setting and select a dif
ferent target variable, select the connection as
shown below and click the Edit Button.
9 Tag Data Link Functions
9-69
NX-series EtherNet/IP Unit User's Manual (W627)
9-2 Setting Tag Data Links
9
9-2-16 Checking Connections
