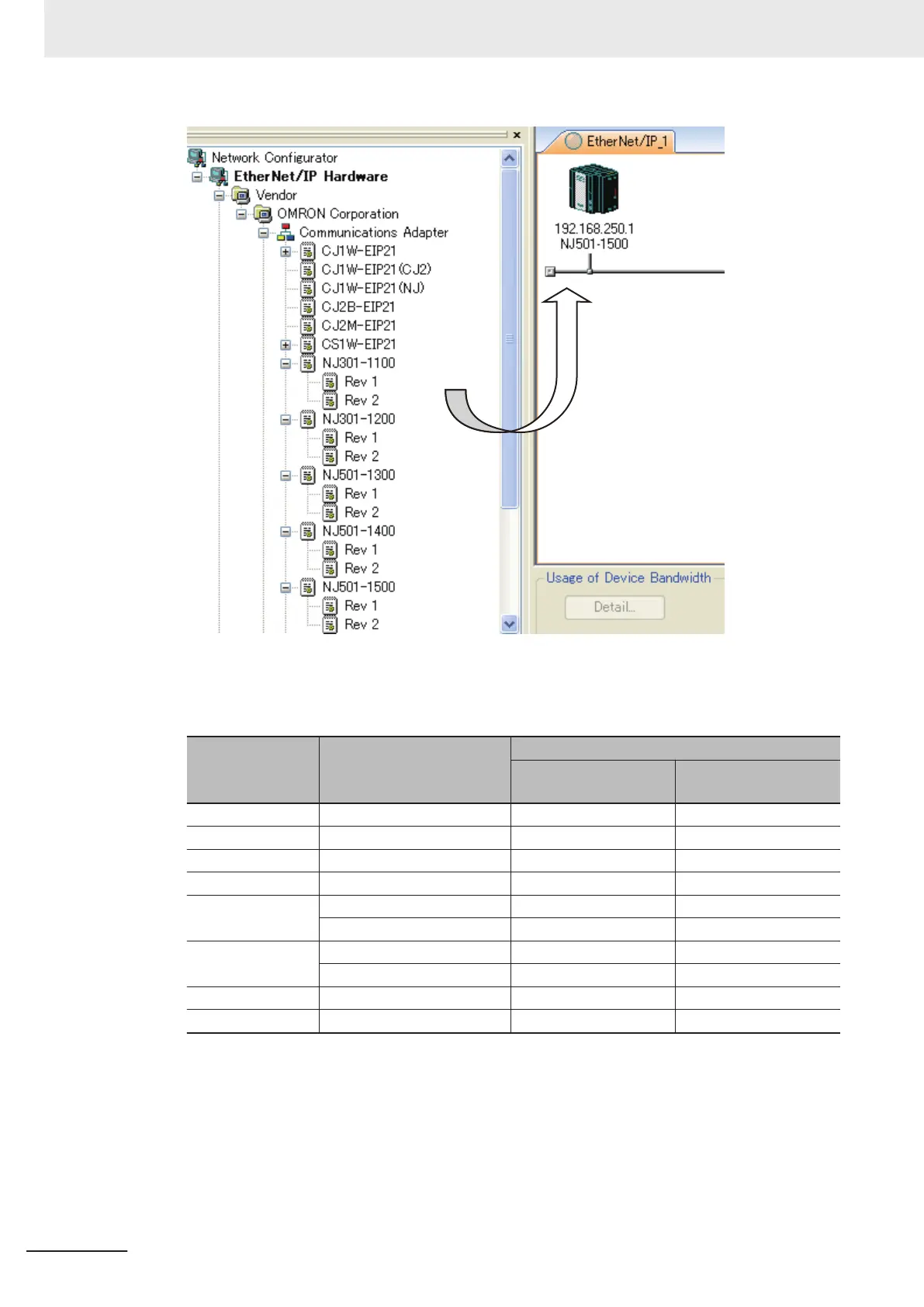

Drag icons from the
hardware list. Select
device icons with the
same major CIP
revision (Rev £).
The device names and major CIP revisions (Rev £) are displayed in the hardware list.
For the NJ/NX-series Controllers, device names of Units and major CIP revisions are as shown
in the following table.
Device name in
Hardware List
Unit version
CIP revisions
Major revision
Revision name in
Hardware List
NX701 Unit version 1.10 or later 2 None
NX502-££££
Unit version 1.60 or later 2 None
NX102-££££
Unit version 1.30 or later 2 None
NX1P2 Unit version 1.13 or later 2 None
NJ501-££££
Unit version 1.00 to 1.02 1 Rev1
Unit version 1.03 or later 2 Rev2
NJ301-££££
Unit version 1.01 or 1.02 1 Rev1
Unit version 1.03 or later 2 Rev2
NJ101 Unit version 1.10 or later 2 None
NX-EIP201 Unit version 1.00 or later 2 None
9 Tag Data Link Functions
9-18
NX-series EtherNet/IP Unit User's Manual (W627)
