Omron NX Series User Manual

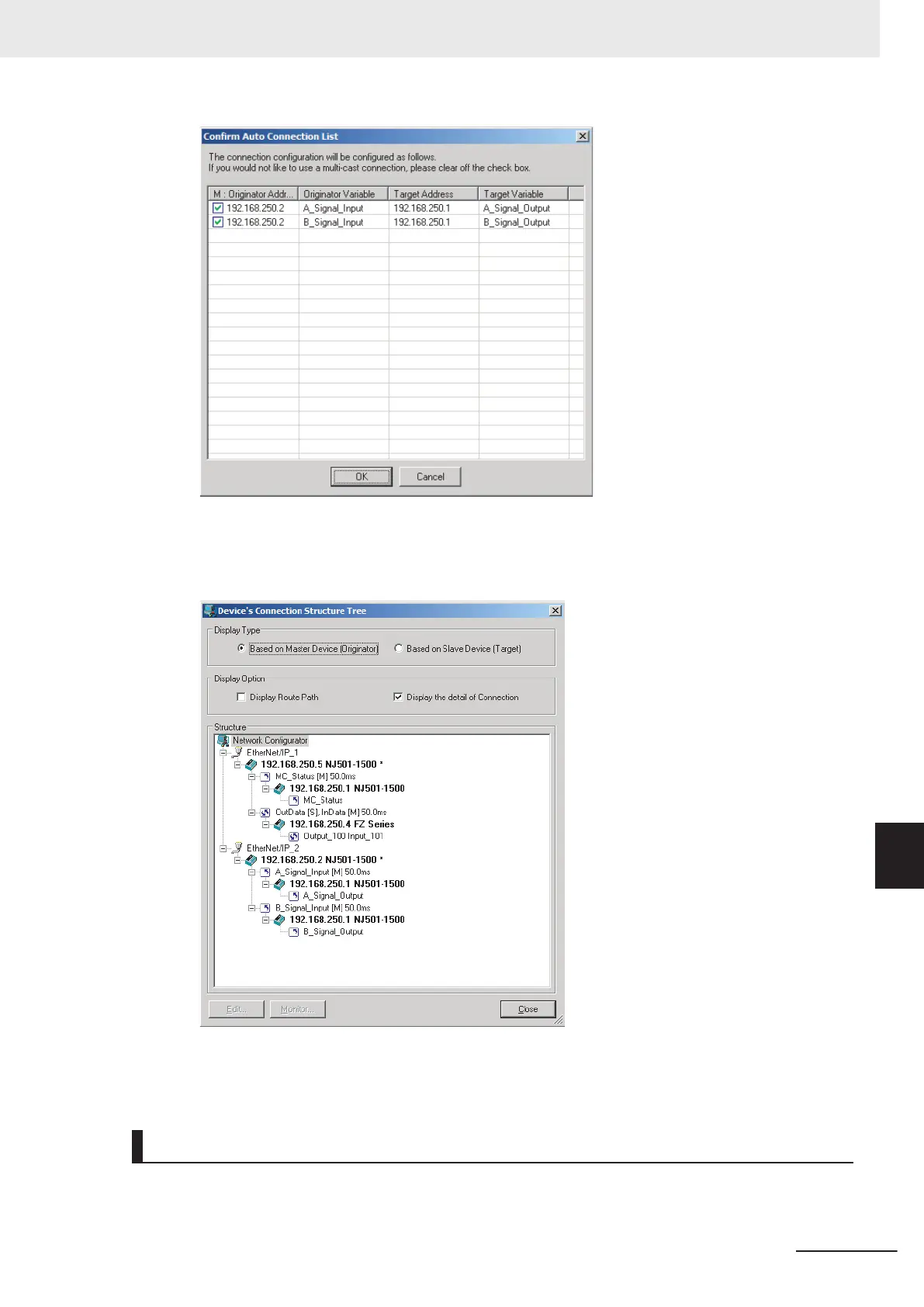

Click the OK Button. Processing for automatic setting is started.
4 A device connection structure tree is displayed when processing is completed.
5 Use the device connection structure tree to change the RPI and timeout settings if necessary.
Device Connection Structure Tree
Connection settings can be displayed on the network configuration.
Select View Device’
s Connection Structure Tree from the Network Menu.
9 Tag Data Link Functions
9-41
NX-series EtherNet/IP Unit User's Manual (W627)
9-2 Setting Tag Data Links
9
9-2-5 Connection Settings

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
