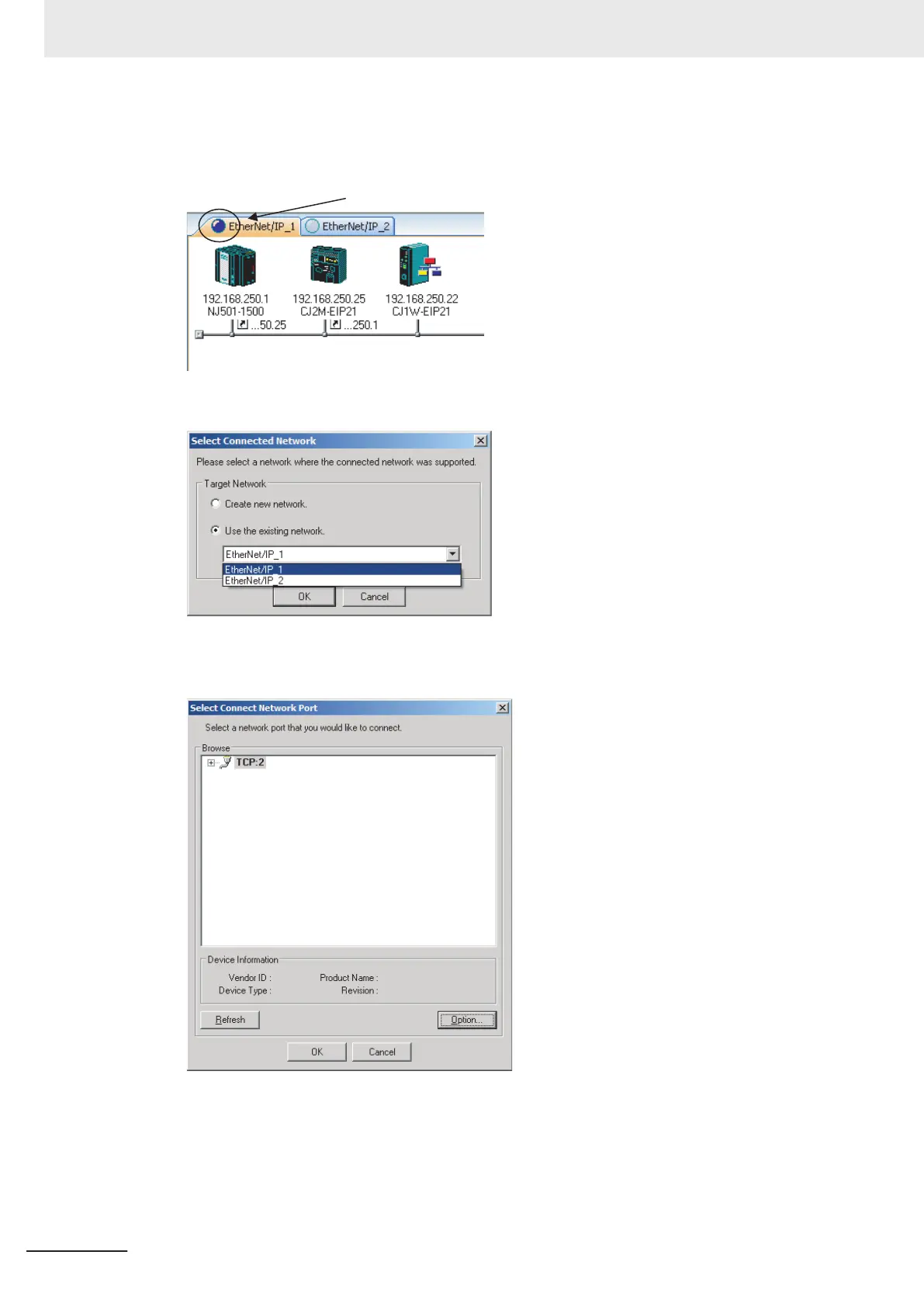

The network connection icon is displayed in blue on the Network Tab Page in which the Net-
work Configurator is connected.
Network connection icon
Select Network - Change Connect Network to switch the connected network.
4 The following dialog box is displayed.
5 Click the OK Button.
Select the network to connect to.
9 Tag Data Link Functions
9-50
NX-series EtherNet/IP Unit User's Manual (W627)

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
