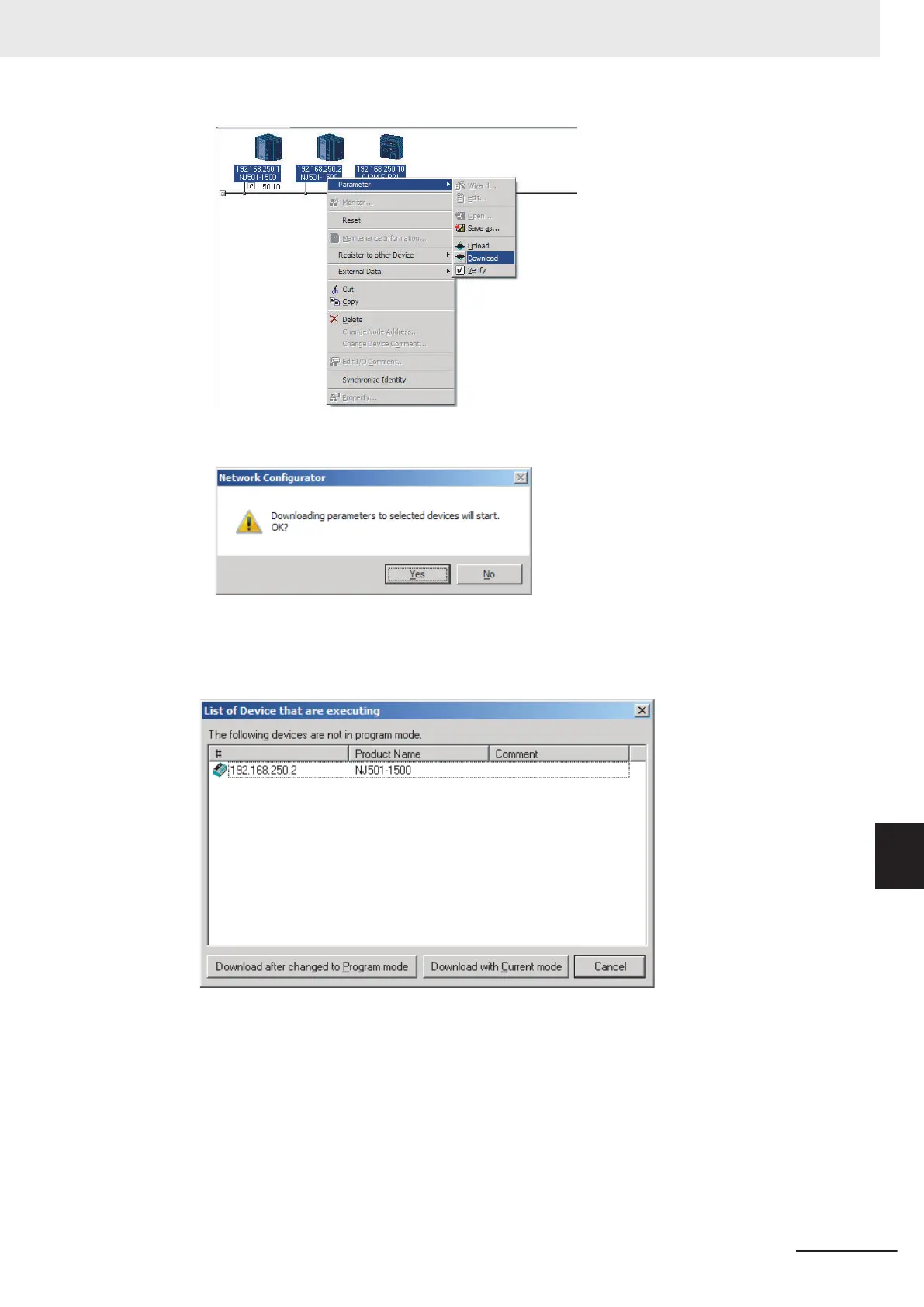

The following dialog box is displayed.
3 Click the Yes Button to download the tag data link parameters to the EtherNet/ IP Unit.
The following dialog box is displayed if any of the CPU Units is not in PROGRAM mode.
If the Download after changed to Program mode Button is clicked, all CPU Units are
changed to PROGRAM mode and the parameters are downloaded. Confirm safety for all con-
trolled equipment before you change the CPU Units to PROGRAM mode. Y
ou can restore the
operating modes after the parameters are downloaded.
Y
ou can click the Download with Current mode Button to download the parameters even
when one or more CPU Units is in RUN mode.
During the download, the following progress indicator is displayed to show the progress of the
download.
9 Tag Data Link Functions
9-53
NX-series EtherNet/IP Unit User's Manual (W627)
9-2 Setting Tag Data Links
9
9-2-9 Downloading Tag Data Link Parameters
