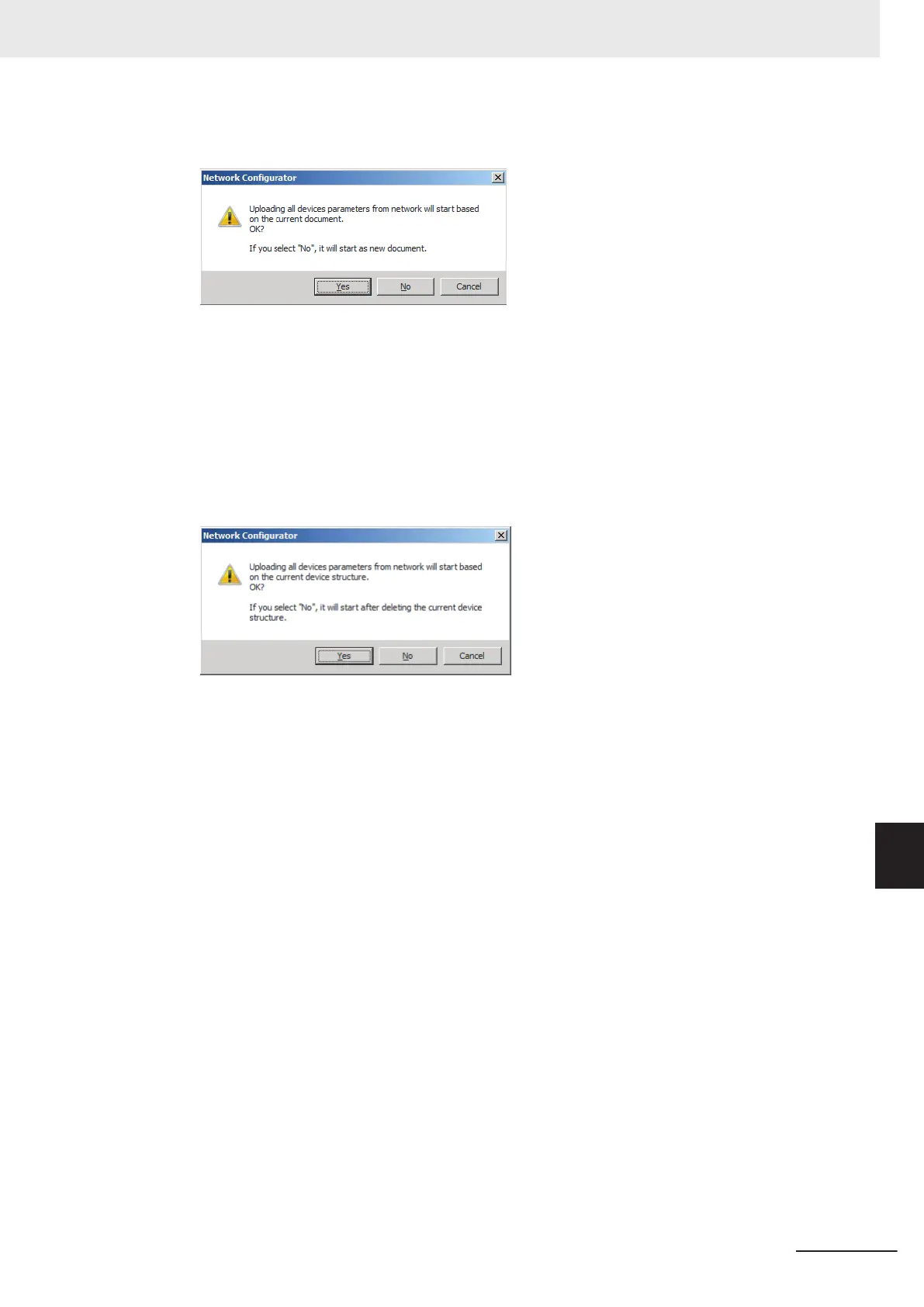

2 The following dialog box is displayed.
• Clicking the Y
es
Button:
The tag data link parameters in the current project are uploaded.
• Clicking the No Button:
You open a new project to upload the tag data link parameters. The current project is closed.
• Clicking the Cancel Button:
The upload operation is canceled. The upload is not performed.
3 If you click the Yes
Button in step 2, the following dialog box is displayed.
• Clicking the Yes Button:
Parameters are uploaded only from the devices registered in the Network Configuration
Pane. Parameters are not uploaded from devices that are not registered in the Network Con-
figuration Pane.
• Clicking the No Button:
Performing a Batch Upload over the Network
Parameters are uploaded from all devices on the network.
The current Network Configuration Information will be lost.
The following dialog box will be displayed. Select the devices for which to upload parameters
and click the OK Button.
9 Tag Data Link Functions
9-55
NX-series EtherNet/IP Unit User's Manual (W627)
9-2 Setting Tag Data Links
9
9-2-10 Uploading Tag Data Link Parameters

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
