Omron NX Series User Manual

Name Data type
Initial
value
Comment
SettingTrigger BOOL --- Parameter setting trigger
Done BOOL --- Done
Busy BOOL --- Executing
Error BOOL --- Error
TargetNodeIPAdr ARRAY[0..3] OF BYTE {0,0,0,0} Target node IP address
l
Algorithm
Set
Reset1
RS
Q1
ChangeTrigger
Done
Error
Busy
resetKeep_instance
SettingTrigger
(* Execution Conditions Check *)
EN
In
MOVE
ENO
Out
SettingTrigger
TargetNodeIPAdr[0]
(* Parameter Settings *)
16#C0
EN
In
MOVE
ENO
Out
TargetNodeIPAdr[1]
16#A8
EN
In
MOVE
ENO
Out
TargetNodeIPAdr[2]
16#FA
EN
In
MOVE
ENO
Out
TargetNodeIPAdr[3]
16#0A

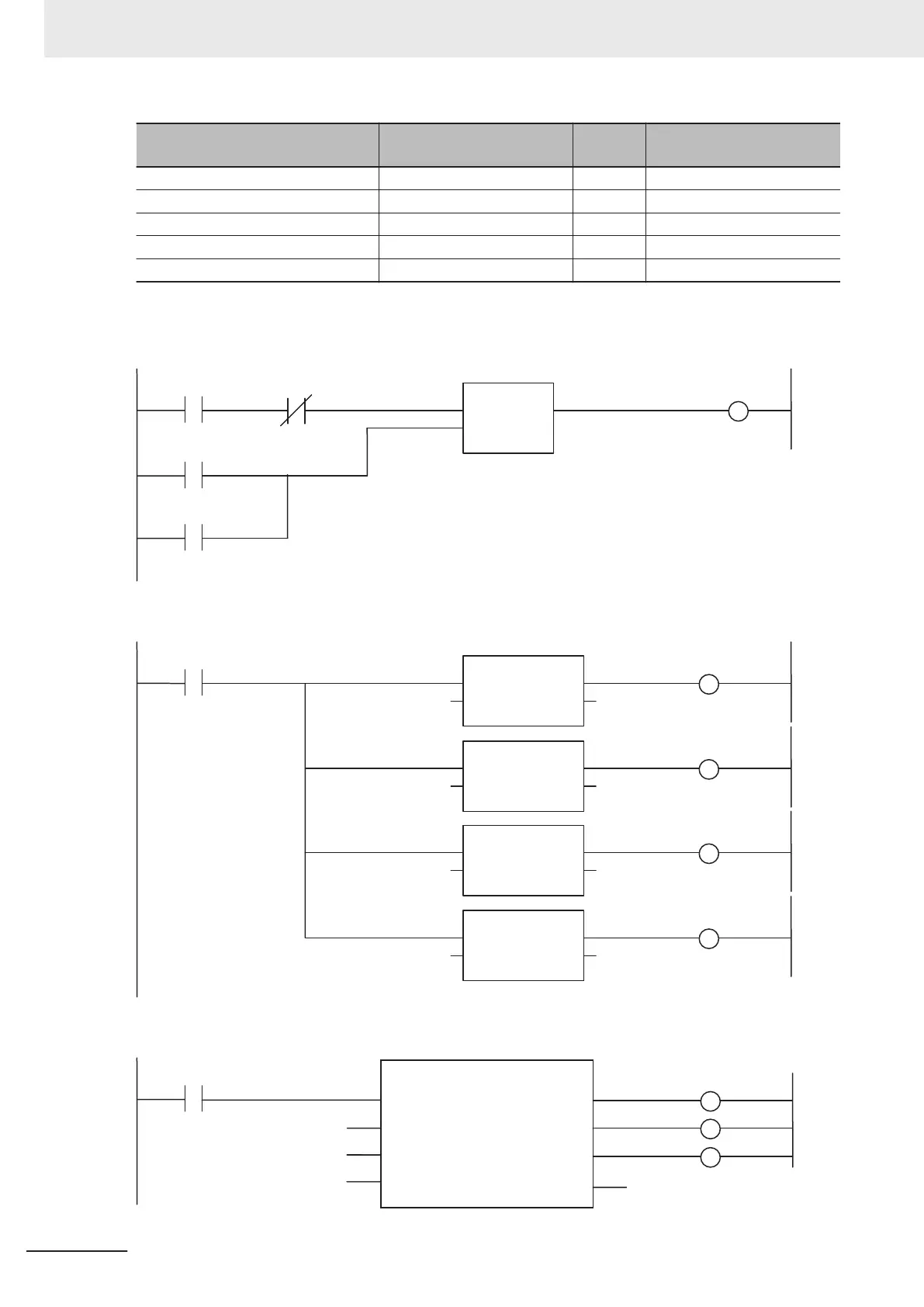

TDLinkStartConnection
Bus
y
Execute
Done
Error
ErrorID
UnitProxy UnitProxy
1
PortNo
TargetNodeIPAdr TargetNodeIPAdr
TDLinkStartConnention_instance
Done
Busy
Error
ChangeTrigger
(* Tag Data Link Connection Start *)
13 Instructions Specific to NX-series EtherNet/IP Units
13-6
NX-series EtherNet/IP Unit User's Manual (W627)
